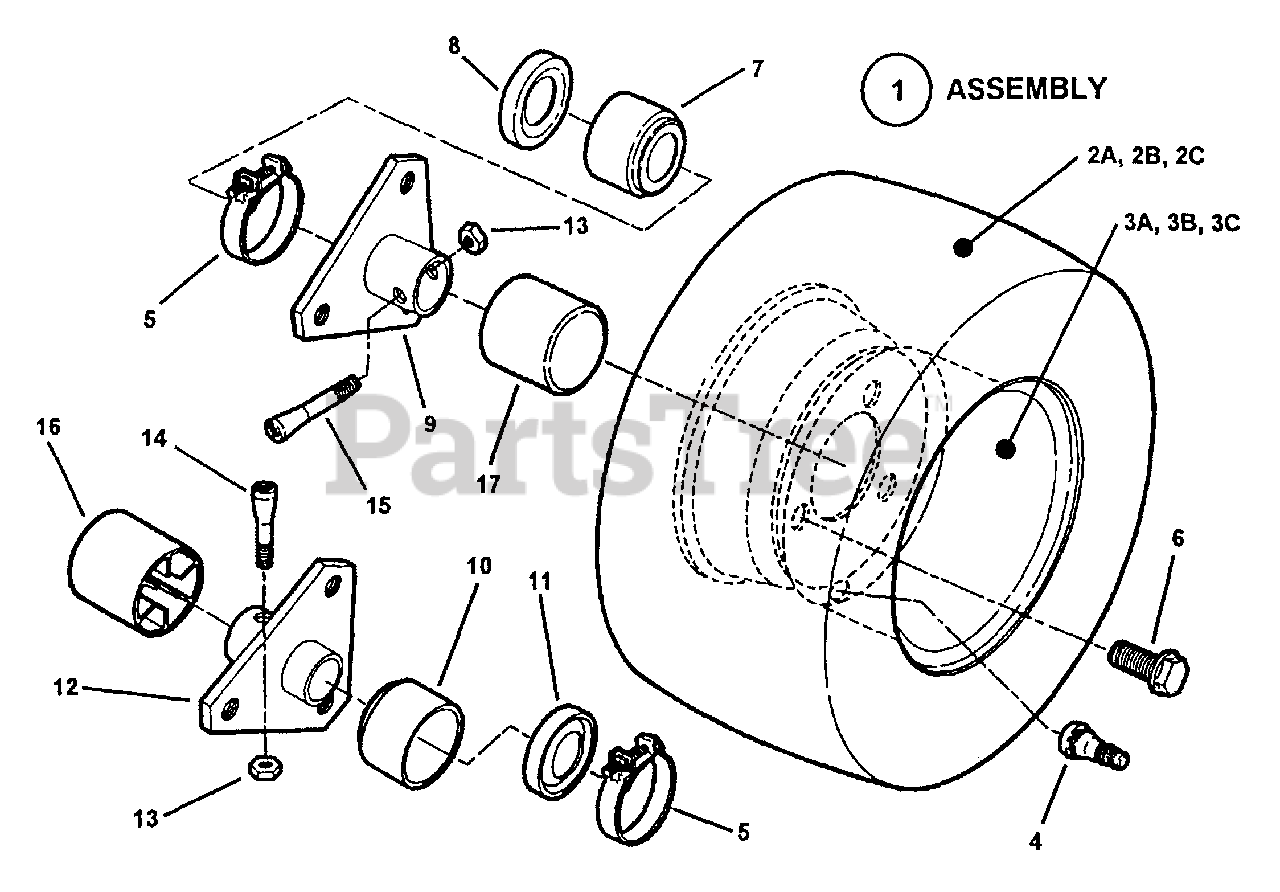

M 300921B (84578) - Snapper 30" Rear-Engine Riding Mower, 9hp Wheels-Rear Parts Diagram

30" Rear-Engine Riding Mower, 9hp

Wheels-Rear Parts Diagram

  • Title

1

Snapper 7052270

ASSEMBLY, Rear Tire & Rim
(Superseded to 7052270YP)

Note: (Includes Items 2A, 3A & 4)

$207.99

$

In Stock, only 1 left!

0

1

Snapper 7052269

ASSEMBLY, Rear Tire & Rim
(Superseded to 7052269YP)

Note: (Includes Items 2B, 3B & 4)

$152.99

$

In Stock, only 2 left!

0

1

Snapper 7058951

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058951YP)

Note: Was 58952 (Includes 2C, 3C & 4)

$186.99

$

Usually ships in 2-12 days

0

2A

Snapper 7046245

TIRE, Wide, 16/6.50 x 8 Turf
(Superseded to 7073584YP)

Note: Was 15968

$170.99

$

Usually ships in 2-12 days

0

2B

Snapper 7023889

TIRE, 4.80/4.00 Turf Saver
(Superseded to 7023889YP)

Note: Accepts part number 10525 Tube, 16-4.80 (Optional)

$67.99

$

Usually ships in 2-12 days

0

2C

Snapper 7073585

TIRE, 16 x 6.50-8 Carlisle

$

$

Not available

3A

Snapper 7012163

RIM, Wide
(Superseded to 7012163YP)

Note: Was 17147 (For 16/6.50 x 8 Tire)

$121.99

$

Usually ships in 2-12 days

0

3B

Snapper 7017145

RIM, 4.80/4.00 x 8, 3 Lug
(Superseded to 7017145YP)

$134.99

$

Usually ships in 2-12 days

0

3C

Snapper 7073589

RIM, 8 x 5.375, Carlisle

$

$

Not available

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7012332

CLAMP
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7031732

CAP, Seal (Right Hand)
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

8

Snapper 7011817

SEAL, Oil (Right Hand)
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7040433

HUB, Rear Wheel (Right Hand)
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 12

0

10

Snapper 7031732

CAP, Seal L.H. 3/4"
(Superseded to 7031732YP)

Note: Was 35918

$6.49

$

In Stock, Qty 20+

0

11

Snapper 7014662

SEAL, Oil (Left Hand)
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

12

Snapper 7040434

HUB, Rear Wheel (Left Hand)
(Superseded to 7040434YP)

$

$

Not available

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

16

Snapper 7023522

CAP, Hub (Left Hand)
(Superseded to 7023522YP)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7023895

CAP, Hub (Right Hand)
(Superseded to 7023895YP)

$6.99

$

In Stock, only 4 left!

0
