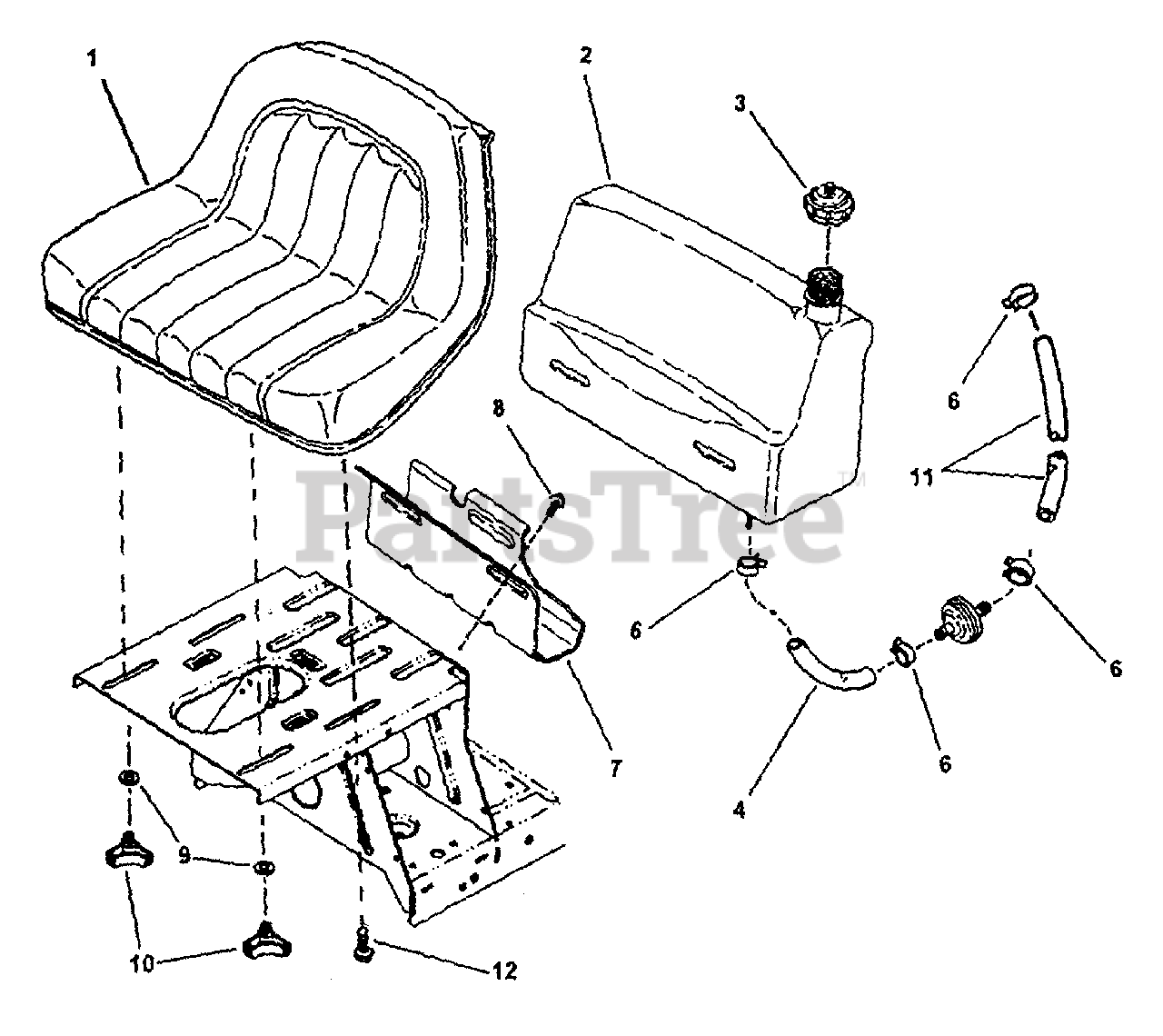

M 300921B (84578) - Snapper 30" Rear-Engine Riding Mower, 9hp Fuel Tank & Operators Seat Parts Diagram

30" Rear-Engine Riding Mower, 9hp

Fuel Tank & Operators Seat Parts Diagram

  • Title

1

Snapper 7028650

SEAT, Operator
(Superseded to 7028650YP)

Note: Was 29724 (Series 17)

$262.99

$

Usually ships in 2-12 days

0

Snapper 7028650

SEAT, Operator
(Superseded to 7028650YP)

Note: (Series 19)

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank
(Superseded to 7051905YP)

Note: (Includes Item 3)

$201.99

$

In Stock, only 2 left!

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 4 left!

0

4

Snapper 7076272

HOSE, Fuel (8-1/2" Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

?5

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

8

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7013849

SPACER, 21/64"
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7023191

KNOB, 3-Prong Seat
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

11

HOSE, Fuel (3-1/2" Long)

$

$

Not available

12

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0
