M 281019BE (84319) - Snapper 28" Rear-Engine Riding Mower, 10hp Spindle (Series 19) Parts Diagram

28" Rear-Engine Riding Mower, 10hp

Spindle (Series 19) Parts Diagram

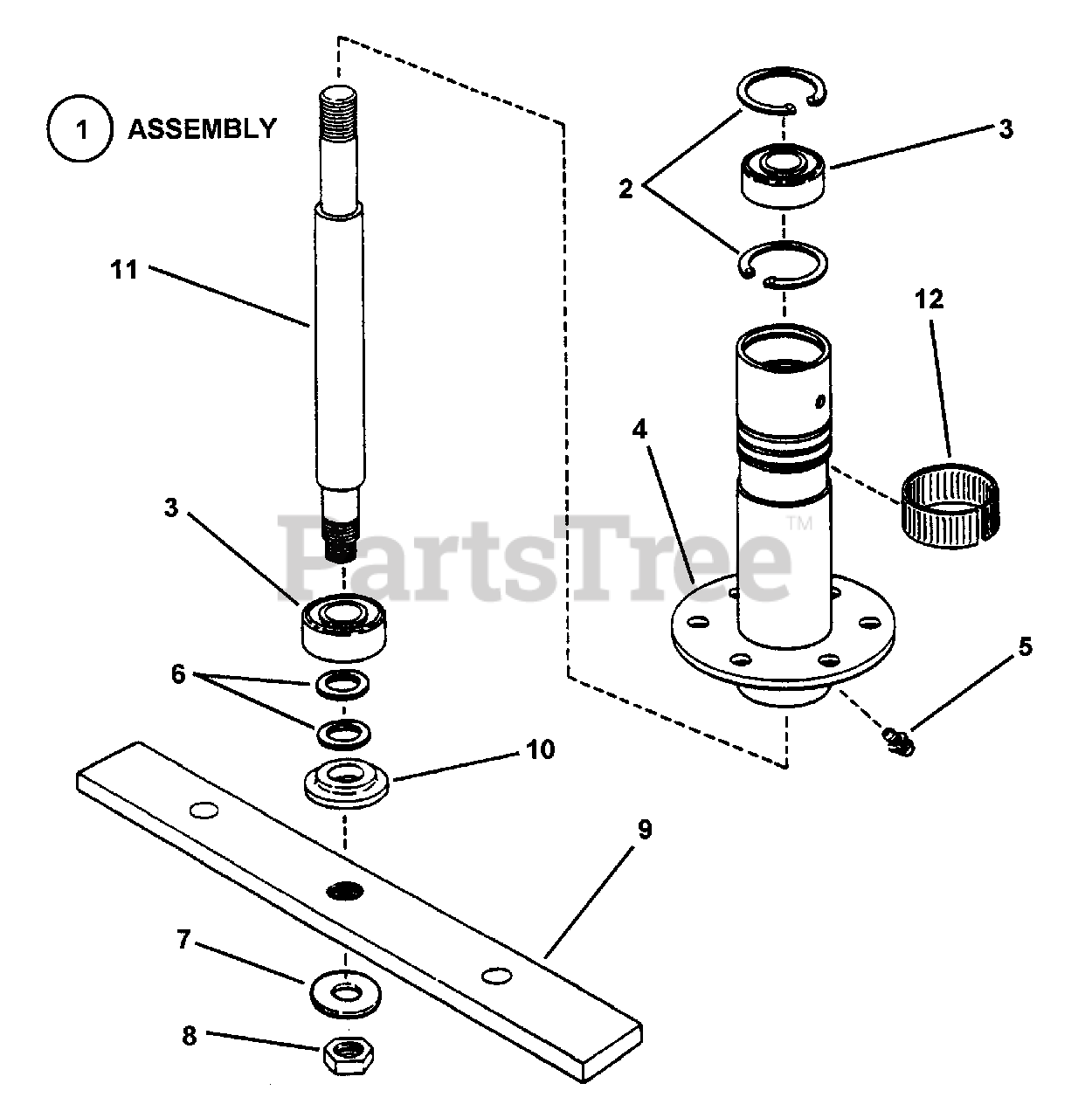

  • Title

1

Snapper 7058049

ASSEMBLY, Spindle Housing
(Superseded to 7600138YP)

Note: (Includes Items 2 Thru 11)

$148.99

$

In Stock, Qty 18

0

2

Snapper 7012491

RING, 1.85" Internal Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7050696

WELDMENT, Spindle Housing
(Superseded to 7040460BMYP)

Note: Was 40460

$63.99

$

In Stock, Qty 9

0

5

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7010935

WASHER, 49/64" Shim
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7044782

SPACER, Blade Centering
(Superseded to 7044782YP)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7090356

NUT, 5/8-18 Hex Center Jam Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7031184

HOLDER, Blade
(Superseded to 7031184BMYP)

$70.99

$

In Stock, only 1 left!

0

10

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

11

Snapper 7044785

SPINDLE, Shaft (10.237" Long)
(Superseded to 7044785YP)

$40.99

$

In Stock, Qty 20+

0

12

Snapper 7012670

RING, 2" Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

Snapper 7050696

SPINDLE HOUSING, Assembly
(Superseded to 7040460BMYP)

Note: Includes items #4 and 5.

$63.99

$

In Stock, Qty 9

0
