M 280921B (84577) - Snapper 28" Rear-Engine Riding Mower, 9hp Smooth Clutch Assembly Parts Diagram

28" Rear-Engine Riding Mower, 9hp

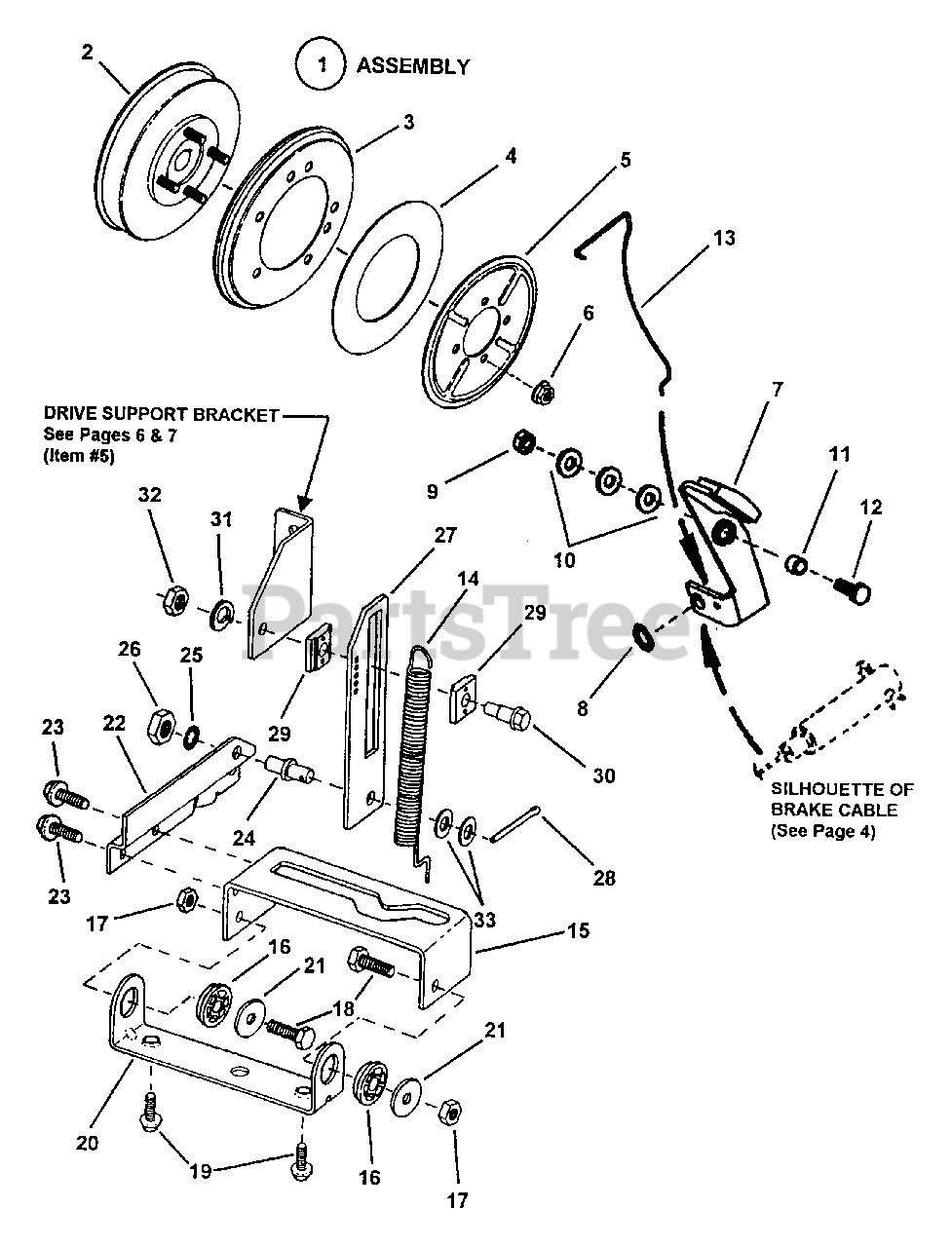

Smooth Clutch Assembly Parts Diagram

  • Title

1

Snapper 7053114

ASSEMBLY, Smooth Clutch
(Superseded to 7600208YP)

Note: (Includes Items 2 Thru 6)

$

$

Not available

2

Snapper 7059443

ASSEMBLY, Driven Disc Hub
(Superseded to 7600142YP)

Note: Was 54243

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7053103

DISC, Driven
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

4

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7052497

ASSEMBLY, Brake Lever
(Superseded to 7052497YP)

Note: (Includes Brake Lining & Rivet)

$13.99

$

In Stock, Qty 20+

0

8

Snapper 7012313

RING, 3/8" External Retaining
(Superseded to 7012313SM)

$3.99

$

In Stock, Qty 12

0

9

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

10

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7010916

SPACER
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 9

0

12

Snapper 7091504

SCREW, 1/4-28 x 1" Hex Head Cap, Grade 5
(Superseded to 7091504YP)

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7061197

SPRING, Brake Return
(Superseded to 7061197YP)

Note: Was 22371

$8.49

$

Usually ships in 2-12 days

0

14

Snapper 7013885

SPRING, Clutch Brake
(Superseded to 7013885YP)

$

$

Not available

15

Snapper 7046162

LIFT, Yoke
(Superseded to 7046162BMYP)

$22.99

$

In Stock, only 2 left!

0

16

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

19

Snapper 7091198

SCREW, 3/8-16 x 5/8" Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7033291

COLLAR, Yoke
(Superseded to 7033291YP)

$56.99

$

Usually ships in 2-12 days

0

21

Snapper 7011763

WASHER, 5/16 Flat
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7071952

ARM, Yoke
(Superseded to 7071952YP)

$27.99

$

Usually ships in 2-12 days

0

23

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7015464

STUD
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

25

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7047190

BRACKET, Slide
(Superseded to 7047190BMYP)

$12.99

$

In Stock, only 1 left!

0

28

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7014663

SLIDE HALF
(Superseded to 7014663YP)

$4.49

$

In Stock, only 4 left!

0

30

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

$1.99

$

Usually ships in 2-12 days

0

31

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
