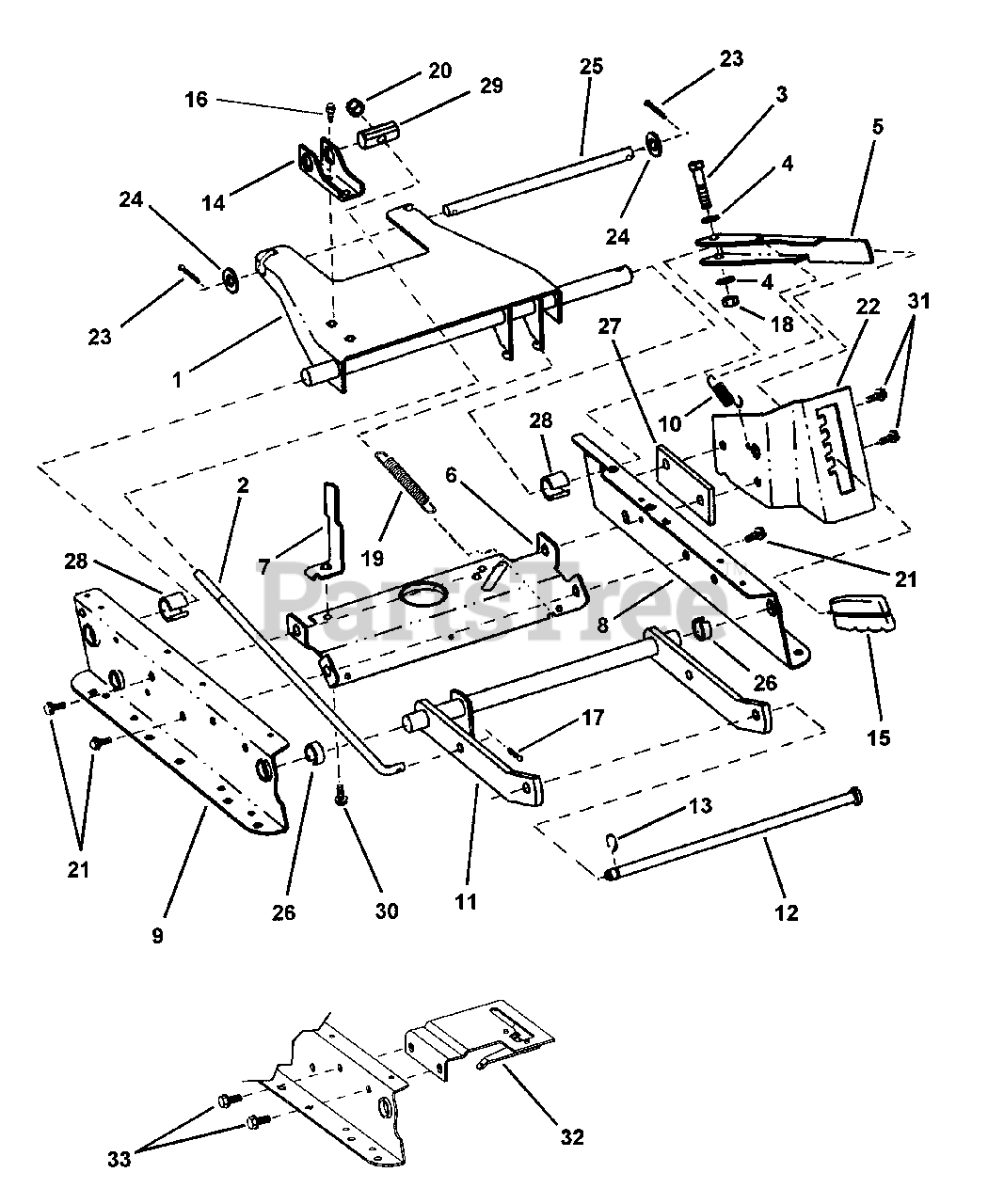

M 280917BE (84250) - Snapper 28" Rear-Engine Riding Mower, 9hp Rails, Lift Arms, Cam Lift (Series 17) Parts Diagram

28" Rear-Engine Riding Mower, 9hp

Rails, Lift Arms, Cam Lift (Series 17) Parts Diagram

  • Title

1

Snapper 7059471

ARM, Rear Lift
(Superseded to 7059471YP)

$91.99

$

Usually ships in 2-12 days

0

2

Snapper 7016122

ROD, Leveling
(Superseded to 7016122YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 7032030

WASHER, 13/32" Flat
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 7046155

LEVER, Height of Cut
(Superseded to 7046155YP)

$35.99

$

In Stock, only 1 left!

0

6

Snapper 7031838

BRACE, Top
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7031855

GUIDE, Belt
(Superseded to 7031855YP)

$7.49

$

In Stock, only 1 left!

0

8

Snapper 7073269

RAIL, Deck Lift, Left Hand
(Superseded to 7073269YP)

Note: Was 34918

$27.99

$

Usually ships in 2-12 days

0

9

Snapper 7036430

RAIL, Deck Lift, Right Hand
(Superseded to 7036430YP)

$54.99

$

In Stock, only 1 left!

0

10

Snapper 7046159

SPRING, Lever
(Superseded to 7046159YP)

$6.99

$

Usually ships in 2-12 days

0

11

Snapper 7040684

ARM, Front Lift, Non-Adjustable (Weldment)
(Superseded to 7040684YP)

$72.99

$

Usually ships in 2-12 days

0

12

Snapper 7022717

ROD, Support
(Superseded to 7022717YP)

Note: (Front Lift Arm to Front End)

$48.99

$

Usually ships in 2-12 days

0

13

Snapper 7017847

SNAP RING, 7/16"
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7033008

ARM, Leveling
(Superseded to 7033008YP)

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 7026420

GRIP, Height Adjustment Lever
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

16

Snapper 7091001

SCREW, 5/16-18 x 5/8" Self-Tapping (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

17

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

19

Snapper 7046163

SPRING, Assist
(Superseded to 7046163YP)

$10.99

$

Usually ships in 2-12 days

0

20

Snapper 7090854

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

21

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7046157

DETENT, Height Adjust
(Superseded to 7046157YP)

$59.99

$

Usually ships in 2-12 days

0

23

Snapper 7091809

PIN, 1/8" x 1-1/4" Cotter
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 7046160

SHAFT, Rear Lift

$

$

Currently unavailable

26

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7046217

DETENT, Spacer
(Superseded to 7046217YP)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 7022112

RING, White
(Superseded to 7022112YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7034213

PIVOT, Leveling
(Superseded to 7034213YP)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

31

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7059323

ASSEMBLY, Clutch Plate

$

$

Not available

33

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
