M 280917BE (84250) - Snapper 28" Rear-Engine Riding Mower, 9hp Main Case (Series 17) Parts Diagram

28" Rear-Engine Riding Mower, 9hp

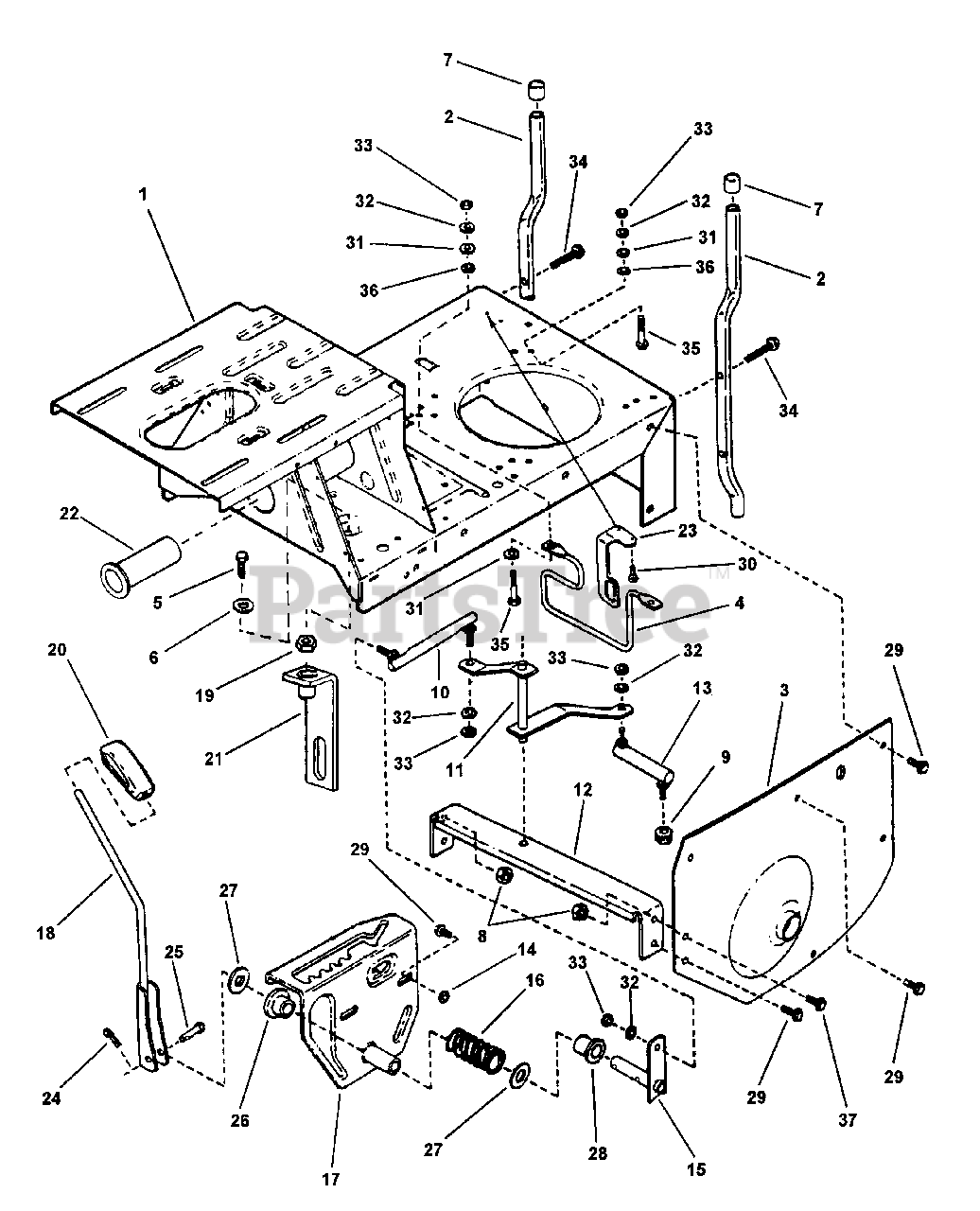

Main Case (Series 17) Parts Diagram

  • Title

1

Snapper 7042701

CASE, Main (Standard)

$

$

Not available

2

Snapper 7030798

BUMPER, Rear
(Superseded to 7030798BMYP)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 7037285

FENDER, Left Hand
(Superseded to 7301302YP)

$0.00

$

Usually ships in 2-12 days

0

4

Snapper 7017653

GUIDE, Belt
(Superseded to 7105172BMYP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, Grade 5
(Superseded to 7091305SM)

Note: Was 91269

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7090122

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7010153

CAP, Bumper
(Superseded to 7010153YP)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7023676

LINK, Shift (Long)
(Superseded to 7023676YP)

$34.99

$

In Stock, only 3 left!

0

11

Snapper 7041384

ARM, Shift (Weldment)
(Superseded to 7041384YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7033799

BRACE, Cross
(Superseded to 7033799YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7011018

LINK, Shift (Short)
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

14

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7040598

ARM, Shift Handle (Weldment)
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

16

Snapper 7010754

SPRING, Shift Handle
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7041232

DETENT, Shift (Weldment)
(Superseded to 7041232BMYP)

$121.99

$

Usually ships in 2-12 days

0

18

Snapper 7059212

HANDLE, Shift (Weldment)
(Superseded to 7059212DYP)

Note: Was 40599 (Now 59212 + 23656)

$56.99

$

In Stock, Qty 20+

0

19

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7023656

GRIP, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

21

Snapper 7059473

ASSEMBLY, Rear Hanger Deck
(Superseded to 7059473YP)

$54.99

$

Usually ships in 2-12 days

0

22

Snapper 7074650

BUSHING, Pilot
(Superseded to 7074650YP)

Note: Was 22509

$12.99

$

In Stock, only 3 left!

0

23

Snapper 7034724

BRACKET, Switch
(Superseded to 7034724YP)

$19.99

$

Usually ships in 2-12 days

0

24

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

26

Snapper 7019245

BUSHING, Nylon
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

27

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7019246

BUSHING, Nylon
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

30

Snapper 7090981

SCREW, 10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

31

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Hex Washer Self-Tap
(Superseded to 704318)

Note: Was 90484

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7091513

SCREW, 5/16-24 x 1-1/2" Hex Head Cap
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 14

0

36

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0
