M 280817B (82519) - Snapper 28" Rear-Engine Riding Mower, 8hp Throttle Control Parts Diagram

28" Rear-Engine Riding Mower, 8hp

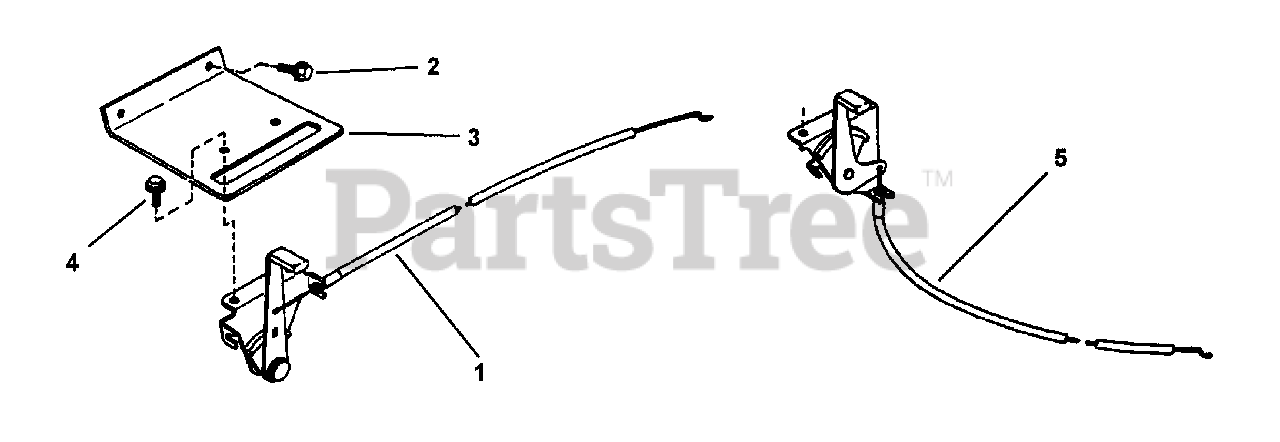

Throttle Control Parts Diagram

  • Title

1

Snapper 7022264

CONTROL, Throttle Manual Start

Note: (Series 17) (17.6" Long)

$

$

Not available

2

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 1 left!

0

3

Snapper 7033470

PLATE, Throttle Control
(Superseded to 7033470YP)

$26.99

$

Usually ships in 2-12 days

0

4

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

5

Snapper 7022751

CONTROL, Throttle
(Superseded to 7022751YP)

Note: (Series 19) (23.6" long)

$26.99

$

In Stock, only 1 left!

0
