M 280817B (82519) - Snapper 28" Rear-Engine Riding Mower, 8hp Drive Disc Assembly (Series 17) Parts Diagram

28" Rear-Engine Riding Mower, 8hp

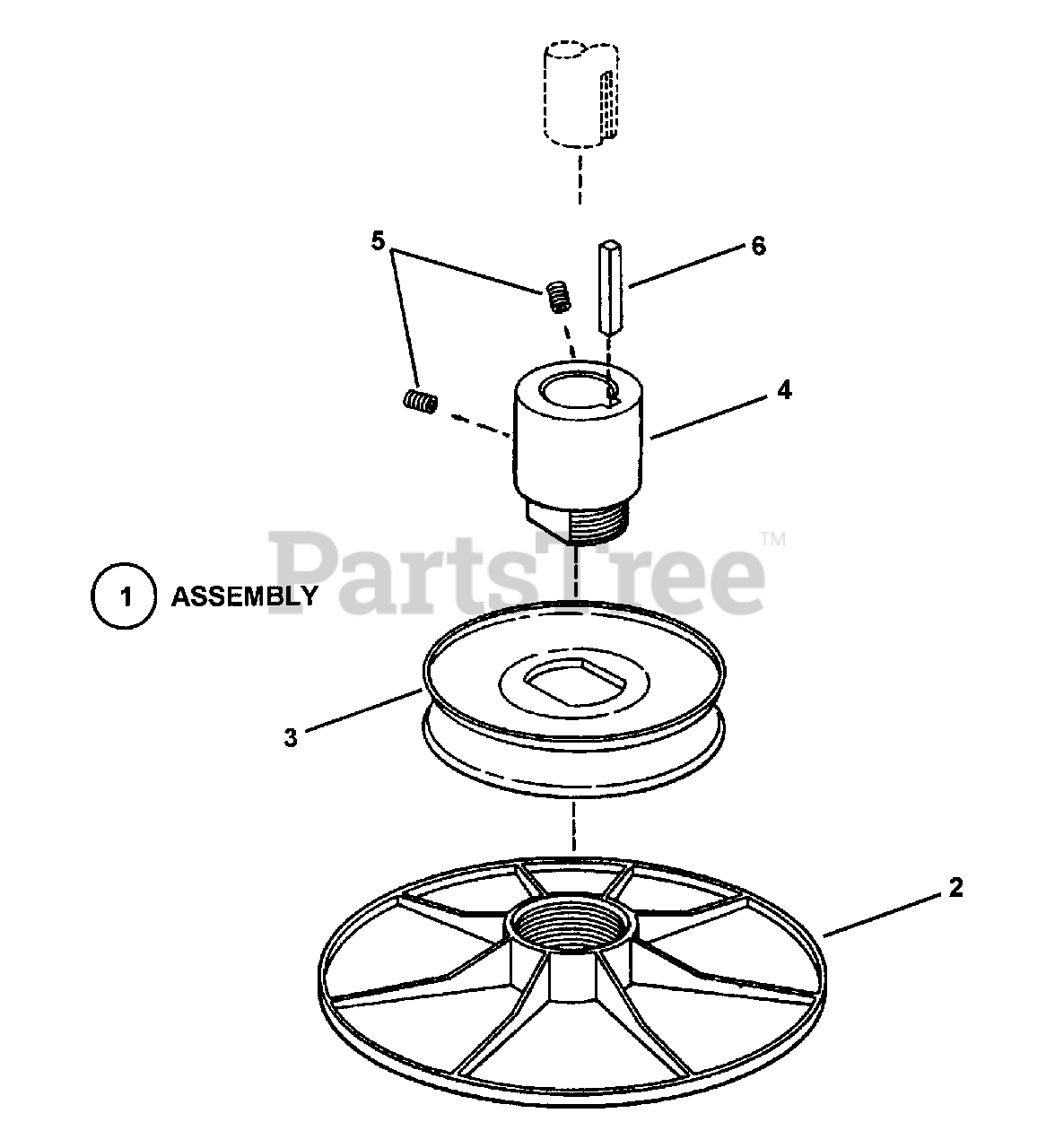

Drive Disc Assembly (Series 17) Parts Diagram

  • Title

1

Snapper 7072658

ASSEMBLY, Drive Disc
(Superseded to 7072658YP)

Note: Was 53709 which included items 2 Thru 5

$125.99

$

In Stock, only 1 left!

0

2

Snapper 7011000

DISC, Drive
(Superseded to 7011000YP)

$58.99

$

In Stock, only 2 left!

0

3

Snapper 7028779

PULLEY, 5.75" Outside Diameter
(Superseded to 7028779YP)

$65.99

$

In Stock, only 3 left!

0

4

Snapper 7029112

HUB, Drive Disc

$

$

Not available

5

Snapper 7090132

SCREW, 3/8-16 x 3/8" Set
(Superseded to 7090132YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7010210

KEY, 1/4 x 1/4 x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0
