M 2745 (41AR2BPG758) - Murray Blower General Assembly Parts Diagram

Blower

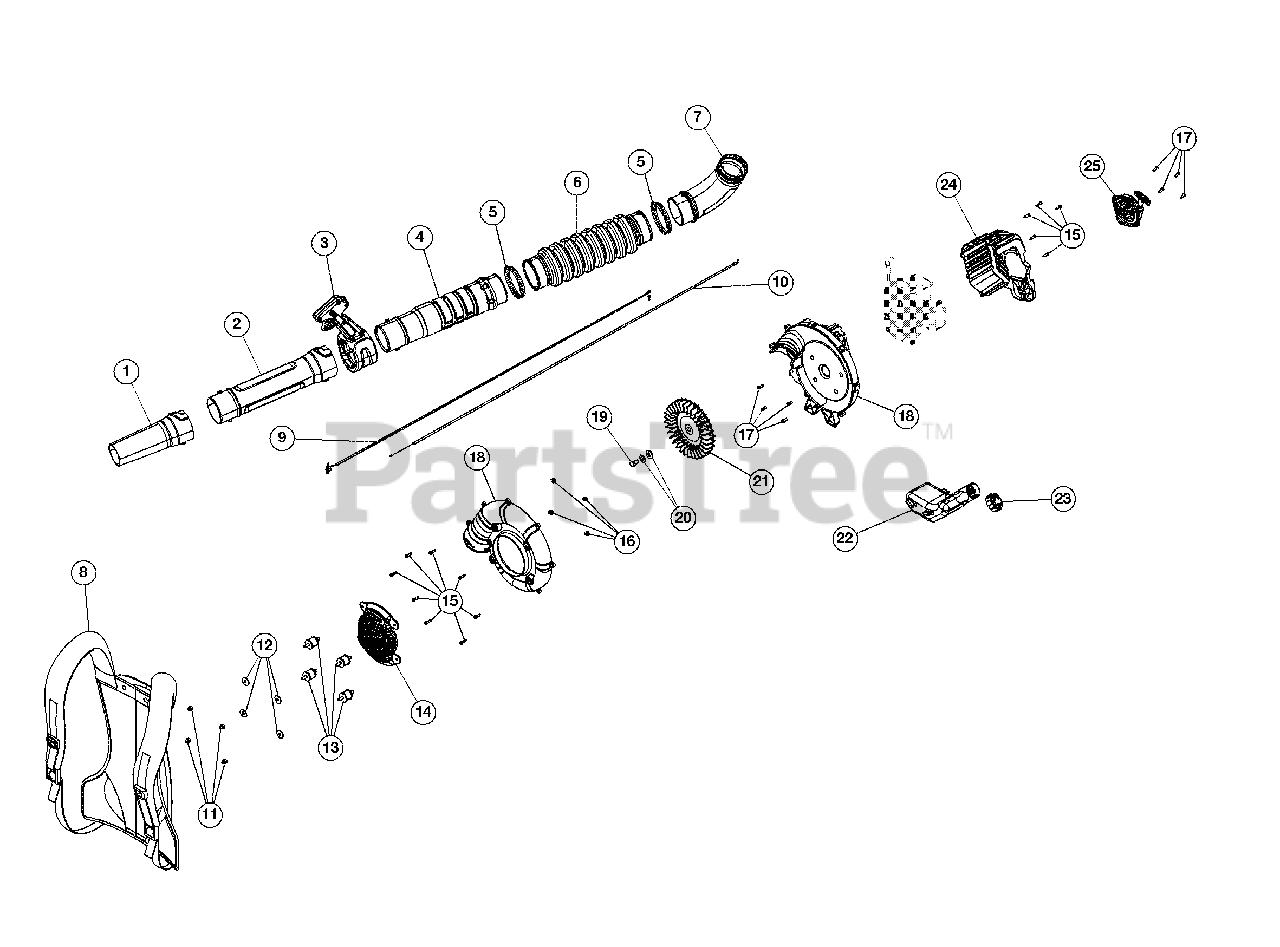

General Assembly Parts Diagram

  • Title

1

MTD 753-06000

Nozzle

$13.99

$

In Stock, only 1 left!

0

2

MTD 753-05971

Lower Blower Tube

$15.99

$

Usually ships in 3-6 days

0

3

MTD 753-05975

Throttle Grip Assembly

$53.99

$

In Stock, only 1 left!

0

4

MTD 753-05991

Upper Blower Tube

$20.99

$

In Stock, only 1 left!

0

5

MTD 726-04080

Clamp

$11.99

$

In Stock, Qty 10

0

6

MTD 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

MTD 753-05990

Elbow

$18.99

$

Usually ships in 3-6 days

0

8

MTD 753-05645

Harness

$108.99

$

Usually ships in 3-6 days

0

9

MTD 753-05643

Lead Wire

$21.99

$

Usually ships in 3-6 days

0

10

MTD 753-06434

Throttle Cable

$8.49

$

In Stock, Qty 20+

0

11

MTD 912-0442

Nut
(Superseded to 712-0442)

$

$

Not available

12

MTD 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

13

MTD 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

14

MTD 753-05649

Intake Cover

$7.49

$

In Stock, only 1 left!

0

15

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0324

Nut

$3.99

$

In Stock, Qty 16

0

17

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

18

MTD 753-06594

Impeller Housing Assembly (Incl. 13-17)

$35.99

$

Usually ships in 3-6 days

0

19

MTD 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

20

MTD 753-04482

Impeller Hardware (Incl. 19)

$9.49

$

Usually ships in 3-6 days

0

21

MTD 753-05651

Impeller (Incl. 19 & 20)

$31.99

$

Usually ships in 3-6 days

0

22

MTD 753-05654

Fuel Tank Assembly (Incl. 23)
(Superseded to 753-08721)

$25.99

$

In Stock, only 1 left!

0

23

MTD 791-182529

Fuel Cap

$21.99

$

In Stock, only 3 left!

0

24

MTD 753-06455

Housing Assembly (Incl. 15)

$13.99

$

Usually ships in 3-6 days

0

25

MTD 753-06596

Starter Assembly (Incl. 17)

$16.99

$

In Stock, Qty 6

0
