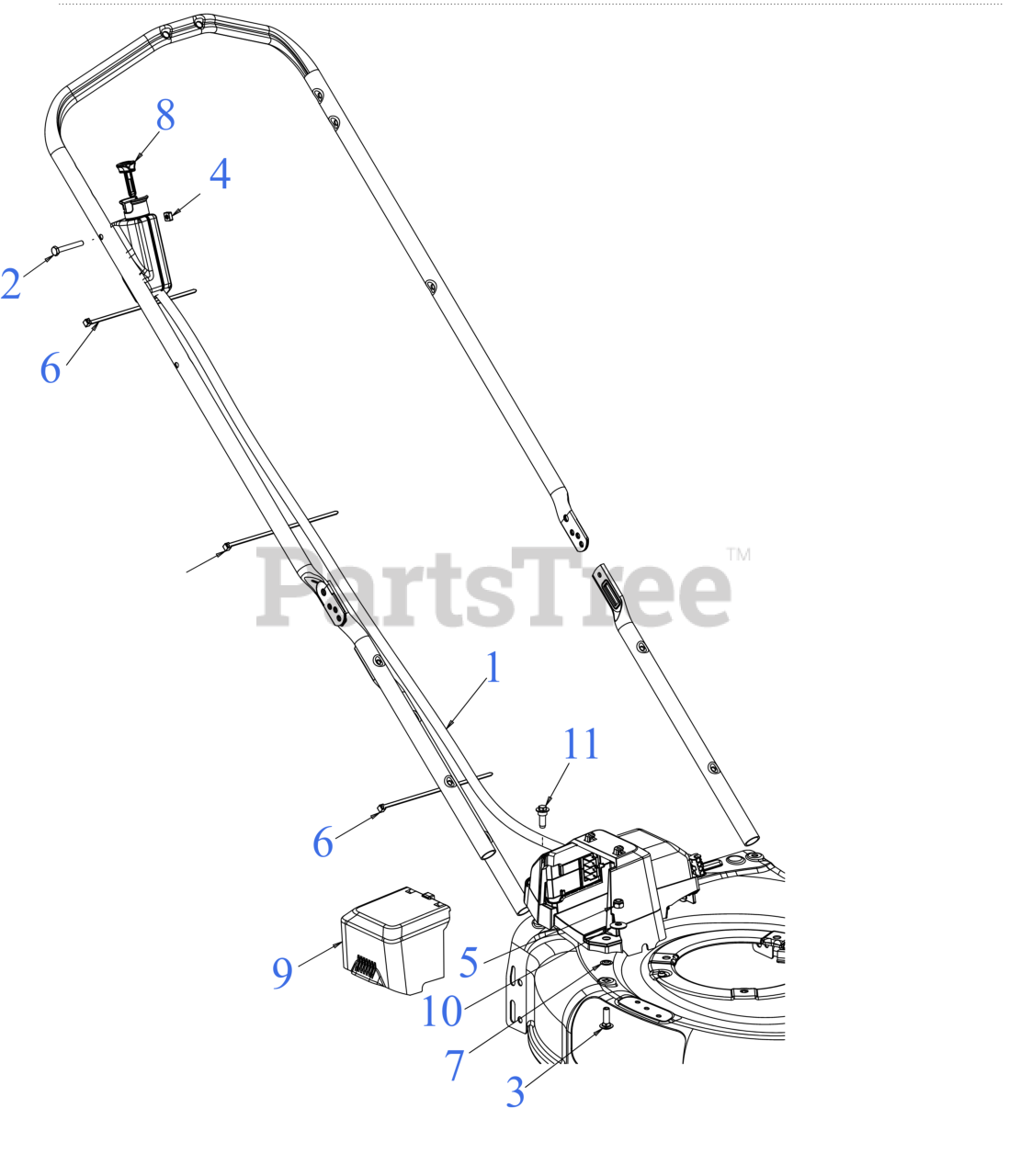

M 270 (CMXGMAM1125504) (12AGA2MP793) - Craftsman Walk-Behind Mower (2022) E Start Harness Parts Diagram

Walk-Behind Mower

E Start Harness Parts Diagram

  • Title
1

MTD 625-06270

HARN ASM:ESTART:BTN:LI-ION

Note: (See Separate Breakdown)

$

$

Currently unavailable

2

MTD 710-0136

HEX SCREW 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

3

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

4

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

MTD 712-0429

HEX NUT

$4.49

$

In Stock, Qty 20+

0

6

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

7

MTD 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

8

MTD 731-09728

PUSH KEY

$4.99

$

In Stock, Qty 9

0

9

MTD 731-16733

BATTERY HOUSING (DOOR)

$26.99

$

Usually ships in 3-6 days

0

10

MTD 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

11

MTD 738-04431A

SHOULDER SCREW 5/16-14 x .972

$3.99

$

Usually ships in 3-6 days

0
