M 260 (CMXGMAM201201) (12AVU2BZ793) - Craftsman Walk-Behind Mower (2022) Deck Parts Diagram

Walk-Behind Mower

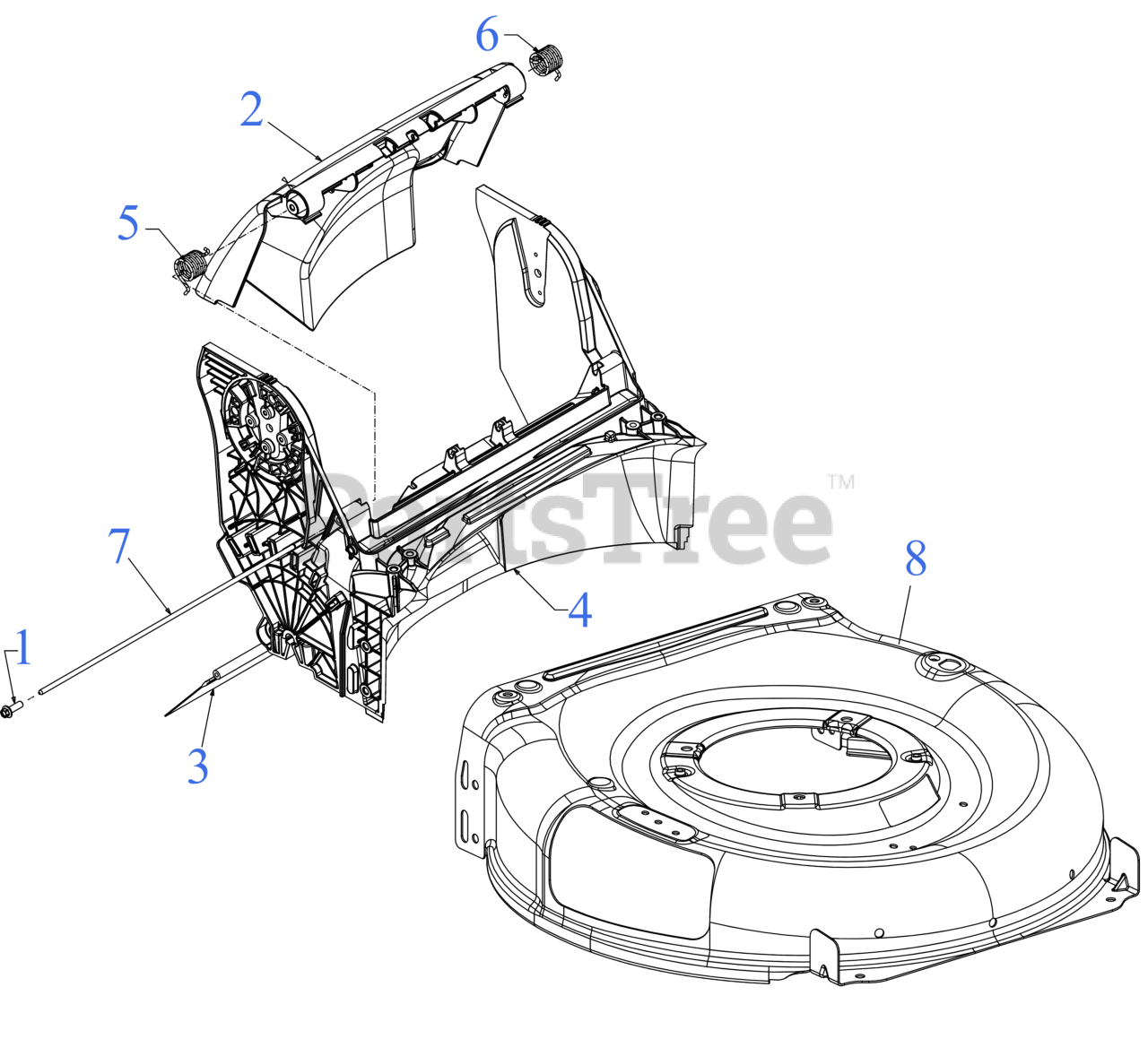

Deck Parts Diagram

  • Title

1

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 631-08186

BFL ASM:RR:VERTSTRG

Note: (Incl.1-7)

$

$

Currently unavailable

3

MTD 731-07203

TRAILSHIELD

$10.99

$

Usually ships in 3-6 days

0

4

MTD 631-08186

BFL ASM:RR:VERTSTRG

Note: (Incl.1-7)

$

$

Currently unavailable

5

MTD 732-05061B

TORSION SPRING (RH)

$5.49

$

In Stock, only 1 left!

0

6

MTD 732-05062B

TORSION SPRING (LH)

$5.49

$

In Stock, only 2 left!

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 10

0

8

MTD 787-01872C

21" DECK (3N1)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-01872C-4021

DECK-21" 3 IN 1 - CUB YELLOW 2 (4021)

$143.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-0638

Mower Deck, 21" 3-in-1 - MTD/TROY-BILT RED (0638)

$143.99

$

In Stock, only 1 left!

0

MTD 787-01872C-0606

DECK-21" 3 IN 1 - MAJESTIC ORANGE (0606)

$143.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-0637

DECK-21" 3 IN 1 - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-0650

DECK-21" 3 IN 1 - RED METALLIC (0650)

$143.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-0691

DECK-21" 3 IN 1 - BLACK JACK (0691)

$143.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-0709

DECK-21" 3 IN 1 - MASTERCRAFT GREEN (0709)

$124.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-4033

DECK-21" 3 IN 1 - FLINT MICA (4033)

$143.99

$

Usually ships in 3-6 days

0

MTD 787-01872C-4044

DECK-21" 3 IN 1 - CRAFTSMAN RED (4044)

$143.99

$

Usually ships in 3-6 days

0

$116.99

$

Usually ships in 3-6 days

0
