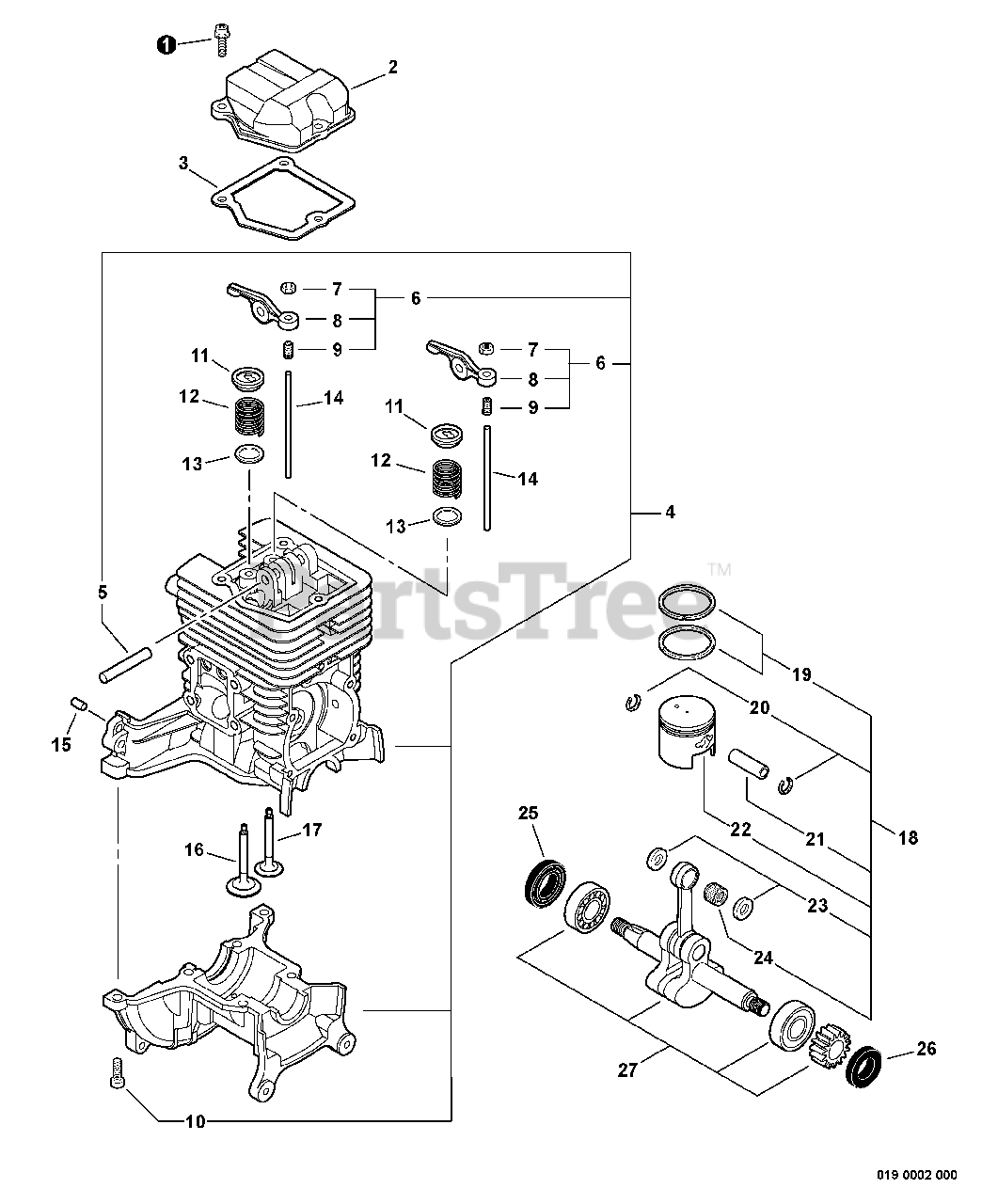

M 254 - Shindaiwa Multi-Tool Powerhead (SN: T13011001001 - T13011999999) Cylinder, Valve Train, Piston Kit Parts Diagram

Multi-Tool Powerhead

Cylinder, Valve Train, Piston Kit Parts Diagram

  • Title
1

Echo V202000350

SCREW - 4X14

$0.99

$

In Stock, Qty 10

0

2

Echo A137000020

COVER, ROCKER ARM

$9.99

$

Usually ships in 2-4 days

0

3

$1.99

$

In Stock, only 1 left!

0

4

Echo P021034040

CYLINDER KIT

Note: Includes ITEMS 5-10

$259.99

$

Usually ships in 2-4 days

0

5

Echo V623000040

SHAFT, ROCKER ARM

$1.99

$

Usually ships in 2-4 days

0

6

Echo A610000050

ROCKER ARM ASSY

$30.99

$

Usually ships in 2-4 days

0

7

Echo V263000230

LOCKNUT - 5

$0.99

$

Usually ships in 2-4 days

0

8

Echo A610000060

ARM, ROCKER

$27.99

$

Usually ships in 2-4 days

0

9

Echo A613000010

SCREW, ADJUST

$2.99

$

Usually ships in 2-4 days

0

10

Echo 90010505016

SCREW - 5X16

$1.49

$

In Stock, Qty 6

0

11

Echo A606000040

RETAINER, VALVE

$7.99

$

In Stock, only 4 left!

0

12

Echo A604000010

SPRING, VALVE

$1.99

$

In Stock, Qty 5

0

13

Echo V392000030

WASHER, VALVE - 9

$0.99

$

In Stock, only 4 left!

0

14

Echo A607000010

PUSHROD
(Superseded to A607000011)

$1.99

$

In Stock, only 4 left!

0

15

Echo V622000040

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

16

Echo A603000040

VALVE, INTAKE

$15.99

$

In Stock, only 1 left!

0

17

Echo A603000050

VALVE, EXHAUST

$19.99

$

In Stock, only 1 left!

0

18

Echo P021033930

PISTON KIT

Note: Includes ITEMS 19-24

$61.99

$

In Stock, only 1 left!

0

19

Echo A101000390

RING, PISTON

$4.49

$

Usually ships in 2-4 days

0

20

Echo V580000090

RING, RETAINING

$5.49

$

In Stock, only 2 left!

0

21

Echo V607000040

PIN, PISTON

$4.49

$

Usually ships in 2-4 days

0

22

$34.99

$

In Stock, only 1 left!

0

23

Echo V392000020

SPACER - 9

$2.49

$

In Stock, Qty 10

0

24

Echo V554000010

BEARING, NEEDLE

$6.49

$

In Stock, only 2 left!

0

25

Echo V505000120

SEAL, OIL

$26.99

$

In Stock, only 1 left!

0

26

Echo V505000110

SEAL, OIL - 12
(Superseded to V505000020)

$6.49

$

In Stock, only 2 left!

0

27

Echo A011000630

CRANKSHAFT ASSY

$119.99

$

Usually ships in 2-4 days

0
