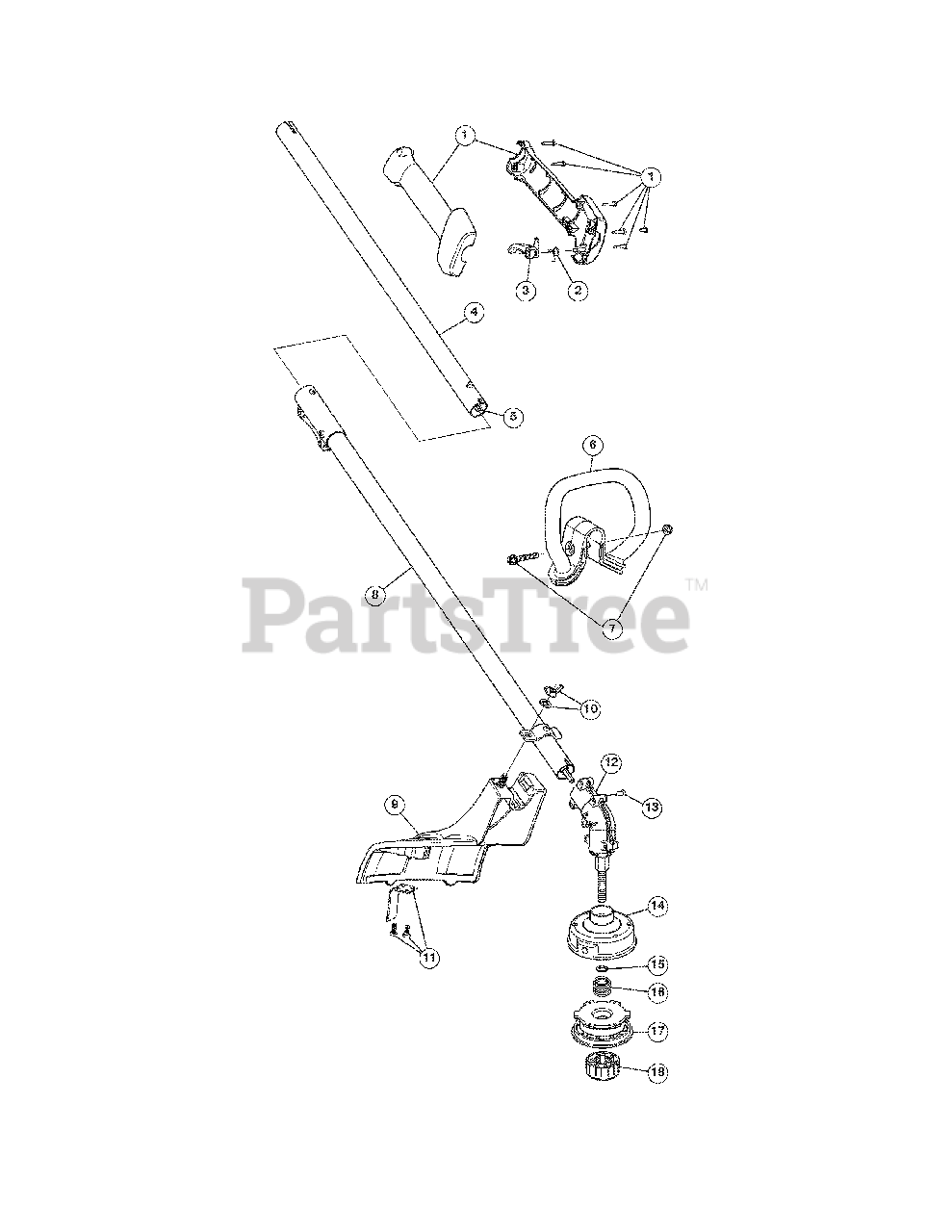

M 2510 (41CDZ03C758) - Murray String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-08543

Throttle Housing Assembly (Incl. 2 & 3)

$5.49

$

In Stock, only 2 left!

0

2

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

3

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 18

0

4

MTD 753-06217

Upper Shaft Housing Assembly (Incl. 5)

$14.99

$

Usually ships in 3-6 days

0

5

MTD 753-06216

Upper Flexible Drive Shaft

$7.49

$

In Stock, only 2 left!

0

6

MTD 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 7

0

7

MTD 753-06040

D-Handle Bolt

$6.99

$

In Stock, only 1 left!

0

8

MTD 753-08549

Lower Shaft Housing Assembly

$27.99

$

In Stock, only 2 left!

0

9

MTD 753-08360

Shield Assembly (Incl. 10 & 11)

$15.99

$

In Stock, only 4 left!

0

10

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

11

MTD 753-08355

Blade Assembly

$4.49

$

In Stock, Qty 20+

0

12

MTD 753-06165

Gearbox Assembly (Incl. 13 - 18)

$50.99

$

In Stock, only 1 left!

0

13

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

14

MTD 753-04284

Outer Spool Assembly (Incl. 15)

$28.99

$

In Stock, only 2 left!

0

15

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

16

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

17

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

18

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 791-153577B

Reel & Line Assembly

Note: (not shown)

$28.99

$

In Stock, only 2 left!

0

MTD 791-610375

Replacement Line-.080, 50 ft. packet

Note: (not shown)

$

$

Not available
