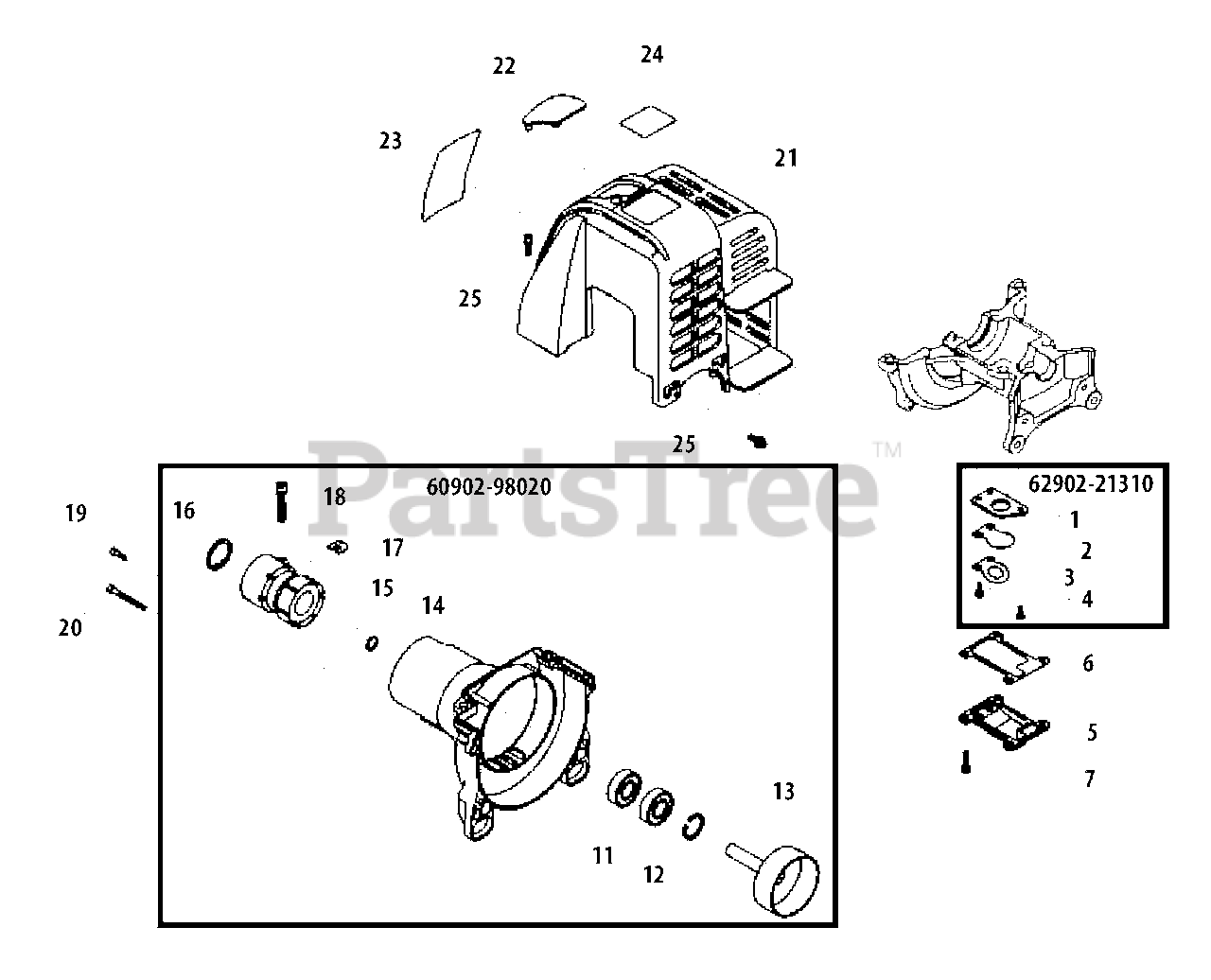

M 2500 - Shindaiwa Multi-Tool Powerhead Engine Cover, Reed Valve Parts Diagram

Multi-Tool Powerhead

Engine Cover, Reed Valve Parts Diagram

  • Title

62902-21310

Echo 62902-21310

REED VALVE ASSY
(Superseded to P021028400)

$28.99

$

Usually ships in 2-4 days

0

1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$11.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$5.99

$

Usually ships in 2-4 days

0

6

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 6

0

7

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0

60902-98020

Echo 60902-98020

FAN CASE ASSY
(Superseded to 60902-98022)

$76.99

$

Usually ships in 2-4 days

0

11

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 14

0

12

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 5

0

13

Echo 20087-31211

DRUM, CLUTCH
(Superseded to A556000960)

$23.99

$

In Stock, Qty 9

0

14

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

15

Echo 20087-31410

CLAMP, MAIN PIPE
(Superseded to A575000190)

$16.99

$

In Stock, only 1 left!

0

16

Echo 02432-40170

RING, RETAINING - 40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

17

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

18

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

20

Echo 01020-05350

SCREW - 5X35
(Superseded to 90010505035)

$1.49

$

In Stock, only 1 left!

0

21

Echo 62901-32111

COVER, ENGINE
(Superseded to A160001861)

$26.99

$

Usually ships in 2-4 days

0

22

Echo 62901-32311

GROMMET
(Superseded to 62901-32312)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 19420-00071

LABEL - C4
(Superseded to X504002530)

$2.49

$

Usually ships in 2-4 days

0

24

Echo 65009-91320

LABEL - TRADE

$7.99

$

Usually ships in 2-4 days

0

25

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0
