M 25 B (41CS99MS758) - Murray Blower General Assembly Parts Diagram

Blower

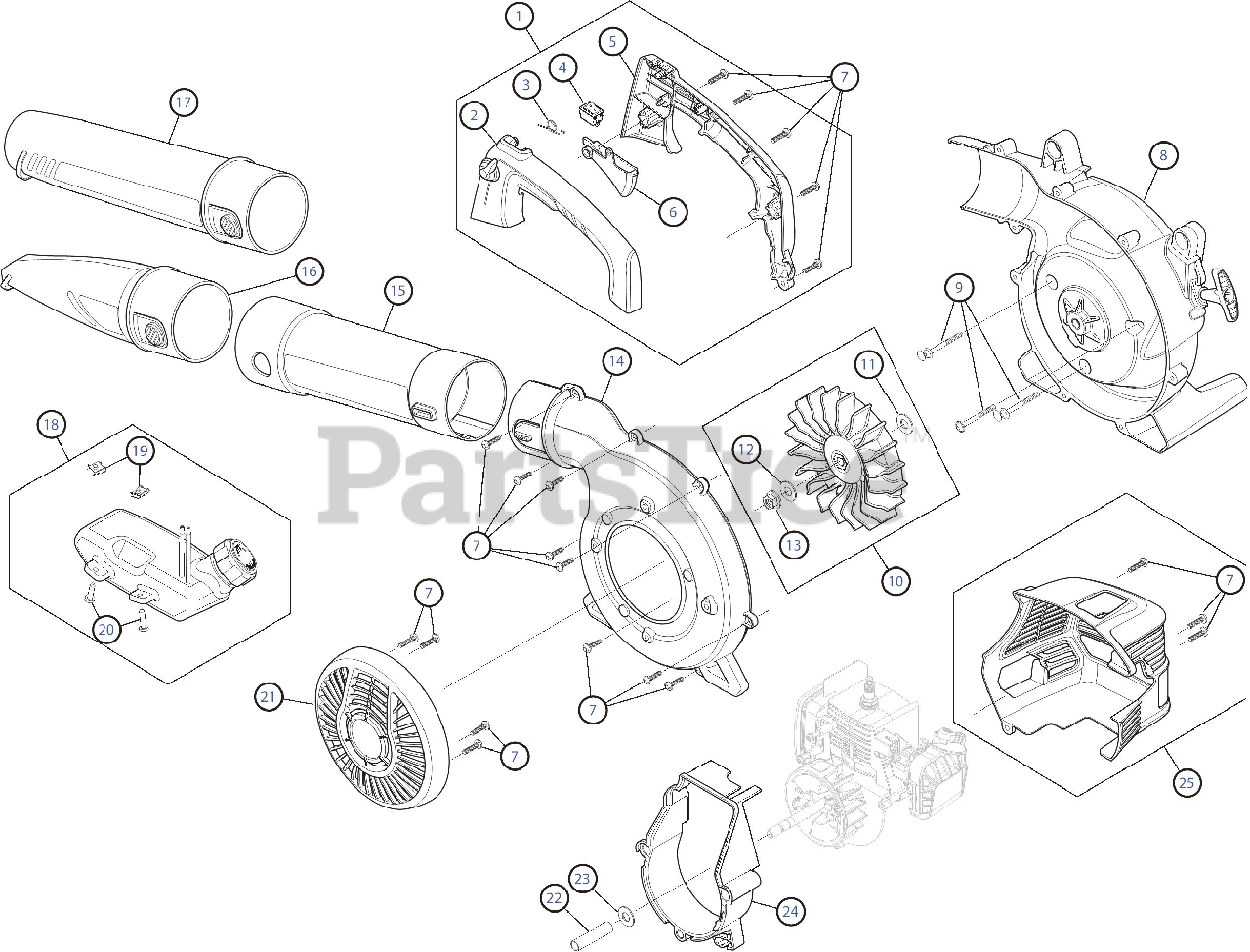

General Assembly Parts Diagram

  • Title

1

MTD 753-08749

Handle Assembly (Incl. 2 - 7)

$17.99

$

Usually ships in 3-6 days

0

2

MTD 841-012583S

Handle (LH)

$5.99

$

Usually ships in 3-6 days

0

3

MTD 753-05007

Trigger Spring

$5.49

$

In Stock, only 2 left!

0

4

MTD 791-182405

On/Off Switch

$10.99

$

In Stock, Qty 12

0

5

MTD 731-10776A-1

Handle (RH)

$3.99

$

Usually ships in 3-6 days

0

6

MTD 731-09987-10

Throttle Trigger

$3.49

$

Usually ships in 3-6 days

0

7

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

8

MTD 753-08750

Impeller Housing Assembly (RH)

$33.99

$

Usually ships in 3-6 days

0

9

MTD 710-06341

Screw

$3.49

$

In Stock, Qty 20+

0

10

MTD 753-08491

Impeller Assembly

$7.99

$

In Stock, Qty 20+

0

11

MTD 736-05080

Washer

$3.49

$

Usually ships in 3-6 days

0

12

MTD 736-04110A

Lock Washer

$5.49

$

In Stock, only 1 left!

0

13

MTD 712-04137

Nut

$6.99

$

Usually ships in 3-6 days

0

14

MTD 753-08513

Impeller Housing Assembly (LH) (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

15

MTD 731-10598

Upper Blower Tube

$7.49

$

Usually ships in 3-6 days

0

16

MTD 731-11154

Blower Nozzle

$5.49

$

Usually ships in 3-6 days

0

17

MTD 731-10782

Lower Blower Tube

$7.49

$

In Stock, Qty 8

0

18

MTD 753-08508

Fuel Tank Assembly

$21.99

$

In Stock, Qty 16

0

19

MTD 791-182366

U-Shaped Nut

$5.99

$

In Stock, only 1 left!

0

20

MTD 791-181930

Screw

$6.99

$

In Stock, only 1 left!

0

21

MTD 753-08511

Intake Cover (Incl. 7)

$4.49

$

Usually ships in 3-6 days

0

22

MTD 750-06367

Shaft Spacer

$3.49

$

Usually ships in 3-6 days

0

23

MTD 736-05080

Washer

$3.49

$

Usually ships in 3-6 days

0

24

MTD 753-08496

Engine Adapter (Incl. 9)

$7.49

$

Usually ships in 3-6 days

0

25

MTD 753-08510

Engine Cover Housing (Incl. 7)

$22.99

$

Usually ships in 3-6 days

0
