M 242 - Shindaiwa Multi-Tool Powerhead (SN: T17313001001 - T17313999999) FUEL SYSTEM S/N T17313001001 - T17313001835 Parts Diagram

Multi-Tool Powerhead

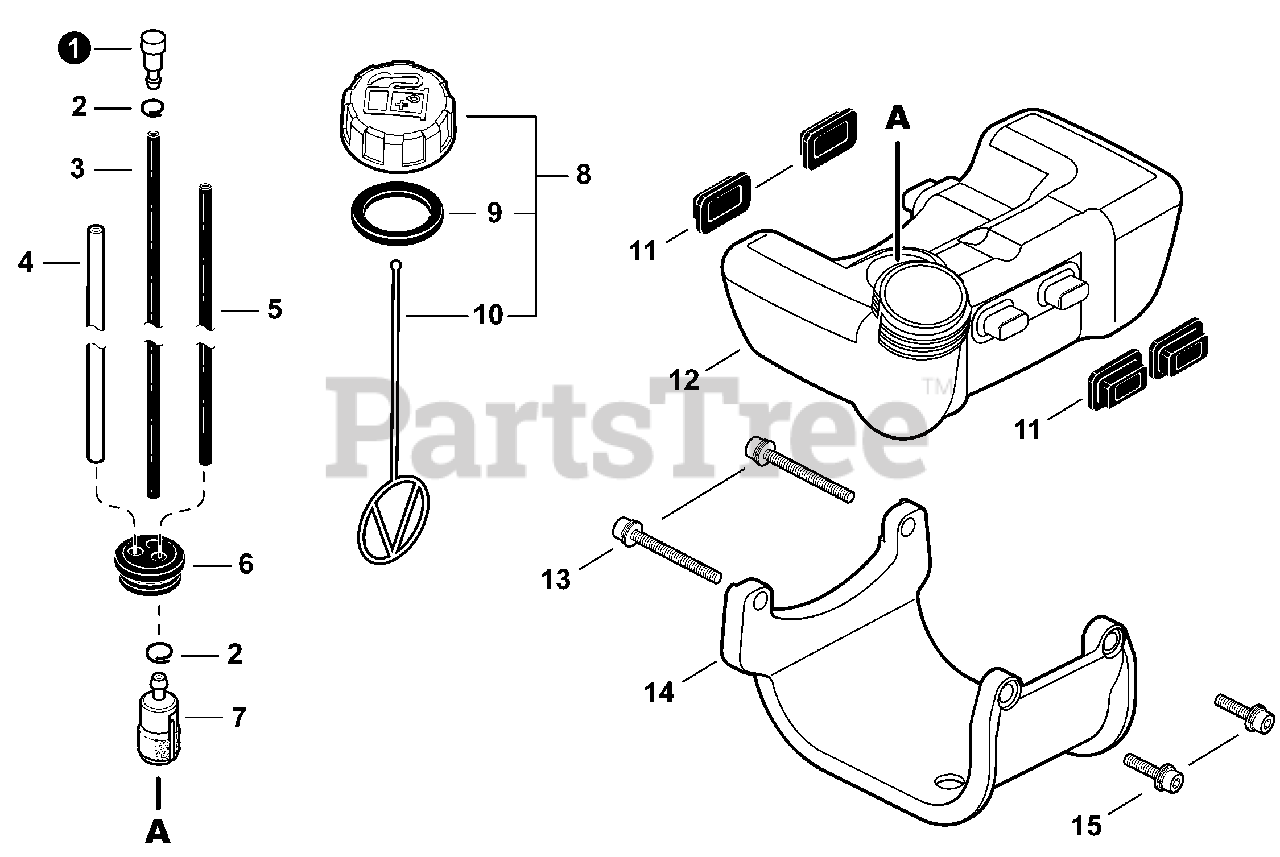

FUEL SYSTEM S/N T17313001001 - T17313001835 Parts Diagram

  • Title

1

Echo A356000040

VENT ASSY

$6.99

$

In Stock, Qty 20+

0

2

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

3

Echo 13011054430

PIPE, FUEL 3×6×105 BLACK
(Superseded to 13011054431)

$2.49

$

In Stock, Qty 6

0

4

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.49

$

In Stock, Qty 7

0

5

Echo 43721030830

PIPE, FUEL 3×6×210 BLACK
(Superseded to 43721030831)

$5.99

$

In Stock, only 3 left!

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

7

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0

8

Echo P021035680

CAP ASSY, FUEL

Note: Includes ITEMS 9-10

$3.99

$

In Stock, Qty 6

0

9

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

10

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

11

Echo V420002220

CUSHION, FUEL TANK

$0.99

$

In Stock, Qty 8

0

12

Echo A350000972

TANK, FUEL

$22.99

$

In Stock, Qty 10

0

13

Echo 90016205040

BOLT 5×40

$1.49

$

In Stock, Qty 9

0

14

Echo A175000080

GUARD, FUEL TANK

$7.49

$

In Stock, only 1 left!

0

15

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, Qty 9

0
