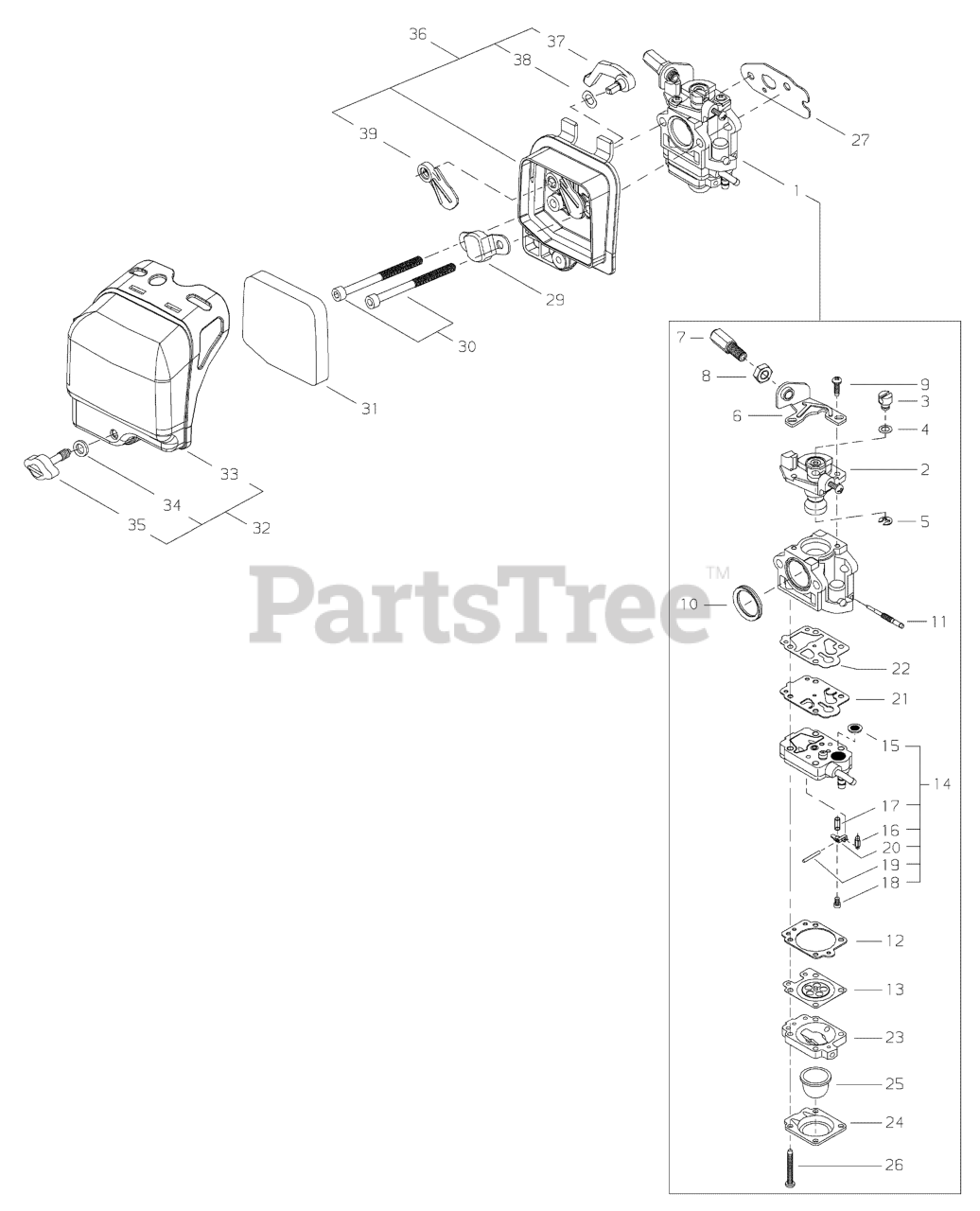

M 242 - Shindaiwa Multi-Tool Powerhead (Original Version) Air Filter, Carburetor Parts Diagram

Multi-Tool Powerhead

Air Filter, Carburetor Parts Diagram

  • Title

1

Echo 62100-81010

CARBURETOR
(Superseded to A021002070)

Note: Includes ITEMS 2-26

$74.99

$

In Stock, only 1 left!

0

2

Echo 62100-81310

THROTTLE VALVE ASSY

$54.99

$

Usually ships in 2-4 days

0

3

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

5

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

6

Echo 20089-81130

BRACKET, CABLE
(Superseded to 12312854230)

$5.49

$

Usually ships in 2-4 days

0

7

Echo 62902-83310

NUT, CABLE ADJUST
(Superseded to C486000030)

$16.99

$

In Stock, only 1 left!

0

8

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 3 left!

0

9

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

10

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, only 3 left!

0

11

Echo 62100-81320

NEEDLE - HIGH SPEED

$19.99

$

Usually ships in 2-4 days

0

12

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 1 left!

0

13

Echo 37013-81310

DIAPHRAGM, METERING
(Superseded to P003000090)

$17.99

$

In Stock, only 1 left!

0

14

Echo 37013-81350

PUMP BODY ASSY
(Superseded to P003000510)

Note: Includes ITEMS 15-20

$14.99

$

In Stock, only 4 left!

0

15

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

16

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

17

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

18

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

20

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

21

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

22

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

23

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

Usually ships in 2-4 days

0

24

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

25

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

26

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

27

Echo 62100-81210

GASKET, INTAKE
(Superseded to V103000670)

$1.99

$

In Stock, only 2 left!

0

29

Echo 62100-82310

PLATE, PREVENT
(Superseded to A244000120)

$2.99

$

In Stock, only 1 left!

0

30

Echo 9110905060

SCREW - 5X60

$1.49

$

In Stock, only 3 left!

0

31

Echo 62100-82120

FILTER, AIR
(Superseded to A226000570)

$2.99

$

In Stock, Qty 20+

0

32

Echo A232000640

AIR FILTER COVER ASSY

Note: Includes ITEMS 33-35

$12.99

$

Usually ships in 2-4 days

0

33

Echo 62100-82130

COVER, AIR FILTER
(Superseded to A232000630)

$8.99

$

In Stock, only 1 left!

0

34

Echo V323000080

WASHER - VINYL

$0.99

$

In Stock, Qty 13

0

35

Echo 37033-82320

THUMBSCREW
(Superseded to V299000340)

$3.99

$

In Stock, only 2 left!

0

36

Echo 62100-82012

AIR FILTER CASE ASSY
(Superseded to 62100-82013)

Note: Includes ITEMS 37-38

$14.99

$

In Stock, only 1 left!

0

37

Echo 37076-82331

LEVER, CHOKE
(Superseded to 37076-82332)

$

$

Not available

38

Echo 37013-82310

WASHER - SPRING
(Superseded to 38110-82340)

$0.99

$

In Stock, Qty 11

0

39

Echo 37076-82321

PLATE, CHOKE
(Superseded to A243000160)

$

$

Not available
