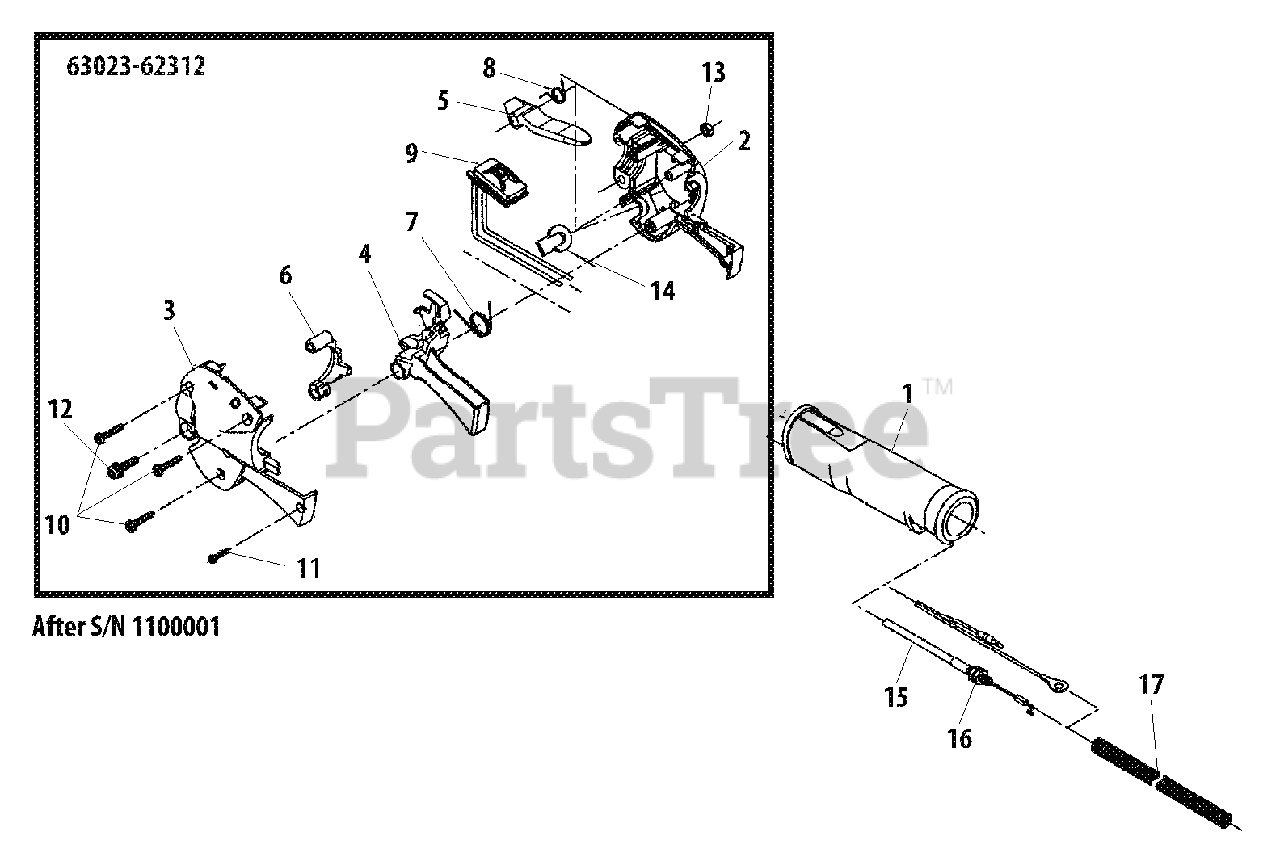

M 230 - Shindaiwa Multi-Tool Powerhead Throttle Lever S/N: 1100001 - 9999999 Parts Diagram

Multi-Tool Powerhead

Throttle Lever S/N: 1100001 - 9999999 Parts Diagram

  • Title

1

Echo 63901-62140

GRIP
(Superseded to 63901-62142)

$11.99

$

In Stock, only 1 left!

0

63023-62312

Echo 63023-62312

THROTTLE LEVER ASSY
(Superseded to 63023-62313)

$52.99

$

Usually ships in 2-4 days

0

2

Echo 63901-62321

HANDLE, CONTROL - RIGHT
(Superseded to C401000160)

$10.99

$

Usually ships in 2-4 days

0

3

Echo 63901-62332

HANDLE, CONTROL - LEFT
(Superseded to C401000170)

$9.49

$

Usually ships in 2-4 days

0

4

Echo 63901-62341

LEVER
(Superseded to C450000490)

$9.99

$

In Stock, only 2 left!

0

5

Echo 63901-62351

LEVER, LOCK
(Superseded to 63901-62352)

$4.49

$

In Stock, Qty 5

0

6

Echo 63901-62361

HOLDER
(Superseded to C461000030)

$2.99

$

In Stock, only 1 left!

0

7

Echo 63880-65350

SPRING
(Superseded to V452000700)

$1.99

$

In Stock, Qty 9

0

8

Echo 63901-62370

SPRING
(Superseded to V452000500)

$1.99

$

In Stock, Qty 5

0

9

Echo 63023-62320

SWITCH, IGNITION
(Superseded to A045000230)

$20.99

$

Usually ships in 2-4 days

0

10

Echo 63880-65360

SCREW - 4X20 -- TAPPING
(Superseded to V252000380)

$1.99

$

Usually ships in 2-4 days

0

11

Echo 63901-62390

SCREW - 3X14 -- TAPPING
(Superseded to V251000040)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 63901-62410

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

13

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$0.99

$

In Stock, Qty 13

0

14

Echo 63880-65411

PLUG
(Superseded to V162000350)

$1.99

$

In Stock, only 1 left!

0

15

Echo 63023-62170

CABLE, THROTTLE
(Superseded to V430002650)

$8.99

$

Usually ships in 2-4 days

0

16

Echo 01501-06041

NUT - 6
(Superseded to 90050200006)

$0.99

$

In Stock, only 3 left!

0

17

Echo 22422-14540

TUBE
(Superseded to V475004520)

$1.99

$

In Stock, Qty 12

0
