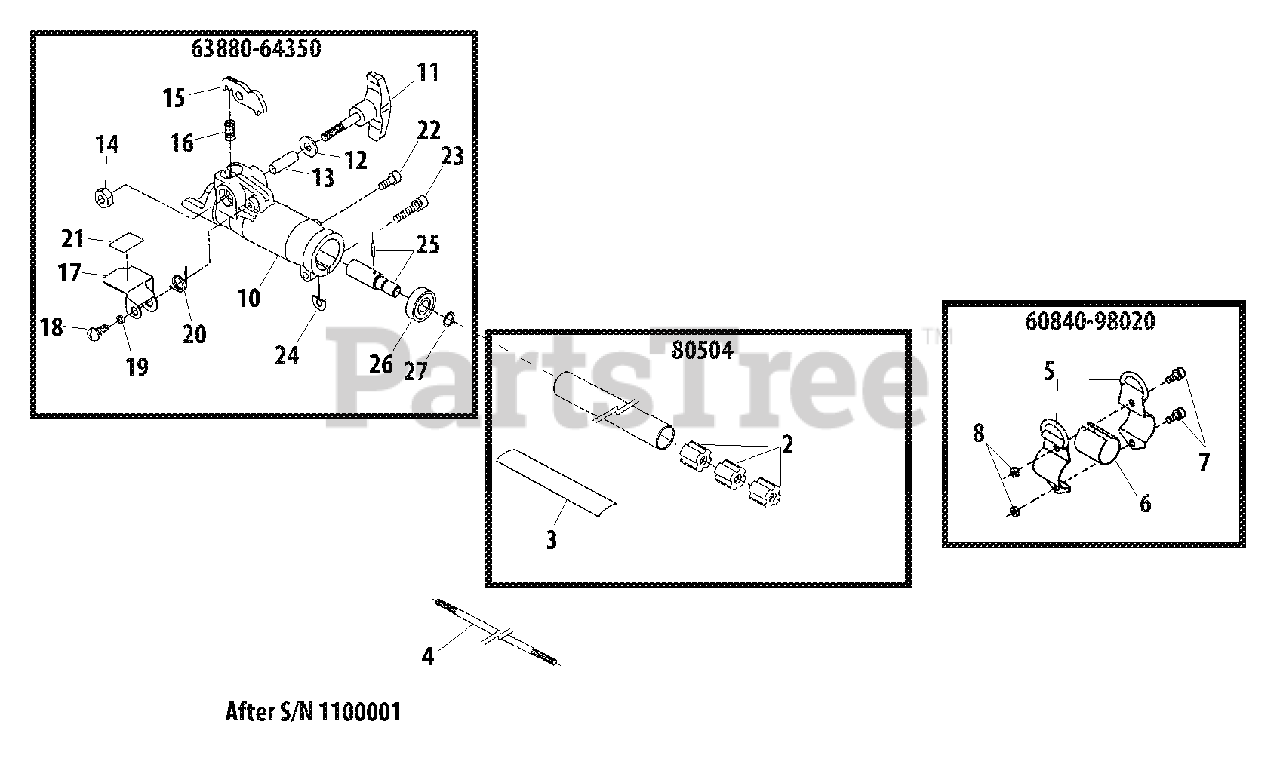

M 230 - Shindaiwa Multi-Tool Powerhead Outer Tube S/N: 1100002 - 9999999 Parts Diagram

Multi-Tool Powerhead

Outer Tube S/N: 1100002 - 9999999 Parts Diagram

  • Title

80504

Echo 80504

MAIN PIPE ASSY
(Superseded to P021042430)

$58.99

$

Usually ships in 2-4 days

0

2

Echo 22035-12120

BUSHING
(Superseded to 22035-12121)

$4.49

$

In Stock, Qty 6

0

3

Echo 19402-00218

LABEL - CAUTION
(Superseded to 19402-00303)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 63880-64340

PIPE, MAIN
(Superseded to C504000550)

$18.99

$

In Stock, only 3 left!

0

60840-98020

Echo 60840-98020

HANGER ASSY
(Superseded to P021027480)

$

$

Not available

5

Echo 22000-12210

HANGER

$4.49

$

Usually ships in 2-4 days

0

6

Echo 60840-98030

SHIM
(Superseded to Discontinued)

$

$

Not available

7

Echo 11020-05120

SCREW - 5X12
(Superseded to 11022-05120)

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

63880-64350

Echo 63880-64350

COUPLER ASSY
(Superseded to P021028870)

$115.99

$

Usually ships in 2-4 days

0

10

Echo 37000-62220

COUPLER
(Superseded to C510000200)

$31.99

$

Usually ships in 2-4 days

0

11

Echo 63880-64380

KNOB
(Superseded to V299000350)

$6.49

$

In Stock, only 2 left!

0

12

Echo 72030-14130

WASHER
(Superseded to V304000160)

$0.99

$

In Stock, only 3 left!

0

13

Echo 1790106220

COLLAR
(Superseded to V354000260)

$0.99

$

In Stock, only 3 left!

0

14

Echo 63880-64410

NUT
(Superseded to V264000120)

$0.99

$

In Stock, only 3 left!

0

15

Echo 37000-62310

LEVER, LOCK
(Superseded to C661000050)

$13.99

$

In Stock, only 1 left!

0

16

Echo 1750006001

SPRING
(Superseded to V450000860)

$0.99

$

In Stock, Qty 9

0

17

Echo 37000-62340

COVER
(Superseded to C516000020)

$4.99

$

Usually ships in 2-4 days

0

18

Echo 63880-64420

SCREW
(Superseded to 11207-05120)

$0.99

$

In Stock, only 4 left!

0

19

Echo 15401-00004

COLLAR
(Superseded to V353000330)

$1.99

$

In Stock, only 1 left!

0

20

Echo 17520-12400

SPRING
(Superseded to V452000510)

$0.99

$

In Stock, only 4 left!

0

21

Echo 19401-00168

LABEL - LATCH INSTRUCTION
(Superseded to X505002880)

$0.99

$

In Stock, Qty 9

0

22

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

23

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

24

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

25

Echo 63880-64360

CONNECTOR, SHAFT
(Superseded to P021028880)

$31.99

$

In Stock, only 1 left!

0

26

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$15.99

$

In Stock, Qty 5

0

27

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0
