M 230 - Shindaiwa Multi-Tool Powerhead Crankcase, Cylinder, Muffler Parts Diagram

Multi-Tool Powerhead

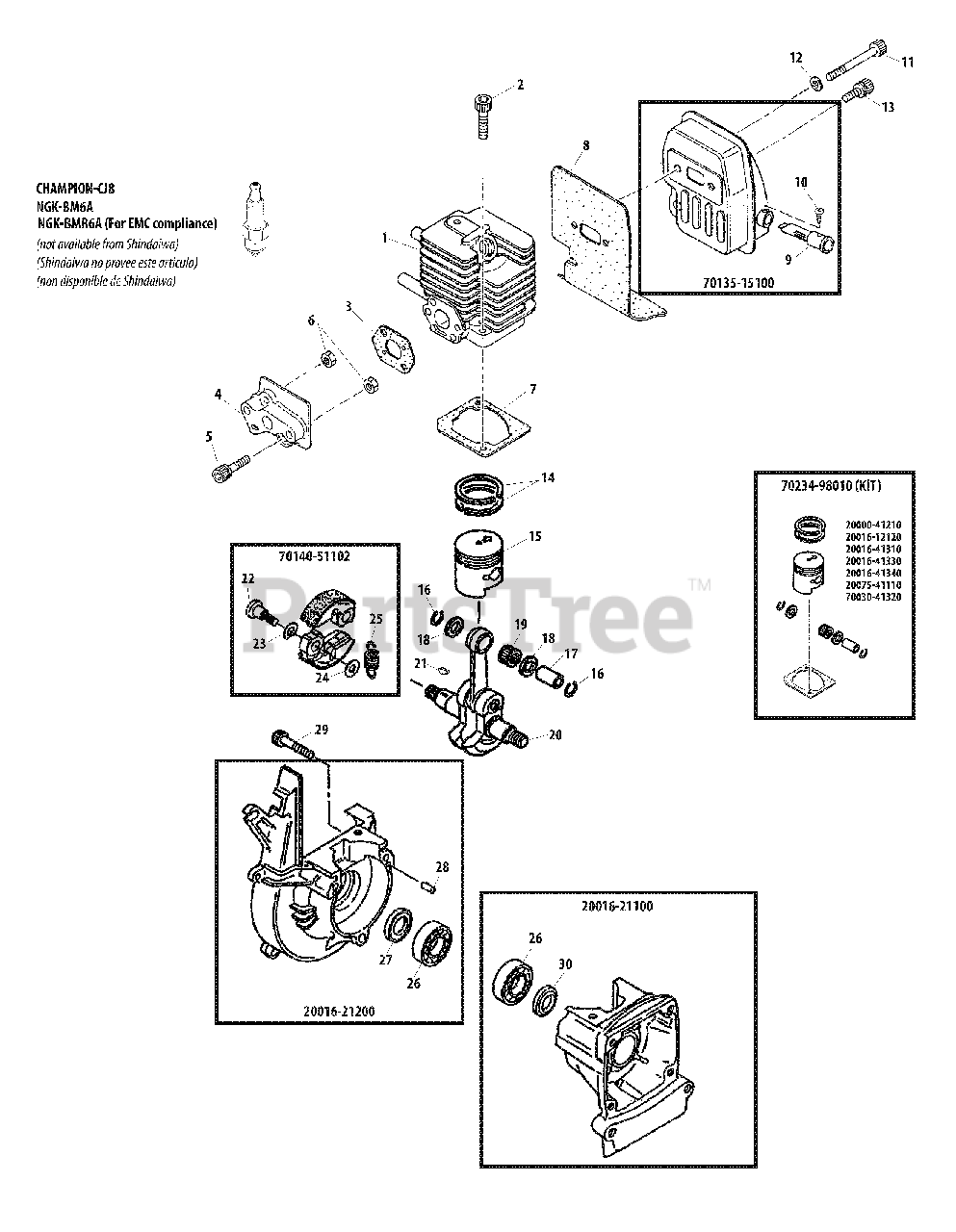

Crankcase, Cylinder, Muffler Parts Diagram

  • Title

1

Echo 20016-12110

CYLINDER
(Superseded to 20016-12112)

$54.99

$

In Stock, Qty 8

0

2

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

3

Echo 20016-12222

GASKET
(Superseded to V103001200)

$0.99

$

In Stock, Qty 9

0

4

Echo 20016-12212

INSULATOR
(Superseded to 99909-12212)

$11.99

$

In Stock, only 1 left!

0

5

Echo 11022-05305

SCREW - 5X30
(Superseded to V203000480)

$3.99

$

In Stock, Qty 5

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 13

0

8

Echo 20016-15122

SHIELD, EXHAUST
(Superseded to 20016-15123)

$7.99

$

In Stock, only 1 left!

0

70135-15100

Echo 70135-15100

MUFFLER ASSY
(Superseded to A030000120)

$31.99

$

Usually ships in 2-4 days

0

9

Echo 70103-15150

SCREEN, SPARK ARRESTOR
(Superseded to A310000260)

$7.99

$

Usually ships in 2-4 days

0

10

Echo 01270-03062

SCREW - 3X6
(Superseded to 9137403006)

$0.99

$

In Stock, Qty 10

0

11

Echo 01020-05500

SCREW - 5X50
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0

12

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

70234-98010

Echo 70234-98010

PISTON ASSY
(Superseded to 70234-98011)

$60.99

$

In Stock, Qty 6

0

14

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 2 left!

0

15

Echo 20075-41110

PISTON
(Superseded to 70234-98310)

$35.99

$

Usually ships in 2-4 days

0

16

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

17

Echo 20016-41310

PIN, PISTON
(Superseded to V606000060)

$3.49

$

In Stock, only 1 left!

0

18

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 20016-41330

BEARING, NEEDLE
(Superseded to 81593)

$7.99

$

In Stock, only 1 left!

0

7

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 13

0

20

Echo 20016-42002

CRANKSHAFT ASSY
(Superseded to A011000930)

$67.99

$

Usually ships in 2-4 days

0

21

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

70140-51102

Echo 70140-51102

CLUTCH ASSY
(Superseded to A056000260)

$32.99

$

In Stock, Qty 20+

0

22

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

23

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

24

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.49

$

In Stock, only 3 left!

0

20016-21200

Echo 20016-21200

CRANKCASE ASSY - FRONT
(Superseded to P021017920)

$42.99

$

Usually ships in 2-4 days

0

26

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

27

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 12

0

28

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

29

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

20016-21100

Echo 20016-21100

CRANKCASE ASSY - REAR
(Superseded to P021017910)

$37.99

$

Usually ships in 2-4 days

0

26

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

30

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 1 left!

0
