M 2265 HW (7800203) - Murray 22" Walk-Behind Mower (2008) Deck Assembly - Push, Hi-Wheel Parts Diagram

22" Walk-Behind Mower

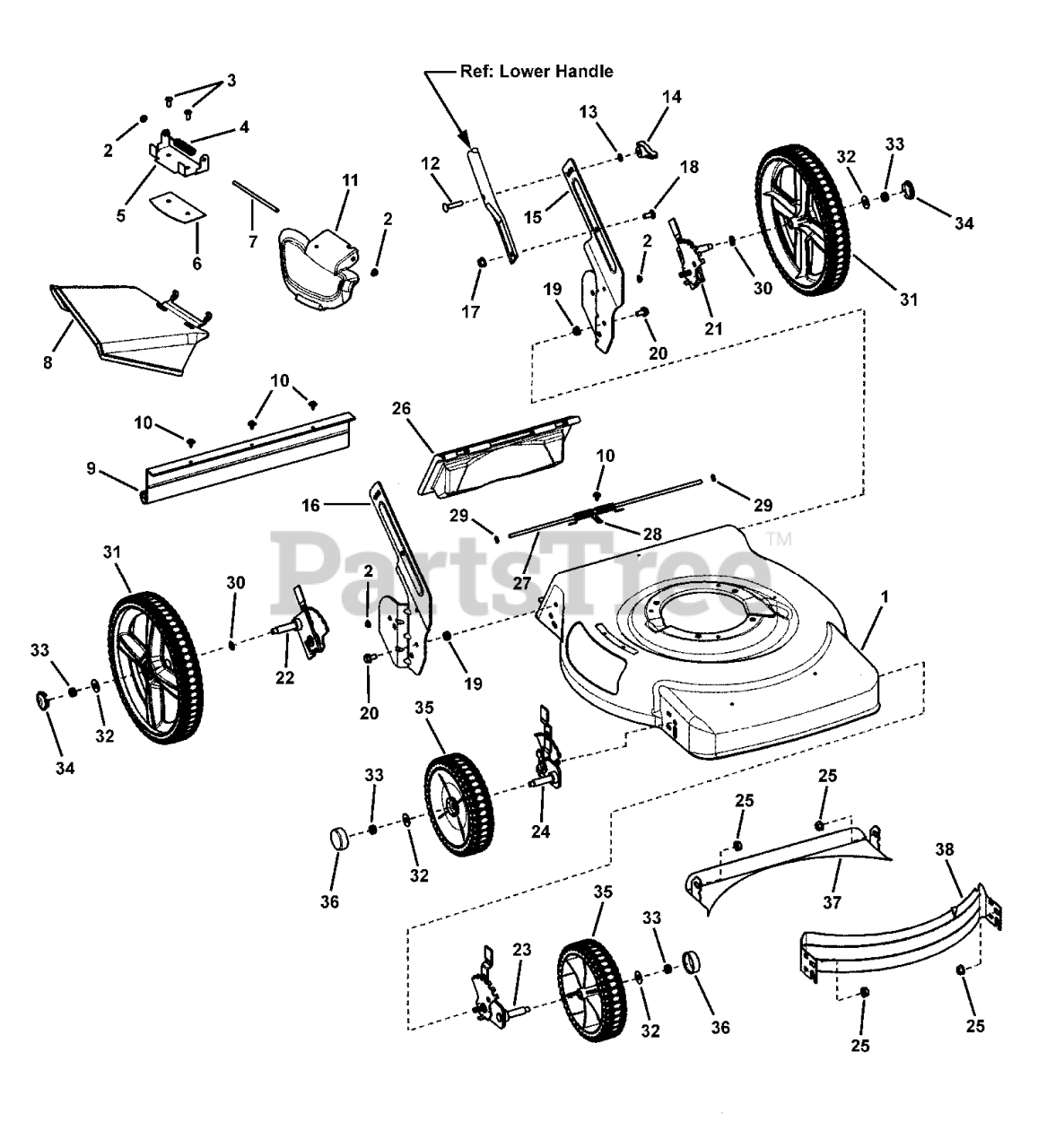

Deck Assembly - Push, Hi-Wheel Parts Diagram

  • Title

1

Murray 7300401ZYP

DECK, 22" Walk, Push 3-N-1

$259.99

$

In Stock, only 1 left!

0

2

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

3

Murray 26X217MA

SCREW, 1/4-20 x 11/16" Pan Head Self-Tap - Torx
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

4

Murray 166X38MA

SPRING, Chute - Torsion

$4.99

$

In Stock, only 2 left!

0

5

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

6

Murray 7300856ZMA

PLATE, Mulch, 22" RB Scott's

$6.49

$

Usually ships in 2-12 days

0

7

Murray 215X19ZMA

ROD, Chute Pivot - 1/4" Dia. x 5.55"
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

8

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

Usually ships in 2-12 days

0

9

Murray 672684MA

GUARD, Rear 22" Hi-Wheel
(Superseded to 7102422YP)

$18.99

$

Usually ships in 2-12 days

0

10

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap - Sems

$4.99

$

In Stock, Qty 14

0

11

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

12

Murray 002X81MA

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage

$3.49

$

Usually ships in 2-12 days

0

13

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

14

Murray 7035744YP

KNOB, 5/16-18 Wing - Black
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

15

Murray 7300583ZMA

BRACKET, Lower Handle, LH, 22" WBM, Hi-Wheel

$47.99

$

Usually ships in 2-12 days

0

16

Murray 7300582ZMA

BRACKET, Lower Handle, RH, 22" WBM, Hi-Wheel
(Superseded to 7300582BHYP)

$51.99

$

Usually ships in 2-12 days

0

17

Murray 7090951SM

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

18

Murray 7090001YP

BOLT 5/16-18 x 3/4" Round Head Short Square Neck
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

19

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

20

Murray 7090606SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

21

Murray 7501066YP

ASSY, Height-of-Cut, Left Rear, 7 Position

$21.99

$

Usually ships in 2-12 days

0

22

Murray 7501065YP

ASSY, Height-of-Cut, Right Rear, 7 Position

$60.99

$

Usually ships in 2-12 days

0

23

Murray 7501064YP

ASSY, Height-of-Cut, Left Front, 7 Position

$52.99

$

Usually ships in 2-12 days

0

24

Murray 7501063YP

ASSY, Height-of-Cut, Right Front, 7 Position

$46.99

$

Usually ships in 2-12 days

0

25

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

26

Murray 1101070MA

DOOR, Rear Discharge, 22" Walk Mower

$

$

Not available

27

Murray 215X21MA

ROD, Pivot, Rear Door - 1/4" Dia. X 17-1/2"

$7.99

$

Usually ships in 2-12 days

0

28

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

$6.99

$

Usually ships in 2-12 days

0

29

Murray 028X49MA

CAP, Retainer

$3.99

$

In Stock, Qty 13

0

30

Murray 7026257MA

WASHER, .531 x .781 3-Wave

$4.49

$

In Stock, Qty 11

0

31

Murray 7500861YP

ASSY, Wheel, 12" x 2" Idle, NB, Murray Tread, Gray
(Superseded to 7105709YP)

$54.99

$

Usually ships in 2-12 days

0

32

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

33

Murray 7090585MA

NUT, 5/16-18 Flange Lock

$3.99

$

In Stock, Qty 7

0

34

Murray 7101392YP

HUBCAP, 12" Wheel, Murray Gray

$3.99

$

Usually ships in 2-12 days

0

35

Murray 7500860YP

ASSY, Wheel 8" x 2" Idle, NB Murray Tread, Gray

$33.99

$

Usually ships in 2-12 days

0

36

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

37

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

38

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0
