M 22550 (7800453) - Murray 22" Walk-Behind Mower (2010) Handles & Controls (Push) Parts Diagram

22" Walk-Behind Mower

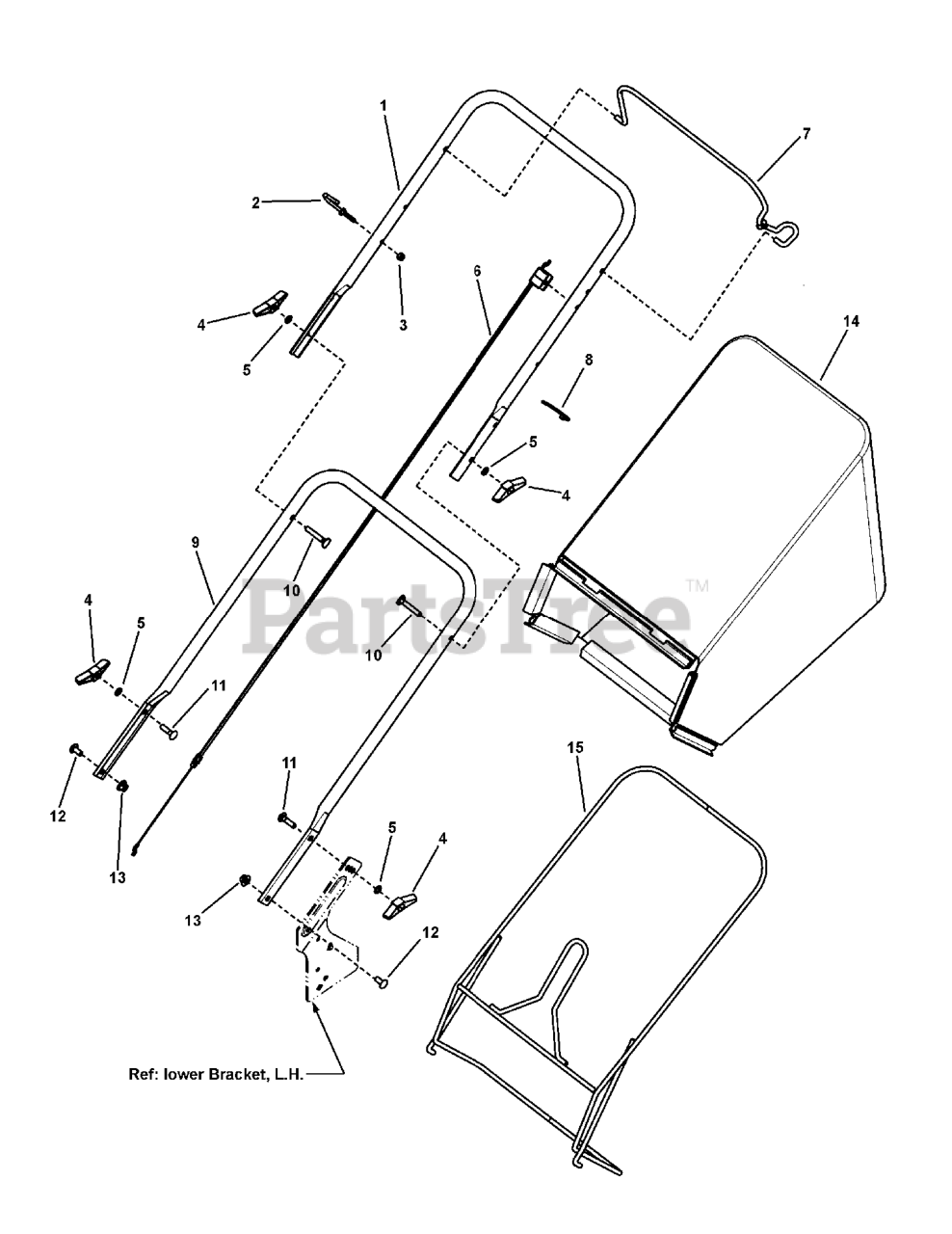

Handles & Controls (Push) Parts Diagram

  • Title

1

Murray 7300705AMA

UPPER HANDLE, Propelled

$51.99

$

Usually ships in 2-12 days

0

2

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

3

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Murray 071294MA

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

5

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

6

Murray 7101330YP

CABLE, Bail, 22" WBM, (41.50" overall length)

Note: used on M2250 Model

$16.99

$

In Stock, only 1 left!

0

6

Murray 7100074YP

CABLE, Zone Control (48.60" overall length)

Note: used on M2265HW Model

$21.99

$

In Stock, only 1 left!

0

7

Murray 7101675AYP

BAIL, OPC Push

$46.99

$

Usually ships in 2-12 days

0

8

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

9

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

10

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

11

Murray 7091714YP

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

12

Murray 7091508SM

BOLT 5/16-18 x 3/4" Round Head Short Square Neck
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

13

Murray 7090951SM

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

14

Murray 7102573YP

GRASS BAG, 22" Rear Discharge

$128.99

$

Usually ships in 2-12 days

0

15

Murray 7101230AYP

WELDMENT, Frame, Grass Bag, 22" Walk-Behind

Note: used on M2250 & M2265HW Models

$222.99

$

Usually ships in 2-12 days

0
