M 22550 (7800453) - Murray 22" Walk-Behind Mower (2010) Deck Assembly (Push, Std. Wheel) Parts Diagram

22" Walk-Behind Mower

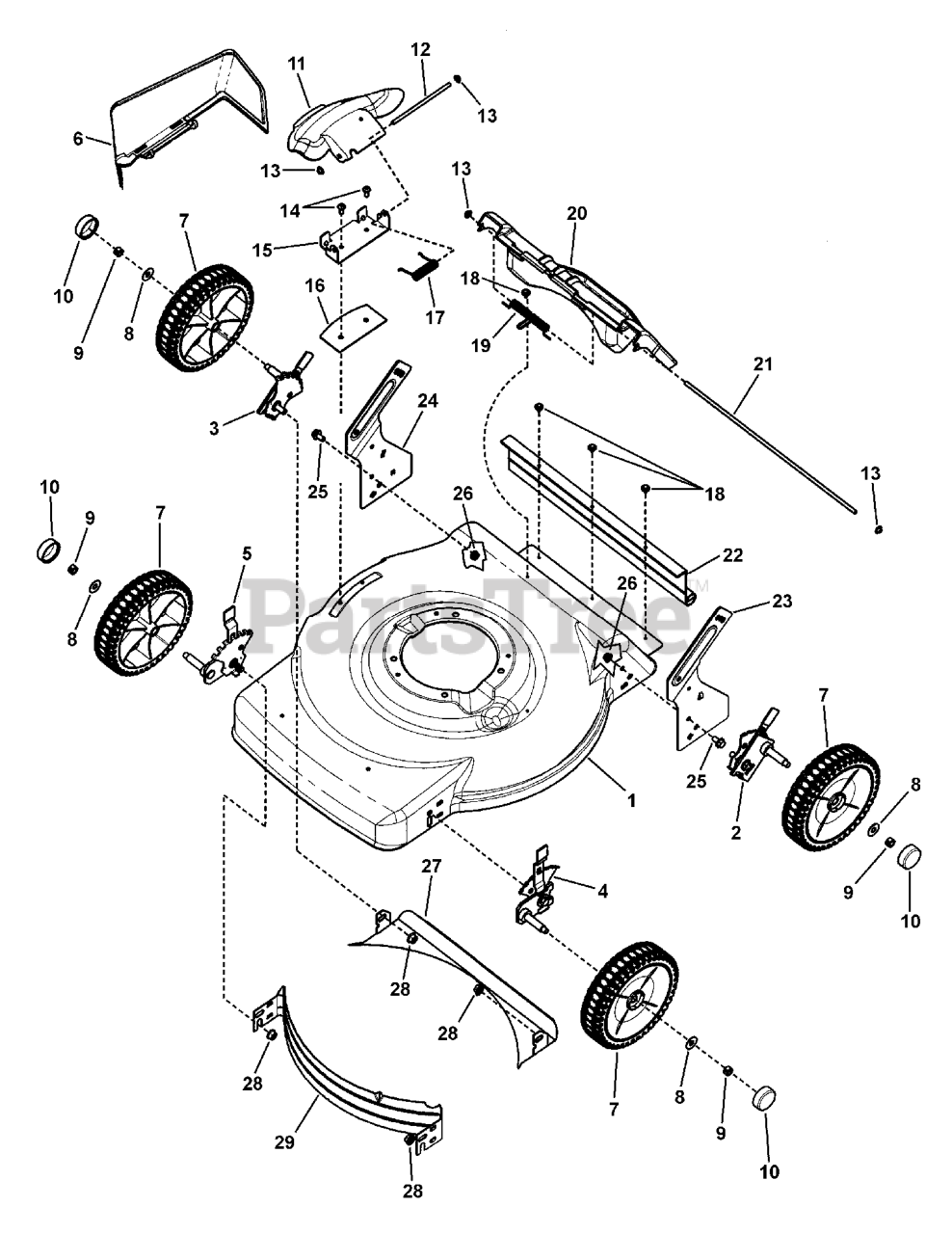

Deck Assembly (Push, Std. Wheel) Parts Diagram

  • Title

1

Murray 7300401ZYP

DECK, 22" Walk, Push 3-N-1

$259.99

$

In Stock, only 1 left!

0

2

Murray 7501066YP

ASSY, Height-of-Cut, Left Rear, Murray 7 Position

$21.99

$

Usually ships in 2-12 days

0

3

Murray 7501065YP

ASSY, Height-of-Cut, Right Rear, Murray 7 Position

$60.99

$

Usually ships in 2-12 days

0

4

Murray 7501064YP

ASSY, Height-of-Cut, Left Front, Murray 7 Position

$52.99

$

Usually ships in 2-12 days

0

5

Murray 7501063YP

ASSY, Height-of-Cut, Right Front, Murray 7 Position

$46.99

$

Usually ships in 2-12 days

0

6

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

Usually ships in 2-12 days

0

7

Murray 7501389YP

ASSY, Wheel, 8"x 2" Idle, NB Murray Tread, Gray

$40.99

$

In Stock, only 2 left!

0

8

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

9

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

10

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

11

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

12

Murray 215X19ZMA

ROD, Chute Pivot (1/4" Dia. x 5.55")
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

13

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

14

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)

$4.49

$

In Stock, Qty 20+

0

15

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

16

Murray 7300856ZMA

PLATE, Mulch, 22" RB Scott's

$6.49

$

Usually ships in 2-12 days

0

17

Murray 166X38MA

SPRING, Chute (Torsion)

$4.99

$

In Stock, only 2 left!

0

18

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)

$4.99

$

In Stock, Qty 12

0

19

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

$6.99

$

Usually ships in 2-12 days

0

20

Murray 7101243YP

DOOR, Rear Discharge, 22" Walk Mower

$51.99

$

Usually ships in 2-12 days

0

21

Murray 7101070YP

ROD, Pivot, Rear Door (1/4" Dia. X 17-1/2")

$6.49

$

Usually ships in 2-12 days

0

22

Murray 7103347YP

GUARD, Rear

$

$

Not available

23

Murray 7300668ZYP

BRACKET, Lower Handle, LH

$33.99

$

In Stock, only 1 left!

0

24

Murray 7300669ZYP

BRACKET, Lower Handle, RH

$32.99

$

Usually ships in 2-12 days

0

25

Murray 7090606SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5 YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

26

Murray 7090585MA

NUT, 5/16-18 Flange Lock, YZ

$3.99

$

In Stock, Qty 7

0

27

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

28

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

29

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0
