M 22450 (96114002500) - Murray 22" Walk-Behind Mower (2012) Deck Group (96114002500) Parts Diagram

22" Walk-Behind Mower

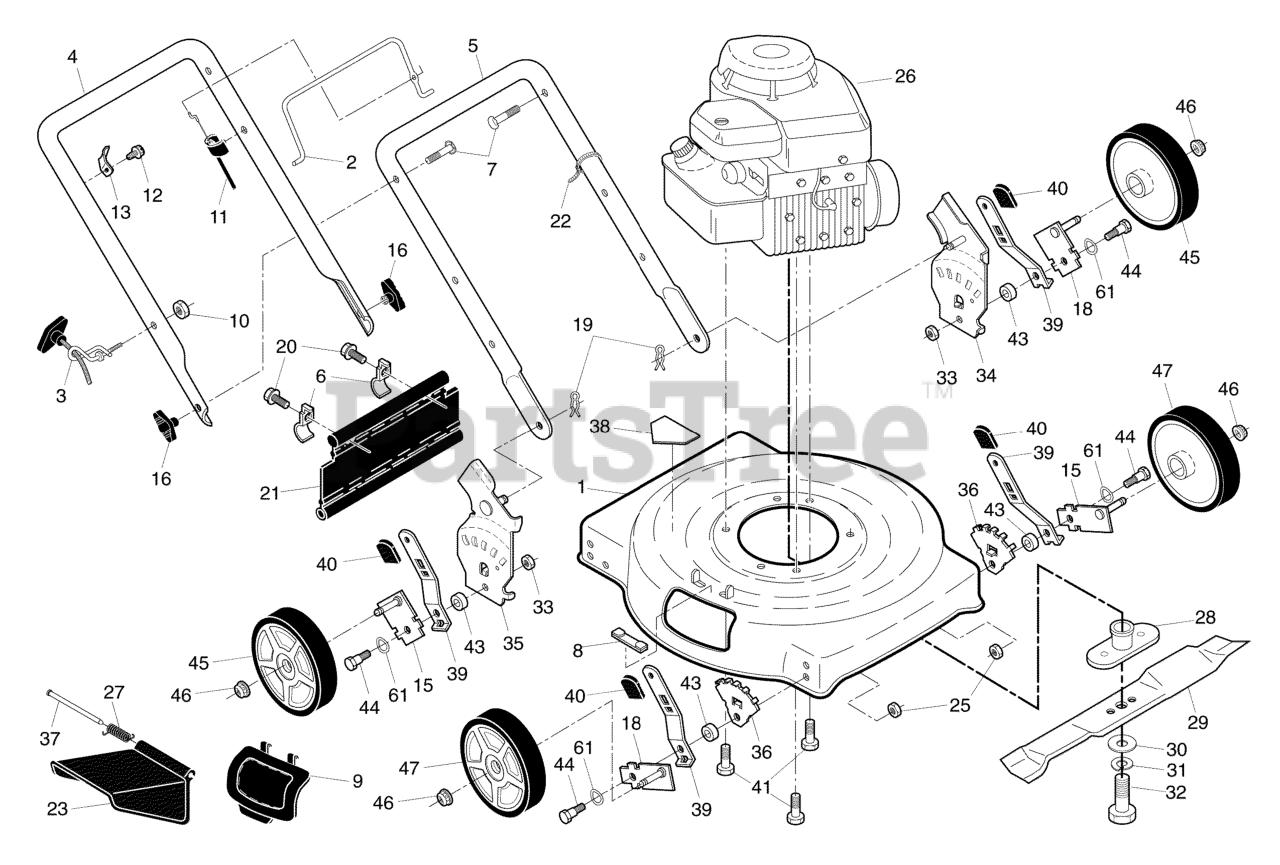

Deck Group (96114002500) Parts Diagram

  • Title

1

Murray 189302

** KIT, Housing (Includes Key Number 38)

Note: (This part is not serviced by Briggs & Stratton. )

$

$

Not available

2

Murray 709273

CONTROL BAR

$38.99

$

Usually ships in 2-12 days

0

3

Murray 709279

GUIDE, Rope

$37.99

$

Usually ships in 2-12 days

0

4

Murray 708620

HANDLE, Upper

$

$

Not available

5

Murray 708680

HANDLE, Lower

$196.99

$

Usually ships in 2-12 days

0

6

Murray 708596

BOLT, Shoulder, 5/16-18 x 1/2

$

$

Not available

7

Murray 709234

BOLT, Handle, 5/16-18

$7.49

$

Usually ships in 2-12 days

0

8

Murray 708170

CLIP, Closeout

$

$

Not available

9

Murray 708691

MULCHER PLATE

$

$

Not available

10

Murray 709054

LOCKNUT, Hex, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

11

Murray 158152

** CABLE, Engine Zone Control

Note: (This part is not serviced by Briggs & Stratton. )

$17.99

$

In Stock, only 2 left!

0

12

Murray 709195

SCREW, Hex Head, Threaded, Rolled, #10-16 x 5/8

$

$

Not available

13

Murray 709368

BRACKET, Upstop
(Superseded to 707659)

$10.99

$

In Stock, only 2 left!

0

15

Murray 709300

AXLE ARM ASSEMBLY, Left Front & Right Rear

$

$

Not available

16

Murray 709219

KNOB, Handle

$7.99

$

In Stock, only 2 left!

0

18

Murray 709301

AXLE ARM ASSEMBLY, Right Front & Left Rear

$17.99

$

Usually ships in 2-12 days

0

19

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

20

Murray 709444

SCREW, Tapping, Hex Washer Head #10-24

$5.49

$

In Stock, Qty 20+

0

21

Murray 708404

DEFLECTOR, Rear

$46.99

$

In Stock, only 2 left!

0

22

Murray 709409

Wire Tie

$7.49

$

In Stock, only 1 left!

0

23

Murray 708168

GUARD, Discharge

$

$

Not available

25

Murray 709354

NUT, Hex, Flangelock 5/16-18

$8.99

$

Usually ships in 2-12 days

0

26

Murray 09L602-1623-F1

* ENGINE, Briggs & Stratton

Note: (Engine Model: 09L602-1623-F1)

$

$

Currently unavailable

27

Murray 708393

SPRING, Torsion

$19.99

$

In Stock, Qty 9

0

28

Murray 708468

ADAPTER, Blade
(Superseded to 707856)

$39.99

$

In Stock, only 2 left!

0

29

Murray 708070

BLADE, 22"

$37.99

$

Usually ships in 2-12 days

0

30

Murray 709448

WASHER, Hardened

$9.99

$

In Stock, only 3 left!

0

31

Murray 705316

LOCKWASHER, Helical, 3/8

$5.99

$

In Stock, only 1 left!

0

32

Murray 709449

SCREW, Hex Head, 3/8-24 x 1-3/8, G8

$9.99

$

In Stock, Qty 6

0

33

Murray 705355

NUT, Hex, Flangelock 5/16-18

$13.99

$

In Stock, only 1 left!

0

34

Murray 708647

SUPPORT, Wheel Bracket, LH
(Superseded to 709787)

$30.99

$

In Stock, only 2 left!

0

35

Murray 708648

SUPPORT, Wheel Bracket, RH
(Superseded to 709840)

$34.99

$

In Stock, only 2 left!

0

36

Murray 708661

ADJUSTER, Wheel Bracket

$8.99

$

Usually ships in 2-12 days

0

37

Murray 708169

HINGE ROD

$

$

Not available

38

Murray 708373

DECAL, Danger
(Superseded to 709792)

$11.99

$

Usually ships in 2-12 days

0

39

Murray 709304

SPRING, Selector

$13.99

$

Usually ships in 2-12 days

0

40

Murray 709451

KNOB, Selector

$9.99

$

Usually ships in 2-12 days

0

41

Murray 709093

SCREW, Hex Head, Threaded, 3/8-16 x 1
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

43

Murray 709305

SPACER

$10.99

$

In Stock, only 1 left!

0

44

Murray 709307

BOLT, Shoulder, 5/16-18 x .33

$8.49

$

In Stock, only 4 left!

0

45

Murray 708613

WHEEL & TIRE ASSEMBLY, Rear

$32.99

$

Usually ships in 2-12 days

0

46

Murray 709321

NUT, Hex, Flangelock 3/8-16

$9.99

$

In Stock, only 1 left!

0

47

Murray 708058

WHEEL & TIRE ASSEMBLY, Front

$

$

Not available

53

Murray 709289

CLIP, Cable

$7.49

$

Usually ships in 2-12 days

0

61

Murray 709306

WASHER, Curved, Cylindrical

$10.99

$

In Stock, only 1 left!

0

--

Murray 708374

DECAL, Warning (not shown)

$

$

Not available

--

Murray 709266

Operator's Manual, English

$

$

Not available

--

Murray 709269

Operator's Manual, Spanish

$10.99

$

Usually ships in 2-12 days

0

--

Murray 446406

** Repair Parts Manual, English

Note: (This part is not serviced by Briggs & Stratton. )

$2.49

$

Usually ships in 3-10 days

0
