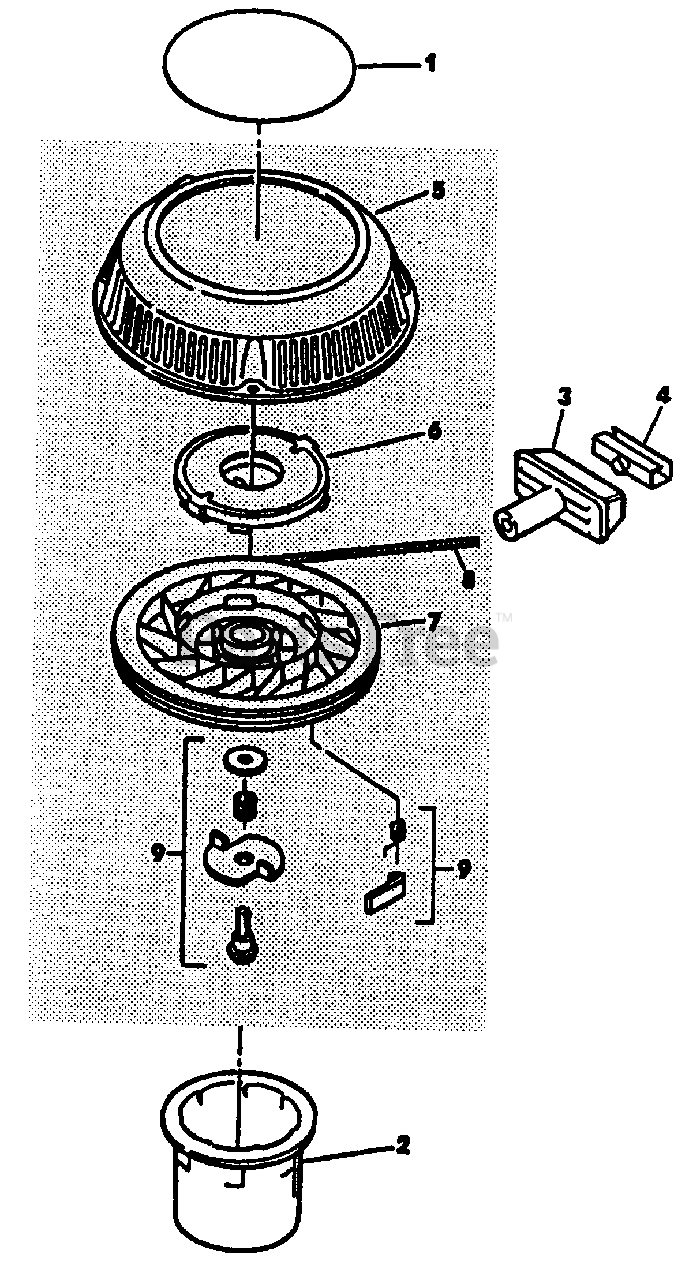

M 21 ZMR D - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) STARTER GROUP MODELS: M21ZMRB, C & D Parts Diagram

Walk-Behind Mower

STARTER GROUP MODELS: M21ZMRB, C & D Parts Diagram

  • Title
1

Lawn-Boy 614172

Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612949

Starter Hub

Note: Important Note: Replacement parts may not always be available in matching colors.

$49.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 612825

Starter Handle
(Superseded to 81-1630)

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 612824

Clip-Rope Insert

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 10

0

Lawn-Boy 684622

Starter Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 684567

Starter Housing and Shaft

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$140.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 683897

Recoil Spring and Keeper
(Superseded to 684622)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

7

Lawn-Boy 612950

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$28.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 612432

Rope
(Superseded to 613773)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$34.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 683899

Dog Kit Assembly

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$91.99

$

In Stock, Qty 7

0

Lawn-Boy 612428

Screw-Sems-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0
