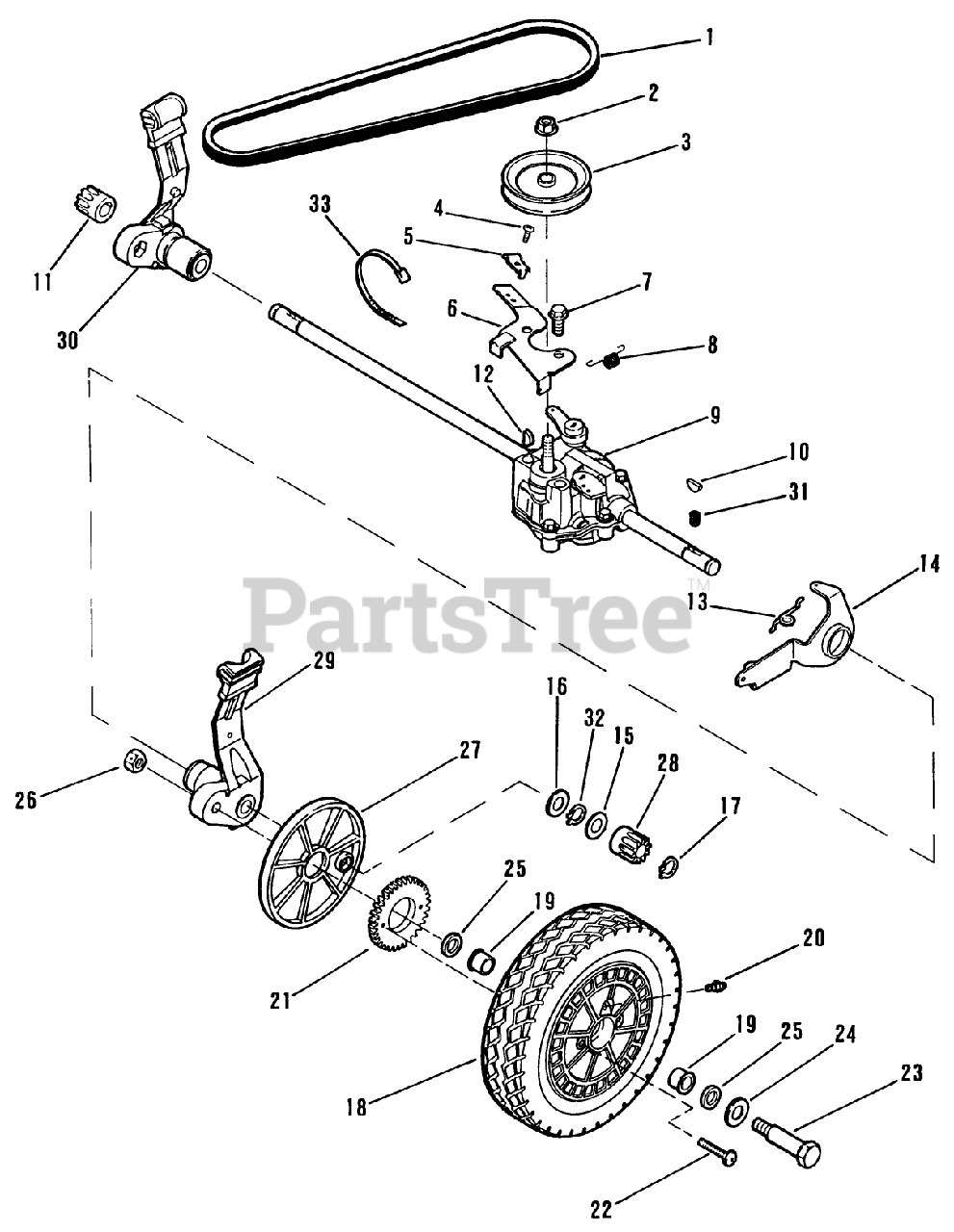

M 21 ZMR A - Lawn-Boy Walk-Behind Mower (SN: J00000001 - J99999999) (1990) Drive Group Models: M21zmra, M21bmra And M21emra Parts Diagram

Walk-Behind Mower

Drive Group Models: M21zmra, M21bmra And M21emra Parts Diagram

  • Title

1

Lawn-Boy 613842

V BELT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 613770

See Supercession: 95-1579
(Superseded to 95-1579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613445

PULLEY TRANS ADAMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$108.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613387

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613385

CLAMP-CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 684477

See Supercession: 684623
(Superseded to 684623)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 146134

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 613581

SPRING-EXTENSION

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684129

TRANSMISSION ASSEM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 612066

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 613355

PINION(R)MET ALLEG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613579

LINK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 684302

See Supercession: 684707
(Superseded to 684707)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 611878

WASHER-THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 603147

RETAINING RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684471

DISCONTINUED
(Superseded to 684576)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 684470

DISCONTINUED
(Superseded to 684576)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 684470

DISCONTINUED
(Superseded to 684576)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

19

Lawn-Boy 613839

BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 611831

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 614149

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 614150

SCREW-PH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 614139

BOLT WHEEL QUAL

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

23

Lawn-Boy 614139

BOLT WHEEL QUAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 605256

SPACER

Note: NOTE: Parts shown with bullet included with assembly above.

$2.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 605255

WASHER

Note: NOTE: Parts shown with bullet included with assembly above.

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603773

LOCKNUT

Note: NOTE: Parts shown with bullet included with assembly above.

$2.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 613512

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 613356

PINION(L)MET ALLEG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 684407

HT. ADJ. ARM AY-L

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 603615

**FITTING LINCOLN

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 603615

**FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684525

BEARING SERVICE AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 684406

HT. ADJ. ARM AY-R

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

31

Lawn-Boy 612067

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

33

Lawn-Boy 613911

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
