M 21 EMR C - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HANDLE AND REAR GRASS CATCHER GROUP MODELS: M21EMRB, C & D Parts Diagram

Walk-Behind Mower

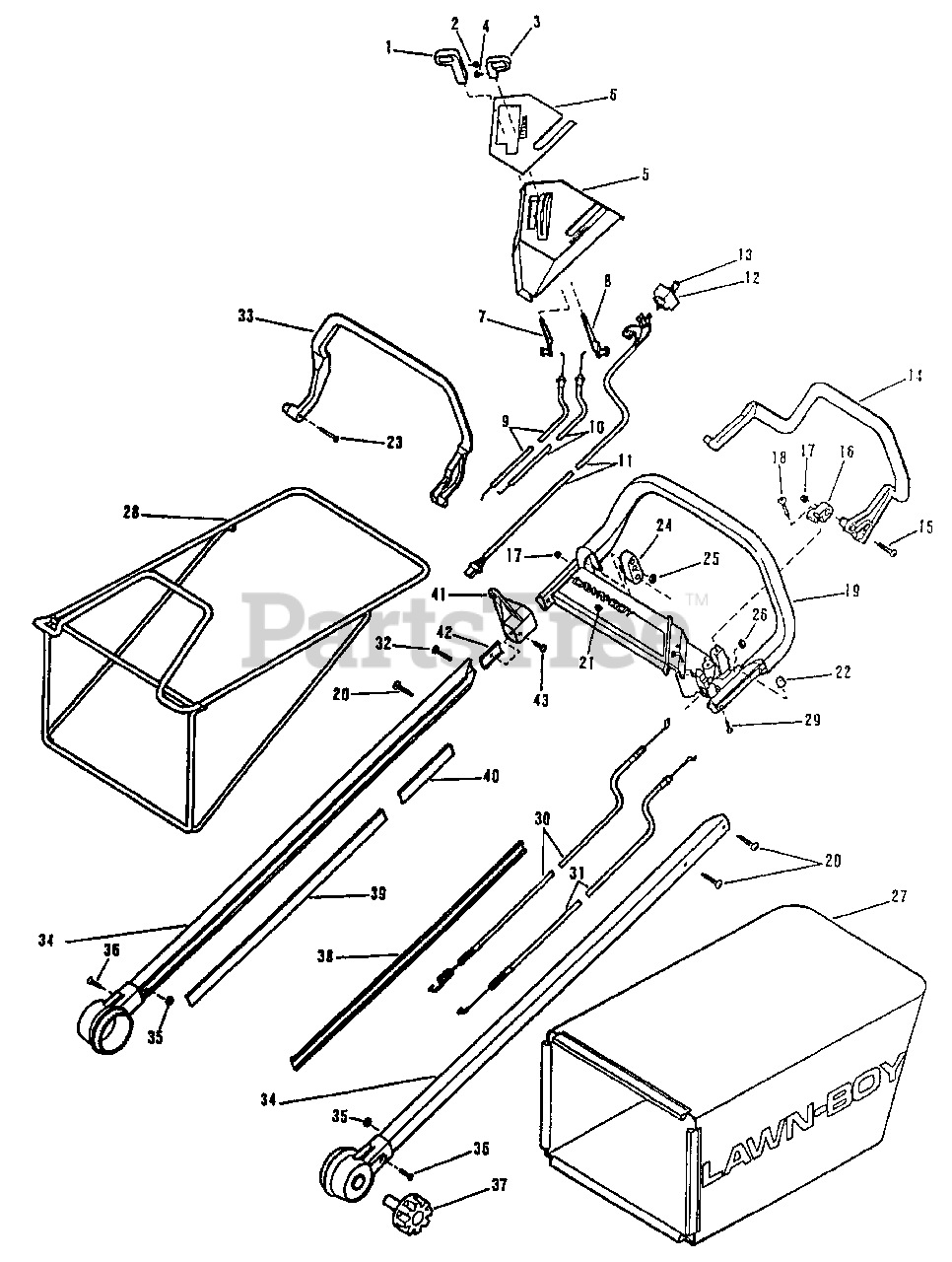

HANDLE AND REAR GRASS CATCHER GROUP MODELS: M21EMRB, C & D Parts Diagram

  • Title

1

Lawn-Boy 684400

Knob Assembly-Gear Select

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 614013

Set Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

3

Lawn-Boy 684399

Knob Assembly-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 614013

Set Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

5

Lawn-Boy 684427

Upper Cover Assy (EMRB)

Note: Important Note: Replacement parts may not always be available in matching colors.

$245.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684264

Upper Cover Assy (EMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$232.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 613479

Plate

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

7

Lawn-Boy 684445

Gear Select Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 684446

Throttle Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684212

Cable Assembly-Gear Select

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 684210

Cable Assembly-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 684238

Wire Harness

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 682727

Switch Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609269

Ignition Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 613417

Self-propelled Bail

Note: Important Note: Replacement parts may not always be available in matching colors.

$190.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 613553

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 613409

Bail Pivot

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 613406

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613551

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 684424

Handle and Decal Assembly
(Superseded to 684581)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 614023

Screw-Thread Forming

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

21

Lawn-Boy 613980

Decal-Lawn-Boy

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

22

Lawn-Boy 700790

Bumper

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 613555

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 613412

Bail Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 613550

Nut-Self-propelled Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 684189

Rear Grass Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684130

Frame

Note: Important Note: Replacement parts may not always be available in matching colors.

$237.45

$

In Stock, only 1 left!

0

29

Lawn-Boy 613549

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 684248

Cable Assembly-Self-propelled
(Superseded to 684697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$153.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 684209

Cable Assembly-Engine Brake

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 613405

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 613416

Engine Brake Bail

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 684150

Handle Knuckle and Extrusion
(Superseded to 684695)

Note: Important Note: Replacement parts may not always be available in matching colors.

$234.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 613406

Nut

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

36

Lawn-Boy 613401

Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

37

Lawn-Boy 613358

Knob-Handle Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 613552

Handle Insert-Cable Side
(Superseded to 614518)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 613408

Handle Insert

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 613601

Handle Insert

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 684151

Rope Guide

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 613393

Nut Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611499

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
