M-21 E (990754) - Homelite Walk-Behind Mower 19" Push Group (3838I01) Parts Diagram

Walk-Behind Mower

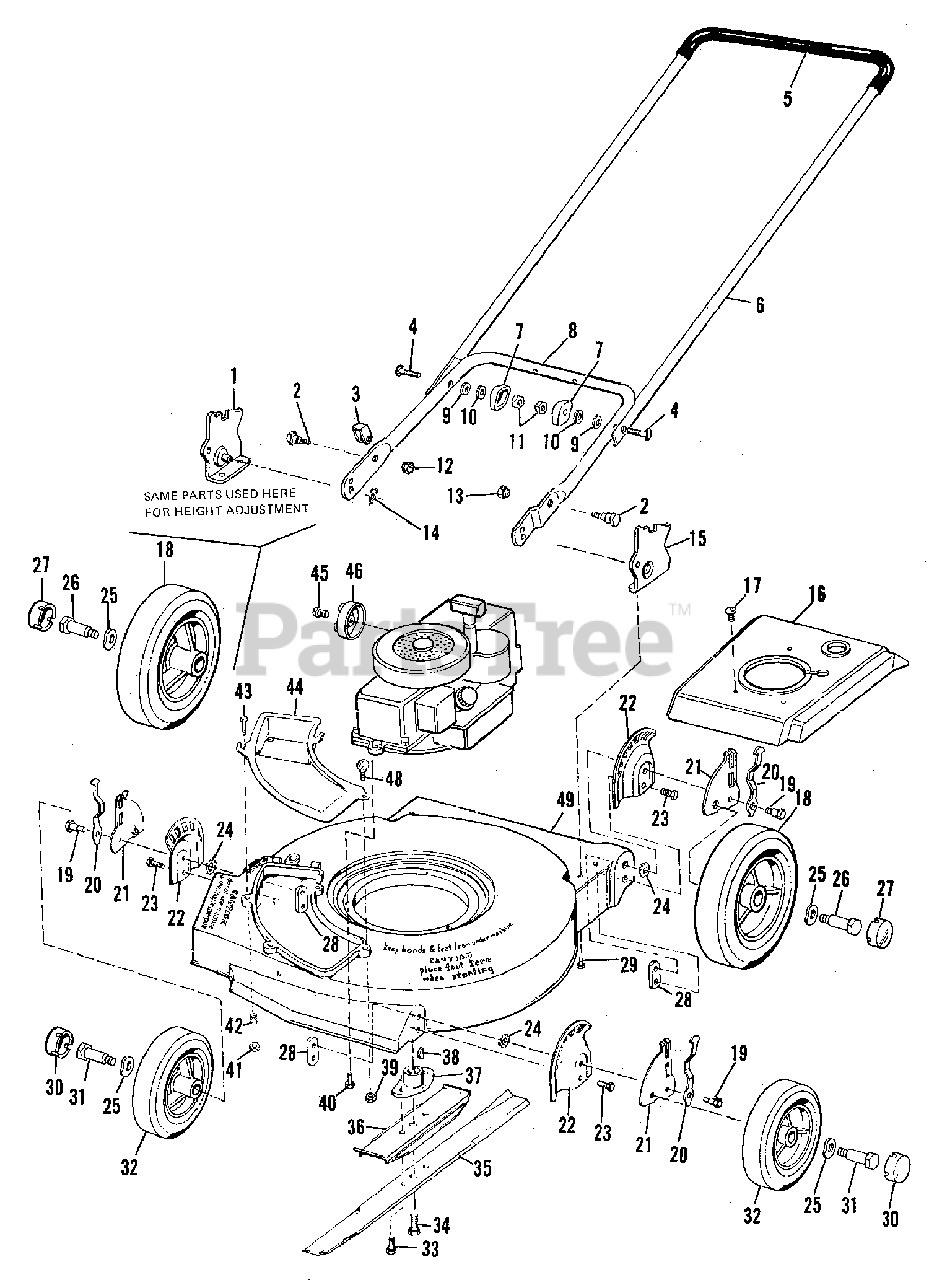

19" Push Group (3838I01) Parts Diagram

  • Title

1

Simplicity LM-01718-18

BRACKET, R.H.

$

$

Not available

2

Simplicity LM-01088-34

BOLT, Handle Latch

$

$

Not available

3

Simplicity LM-01087-27

LATCH, Handle

$

$

Not available

4

Simplicity LM-01087-78

BOLT, Curved Head

$

$

Not available

5

Simplicity LM-01087-93

TUBING, Handle

$

$

Not available

6

Simplicity LM-01088-47

HANDLE, Upper

$

$

Not available

6

Simplicity LM-01721-65

HANDLE, Upper

$

$

Not available

7

Simplicity LM-01088-48

NUT, Wing

$

$

Not available

8

Simplicity LM-01717-80

HANDLE, Lower

$

$

Not available

9

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

10

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

11

Simplicity LM-09286-98

NUT, Hex, 5/16-18

$

$

Not available

12

Simplicity LM-09233-62

NUT, Hex, 5/16-18

$

$

Not available

13

Simplicity LM-01088-35

NUT, Handle Latch

$

$

Not available

14

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

15

Simplicity LM-01718-17

BRACKET, L.H.

$

$

Not available

16

Simplicity LM-01746-56

SHROUD

$

$

Not available

17

Simplicity LM-09286-90

SCREW, Round head, 8 x 1/2

$

$

Not available

18

Simplicity LM-01701-54

WHEEL & TIRE, 8" (Rear)

$

$

Not available

19

Simplicity LM-01087-11

BOLT, Hex, Shoulder

$

$

Not available

20

Simplicity LM-01086-41

SPRING, Height Adjust

$

$

Not available

21

Simplicity LM-01086-39

ADJUSTER, Height

$

$

Not available

22

Simplicity LM-01086-40

PLATE, Adjusting

$

$

Not available

23

Simplicity LM-09182-28

SCREW, Hex, Cap, 3/8-16 x 5/8

$

$

Not available

24

Simplicity LM-09204-27

WASHER, Lock, 3/8"

$

$

Not available

25

Simplicity LM-01701-57

WASHER, Spring

$

$

Not available

26

Simplicity LM-01701-35

BOLT, Wheel (Rear)

$

$

Not available

27

Simplicity LM-01701-56

CAP, Hub (Rear)

$

$

Not available

28

Simplicity LM-01086-97

NUT, Twin Pilot

$

$

Not available

29

Simplicity LM-09274-28

SCREW, Hex, 1/4-20 x 3/8

$

$

Not available

30

Simplicity LM-01701-55

CAP, Hub (Front)

$

$

Not available

31

Simplicity LM-01087-64

BOLT, Wheel (Front)

$

$

Not available

32

Simplicity LM-01701-53

WHEEL, 6" (Front)

$

$

Not available

33

Simplicity LM-09286-97

SCREW, Hex Cap, 5/16-18 x 1

$

$

Not available

34

Simplicity LM-09221-28

SCREW, Hex Cap, 3/8-24 x 1-1/2

$

$

Not available

35

Simplicity LM-01088-50

BLADE, 19"

$

$

Not available

36

Simplicity LM-01087-04

STIFFENER, Blade

$

$

Not available

37

Simplicity LM-01087-16

ADAPTER, Blade

$

$

Not available

38

Simplicity LM-09102-24

KEY, Woodruff, #6

$

$

Not available

39

Simplicity LM-01086-99

SPEED NUT, Special

$

$

Not available

40

Simplicity LM-09286-96

BOLT, Engine Mounting, 3/8-16 x 1

$

$

Not available

41

Simplicity LM-09233-58

NUT, Hex, 1/4-20

$

$

Not available

42

Simplicity LM-01716-51

SPRING

$

$

Not available

43

Simplicity LM-01724-29

SCREW, Special

$

$

Not available

44

Simplicity LM-01716-45

PLATE, Cover

$

$

Not available

45

Simplicity LM-09280-06

SCREW, Hex, 8 x 1/2

$

$

Not available

46

Simplicity LM-01702-74

BAFFLE, Muffler

$

$

Not available

47

ENGINE, 3-1/2 HP

$

$

Not available

47

ENGINE, 3-1/2 HP

$

$

Not available

48

Simplicity LM-09286-94

SCREW, Thumb, 1/4-20 x 5/8

$

$

Not available

49

Simplicity LM-01088-31

HOUSING, 19"

$

$

Not available
