M-21 E (990754) - Homelite Walk-Behind Mower 19" Electric Group (3838I02) Parts Diagram

Walk-Behind Mower

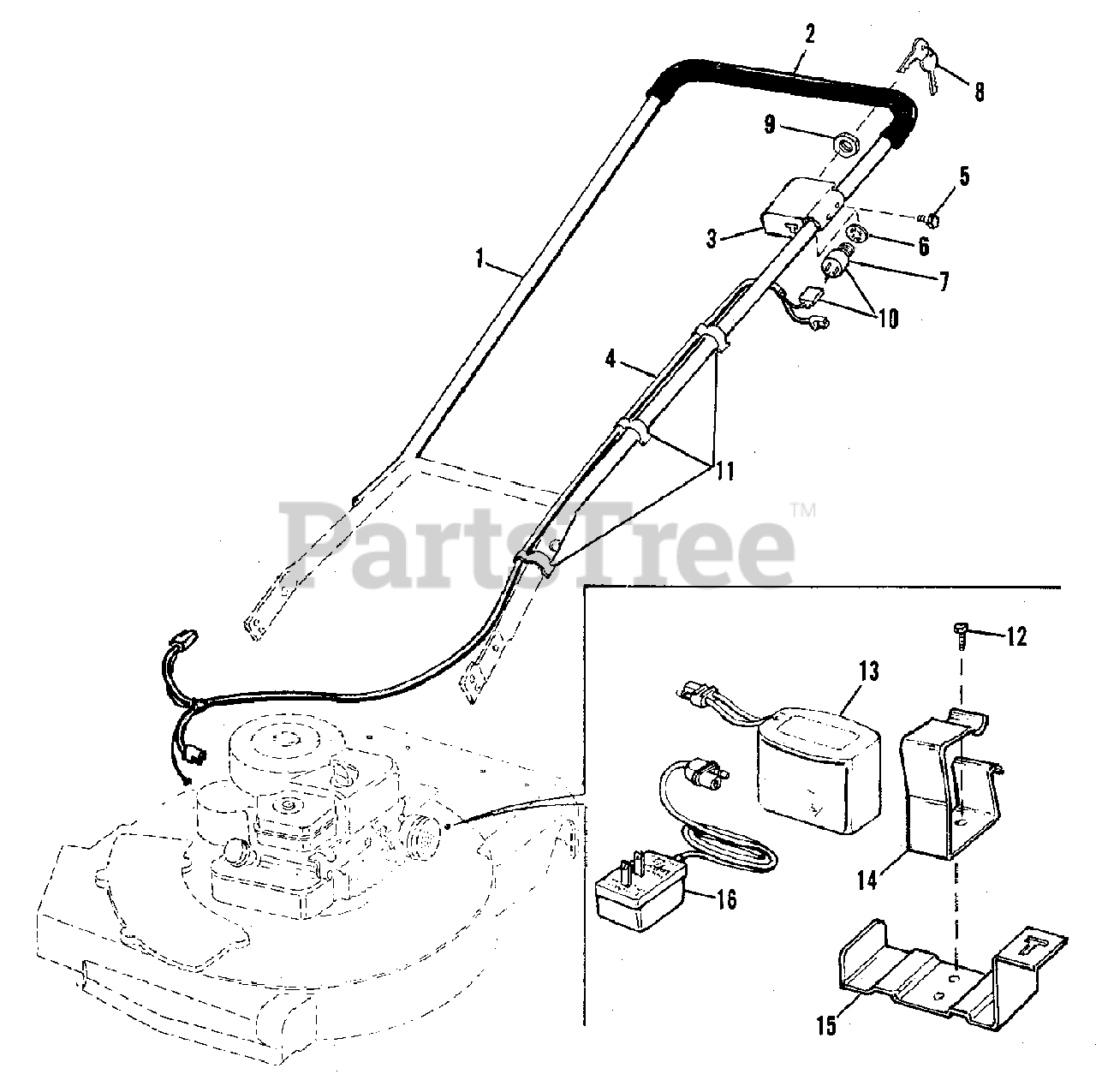

19" Electric Group (3838I02) Parts Diagram

  • Title
1

Simplicity LM-01721-65

HANDLE, Upper

$

$

Not available

2

Simplicity LM-01087-93

TUBING, Handle

$

$

Not available

3

Simplicity LM-01714-77

BRACKET, Switch Mounting

$

$

Not available

$

$

Not available

5

Simplicity LM-09274-28

SCREW, Hex, 1/4-20 x 3/8

$

$

Not available

6

Simplicity LM-09286-36

WASHER, Lock, 9/16

$

$

Not available

7

Simplicity LM-01222-01

SWITCH, Starter

$

$

Not available

8

$

$

Not available

9

Simplicity LM-01222-35

NUT, Hex, Special

$

$

Not available

10

Simplicity LM-01718-02

SWITCH & HARNESS

$

$

Not available

11

Simplicity LM-01088-12

CLAMP, Handle Cable

$

$

Not available

12

Simplicity LM-09276-63

SCREW, Pan, 10-24 x 3/8

$

$

Not available

$

$

Not available

14

Simplicity LM-01702-98

CLIP, Spring, Battery

$

$

Not available

15

Simplicity LM-01714-76

SUPPORT, Battery

$

$

Not available

16

Simplicity LM-01724-31

CHARGER, Battery

$

$

Not available
