M 21 BMR C - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HOUSING AND SHROUD GROUP MODELS: M21BMRB, C & D Parts Diagram

Walk-Behind Mower

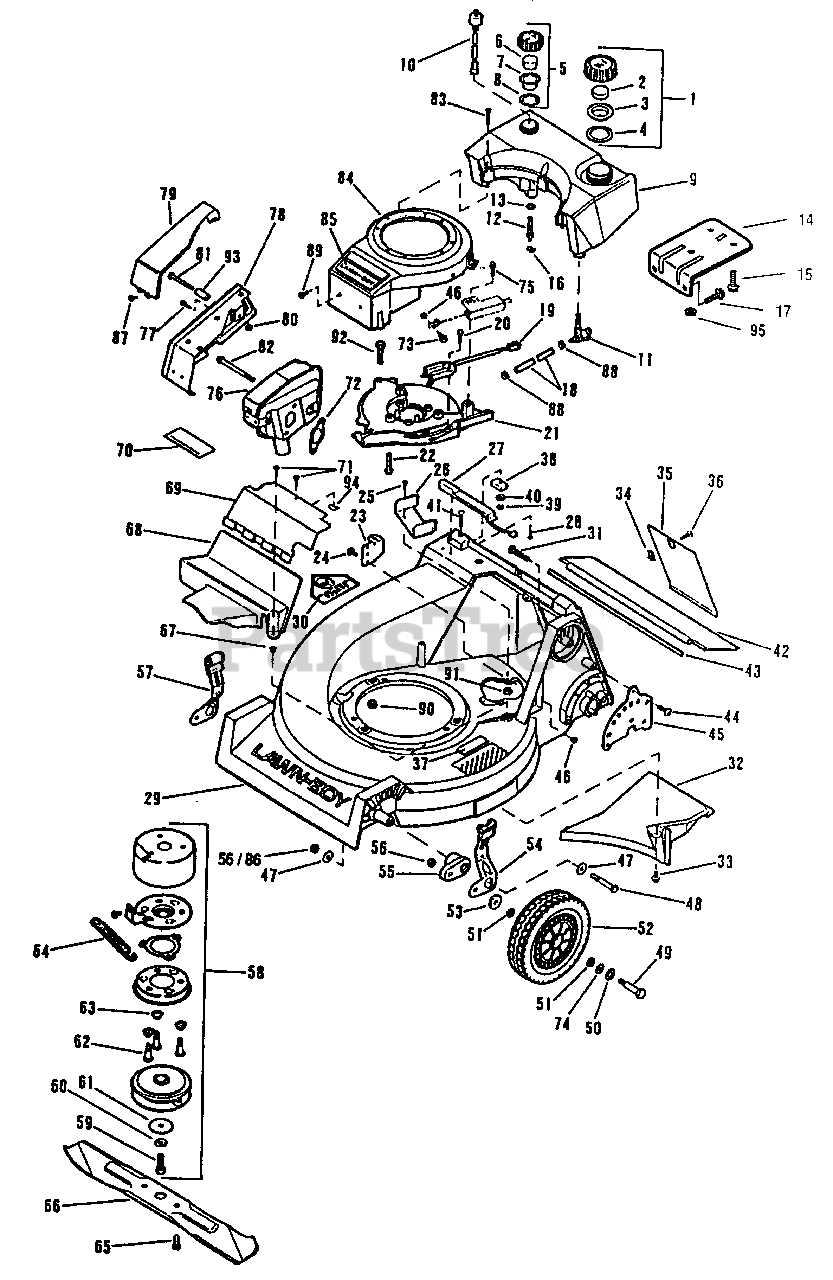

HOUSING AND SHROUD GROUP MODELS: M21BMRB, C & D Parts Diagram

  • Title

1

Lawn-Boy 684104

Fuel Cap Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$5.49

$

In Stock, Qty 11

0

3

Lawn-Boy 613310

Cover
(Superseded to 614271)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$4.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613311

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 684105

Oil Cap Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611114

Filter

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$3.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 613312

Cover
(Superseded to 614272)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

8

Lawn-Boy 613313

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

9

Lawn-Boy 684375

Fuel/Oil Tank (BMRB)
(Superseded to 93-1208)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684395

Fuel/Oil Tank (BMRC & D)
(Superseded to 93-1208)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 684376

Switch-Low Oil (BMRB)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$112.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684357

Switch-Low Oil (BMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

11

Lawn-Boy 684093

Fuel Shut-Off Valve

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

12

Lawn-Boy 684336

Oil Fining Assy

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

13

Lawn-Boy 613948

O-Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 614173

Fuel Tank Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 614181

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 613516

Clamp-Oil Hose

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 613337

Screw-Fuel Tank Bracket to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613531

Fuel Line

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 684182

Brake Interlock Switch

Note: Important Note: Replacement parts may not always be available in matching colors.

$241.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 613504

Screw-Interlock Switch to Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 613273

Engine Mounting Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613500

Screw-Mounting Plate to Engine

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 613580

Cable Anchor
(Superseded to 115-4453)

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 609891

Screw-Anchor to Housing
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 606691

Screw-Belt Guide to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613582

Belt Guide

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 684366

Switch Assy-Bag Lock (BMRB)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684192

Switch Assy-Bag Lock (BMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 613749

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 684467

Housing Assy (BMRB & D)
(Superseded to 684688)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1458.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 684229

Housing Assy (BMRC)
(Superseded to 684689)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$6.49

$

In Stock, Qty 6

0

31

Lawn-Boy 613321

Handle Mounting Bolt

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

32

Lawn-Boy 613289

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$39.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$3.49

$

In Stock, only 3 left!

0

Lawn-Boy 613910

Washer-R.H. Handle Mounting
(Superseded to 5-3177)

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy 613340

Speednut

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 613346

Access Door

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 613339

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 613624

Decal-Foot Pad

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 684193

Magnet Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 130450

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 613625

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 303724

Screw (BMRB & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 605119

Screw (BMRC)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 613322

Trailing Shield
(Superseded to 99-6408)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 613381

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

45

Lawn-Boy 613323

Height Adjust Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

47

Lawn-Boy 610361

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 613320

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 614139

Bolt-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 605256

Washer-Wheel Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

51

Lawn-Boy 605255

Felt Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 683179

Wheel and Tire Assembly-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$104.99

$

In Stock, only 2 left!

0

53

Lawn-Boy 608834

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 684220

Knob and Spring Assembly-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 613917

Front Height Adj Arm (BMRB & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$91.99

$

Usually ships in 3-6 days

0

Lawn-Boy 613319

Front Height Adj Arm (BMRC)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 610358

Nut (BMRB)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

Lawn-Boy 610358

Nut (BMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

57

Lawn-Boy 684219

Knob and Spring Assembly-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 684092

Clutch and Brake Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611417

Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

60

Lawn-Boy 611413

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

61

Lawn-Boy 611412

Washer

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$30.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 611399

Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

63

Lawn-Boy 611418

Spring-Compression

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

64

Lawn-Boy 611415

Spring-Extension

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$58.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 611398

Screw-Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 683683

21" Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

67

Lawn-Boy 611380

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

68

Lawn-Boy 613532

Lower Drive Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 684547

Upper Drive Cover w/Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 613840

Decal-Warning

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

71

Lawn-Boy 608075

Screw (BMRB)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

Lawn-Boy 608997

Screw (BMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

72

Lawn-Boy 613266

Exhaust Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 611318

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

75

Lawn-Boy 611774

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

76

Lawn-Boy 684091

Muffler
(Superseded to 684579)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

77

Lawn-Boy 700056

Screw-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 684157

Muffler Guard Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$173.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 613378

Muffler Cover

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

80

Lawn-Boy 613329

Pushnut

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$1.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 613372

Screw-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 613282

Screw-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 613330

Screw-Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 684429

Shroud and Applique Assembly
(Superseded to 93-1219)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

85

Lawn-Boy 614041

Applique

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with a bullet included with assembly above.

$

$

Not available

86

Lawn-Boy 603773

Nut (BMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

87

Lawn-Boy 613576

Screw-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 613489

Clamp-Fuel Line

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

89

Lawn-Boy 613281

Screw-Shroud
(Superseded to 3274-31)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

90

Lawn-Boy 608311

Locknut-Mting Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

91

Lawn-Boy 611258

Locknut-Belt Guide to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

92

Lawn-Boy 612640

Screw-Mting Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

93

Lawn-Boy 613371

Spacer-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

94

Lawn-Boy 613341

Speednut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

95

Lawn-Boy 700098

Nut-Hex Flange

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
