M 2046 (13AO785T058) - Murray 46" Lawn Tractor (2012) Transmission Drive Assembly Parts Diagram

46" Lawn Tractor

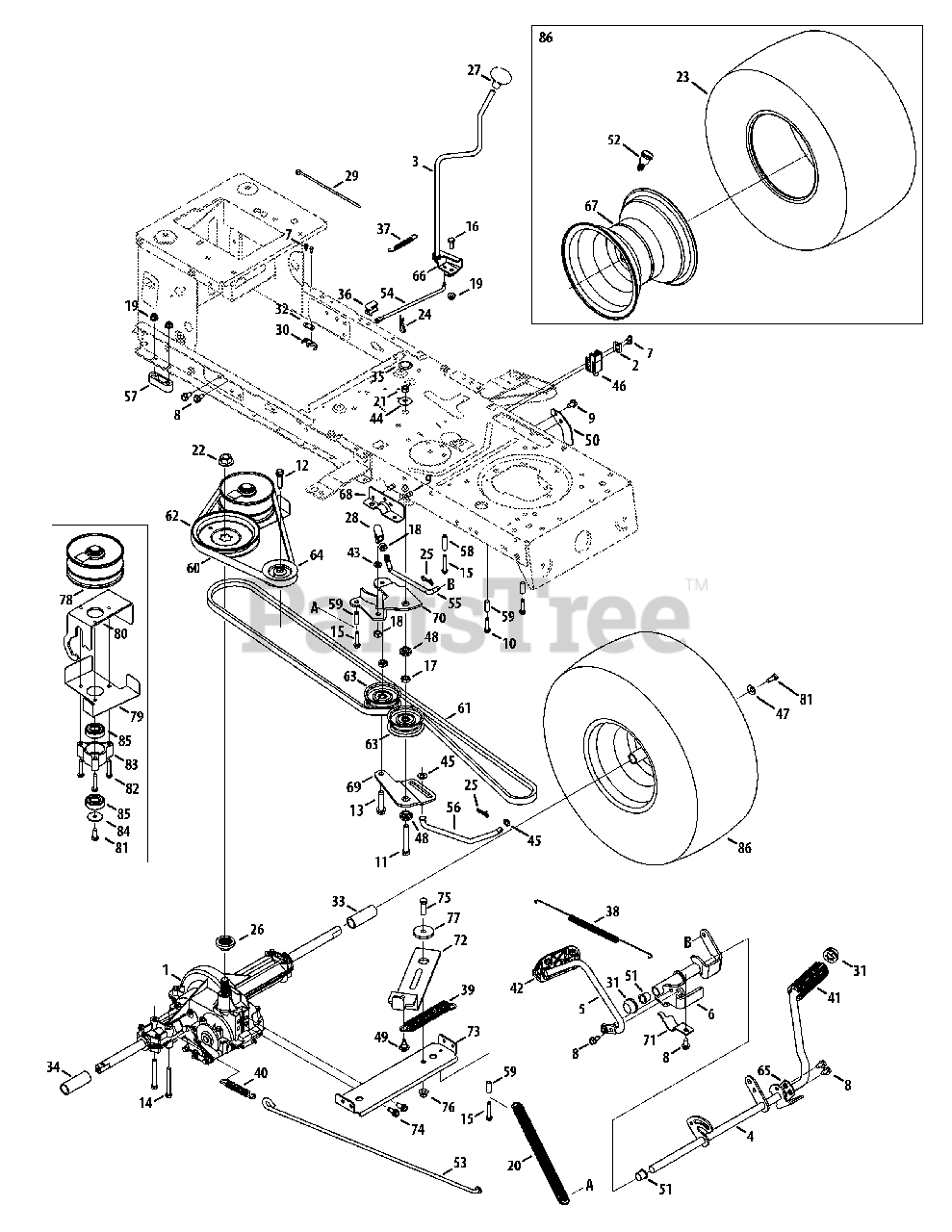

Transmission Drive Assembly Parts Diagram

  • Title

1

MTD 918-04566

Drive Assembly, autodrive
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

MTD 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

3

MTD 647-04035

Lever Asm, Shaft

$37.99

$

Usually ships in 3-6 days

0

4

MTD 647-04201A-0637

Pedal Asm, drive, autodrive
(Superseded to 947-04201B-0637)

$49.99

$

Usually ships in 3-6 days

0

5

MTD 647-04203A-0637

Pedal Asm, cont, autodrive

$20.99

$

In Stock, Qty 8

0

6

MTD 683-04736

Bracket Asm, pedal, autodrive

$40.99

$

In Stock, only 2 left!

0

7

MTD 710-0227

Screw, ab, #8-18, 0.500, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-04484

Screw, tt, 5/16-18, .750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0604A

Screw, tt, 5/16-18, .0625, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0809

Screw, tt, 1/4-20, 1.250, Hxindwsh

$6.99

$

In Stock, Qty 19

0

11

MTD 710-0859

Screw, 3/8-16, 2.50, Gr5, Std

$6.99

$

In Stock, Qty 16

0

12

MTD 710-1007

Screw, ttsems, 3/8-16, 1.500, Hxlwsh

$6.49

$

In Stock, only 1 left!

0

13

MTD 710-1858A

Screw, tt, 3/8-16, 1.750, hxindwsh

$3.99

$

In Stock, Qty 11

0

14

MTD 710-1266

Screw, 5/16-18, Gr5, Std

$9.99

$

Usually ships in 3-6 days

0

15

MTD 710-1325

Screw, tt, 1/4-20, 1.625, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-3008

Screw, 5/16-18, .75, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

17

MTD 912-0240

Nut, jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0241

Nut, hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

19

MTD 712-04063

Nut, flglk, 5/16-18, Grf, nylon

$3.99

$

In Stock, Qty 5

0

20

MTD 732-04764

Spring, extn, .56 x 12.05
(Superseded to 753-08301)

$17.99

$

Usually ships in 3-6 days

0

21

MTD 912-3000

Nut, hexlck, 3/8-16, Centerlock
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

22

MTD 712-0700

Nut, flg, 9/16-18, Gr2

$10.99

$

In Stock, only 1 left!

0

23

MTD 734-1730-0901

Tire, 20 X 8 X 8 Sq Shoulder

$99.99

$

In Stock, only 1 left!

0

24

MTD 914-0209

Pin, cotter Int- .125 Dia

$3.99

$

In Stock, only 2 left!

0

25

MTD 714-04040

Pin, cot, bow-Tie

$1.49

$

In Stock, Qty 20+

0

26

MTD 718-04407

Hub, Pulley, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

27

MTD 720-04028

Knob, Shaft

$10.99

$

In Stock, only 4 left!

0

28

MTD 923-3018

Ball, joint

$16.99

$

In Stock, Qty 20+

0

29

MTD 725-0157

Cable, tie, 3/16

$3.99

$

In Stock, Qty 20+

0

30

MTD 725-1644

Switch, Spring, short

$9.99

$

In Stock, Qty 11

0

31

MTD 726-0214

Cap, push 5/8

$10.99

$

Usually ships in 3-6 days

0

32

MTD 926-0320

Plate, Insulator Nut

$6.99

$

In Stock, Qty 11

0

33

MTD 731-04602

Slev, 58 X..821 X 3.3125

$6.49

$

In Stock, only 1 left!

0

34

MTD 731-04604

Slev, 758 X .821 X 2.4375

$6.99

$

In Stock, only 3 left!

0

35

MTD 731-06330

Plug, deck Hole, 7/8

$4.99

$

Usually ships in 3-6 days

0

36

MTD 731-06894

Bearing

$6.49

$

In Stock, only 1 left!

0

37

MTD 732-04488

Spring, ext, .38 Od X 3.25 Lg

$6.49

$

In Stock, only 3 left!

0

38

MTD 732-04612

Spring, extn, .70 Dia X 12.00 Lg

$16.99

$

In Stock, only 1 left!

0

39

MTD 732-04616B

Spring, extn, .97 Od X 6.18 Lg

$14.99

$

In Stock, only 2 left!

0

40

MTD 732-0716D

Spring, extn, .59 Od X 4.00 Lg

$13.99

$

In Stock, only 1 left!

0

41

MTD 735-0239

Pad, foot, 4.0 Long
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

42

MTD 735-04272

Pad, cont

$7.99

$

Usually ships in 3-6 days

0

43

MTD 936-0169

Washer, lock, 3/8, Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

44

MTD 736-3040

Washer, Flat, .406 x 1.920 x .060

$6.49

$

In Stock, Qty 8

0

45

MTD 936-0185

Washer, flat, .375 X .738 X .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

46

MTD 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 14

0

47

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0372B

Spacer, shldr, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

49

MTD 738-04091A

Screw, shldr, .43x.29, Tt, 5/16-18

$3.99

$

In Stock, Qty 20+

0

50

MTD 783-06807

Plate, Stop Pedal

Variations

MTD 783-06807-0637

PLATE-PEDAL STOP - POWDER BLACK (0637)

$4.49

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

51

MTD 741-0495

Bearing, flg, .630 Idx .695 Od X .60

$4.99

$

In Stock, Qty 20+

0

52

MTD 934-0255

Valve, tubeless Air

$4.49

$

In Stock, Qty 20+

0

53

MTD 747-05188

Rod, brake, lt-5 Trans

$12.99

$

In Stock, only 1 left!

0

54

MTD 747-05243

Rod, shift, lt-5 Stretch 46"

$11.99

$

In Stock, only 3 left!

0

55

MTD 747-05596

Rod, adj, Idler, 3/8

$13.99

$

In Stock, only 1 left!

0

56

MTD 747-05415

Rod, trans, footpedal Bypass

$14.99

$

In Stock, only 1 left!

0

57

MTD 948-0334

Spacer, T-Axle 68

$10.99

$

In Stock, only 1 left!

0

58

MTD 750-04456

Spacer, .260 X .372 X 1.420 Lg

$7.49

$

In Stock, only 3 left!

0

59

MTD 750-0566A

Spacer, .260 X .375 X 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

60

MTD 954-04208

Belt, V-Type, 5l X 40.9 Lg Poly
(Superseded to 954-04208A)

$45.99

$

In Stock, Qty 20+

0

61

MTD 954-0467A

Belt, V-Type, 5l, 90.93, Poly

$50.99

$

In Stock, Qty 20+

0

62

MTD 956-04002

Pulley, V-Type, 7.25 Dia Spun

$27.99

$

In Stock, Qty 19

0

63

MTD 756-04224

Pulley, Idler, flat

$26.99

$

In Stock, Qty 20+

0

64

MTD 756-04325

Pulley, Idler

$24.99

$

In Stock, Qty 20+

0

65

MTD 783-04536B-0637

Bracket, ped, support

$6.49

$

Usually ships in 3-6 days

0

66

MTD 783-04595A

Bracket, Shaft, adj

$10.99

$

In Stock, only 4 left!

0

67

MTD 634-04369-0662

Rim

$165.99

$

Usually ships in 3-6 days

0

68

MTD 783-06562A-0637

Bracket, ped, frame Rh

$4.99

$

Usually ships in 3-6 days

0

69

MTD 783-06769

Bracket, Idler, center Dbl

$9.99

$

In Stock, only 1 left!

0

70

MTD 783-06592A

Bracket, Idler, dbl Autodrive
(Superseded to 783-06592B)

$16.99

$

In Stock, only 1 left!

0

71

MTD 783-06641A

Bracket, supt, pedal Stap

$8.49

$

Usually ships in 3-6 days

0

72

MTD 753-06662

Bracket Asm, Idler

$22.99

$

In Stock, only 4 left!

0

73

MTD 683-04606

Bracket Asm, autodrive
(Superseded to 783-06568A)

$23.99

$

Usually ships in 3-6 days

0

74

MTD 710-1260A

Screw, tt, 5/16-18, 0.750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

75

MTD 710-3005

Screw, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 10

0

76

MTD 712-04065

Nut, flglk, 3/8-16, Grf, nylon

$3.99

$

In Stock, Qty 20+

0

77

MTD 738-04162A

Spacer, shldr, .8840 X .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

78

MTD 956-04015A

Pulley Asm, var Speed
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

79

MTD 683-04522

Keepr Asm, belt
(Superseded to 783-06227A)

$16.99

$

Usually ships in 3-6 days

0

80

MTD 683-04612-0637

Bracket Asm, Variable
(Superseded to 783-06587A)

$34.99

$

Usually ships in 3-6 days

0

81

MTD 710-0627

Screw, 5/16-24, .750, Gr5, Lock

$4.49

$

In Stock, Qty 20+

0

82

MTD 710-0778

Screw, tt, 1/4-20, 1.500, Hxindwsh

$4.49

$

In Stock, only 1 left!

0

83

MTD 718-04261

Cup, Bearing

$20.99

$

Usually ships in 3-6 days

0

84

MTD 736-0362

Washer, flat, .330 X 1.25 X .06

$4.49

$

In Stock, Qty 7

0

85

MTD 941-0600

Bearing, ball

$25.99

$

In Stock, Qty 20+

0

86

MTD 634-0104-0911

Wheel, 20 x 8 x 8

$144.99

$

In Stock, only 1 left!

0
