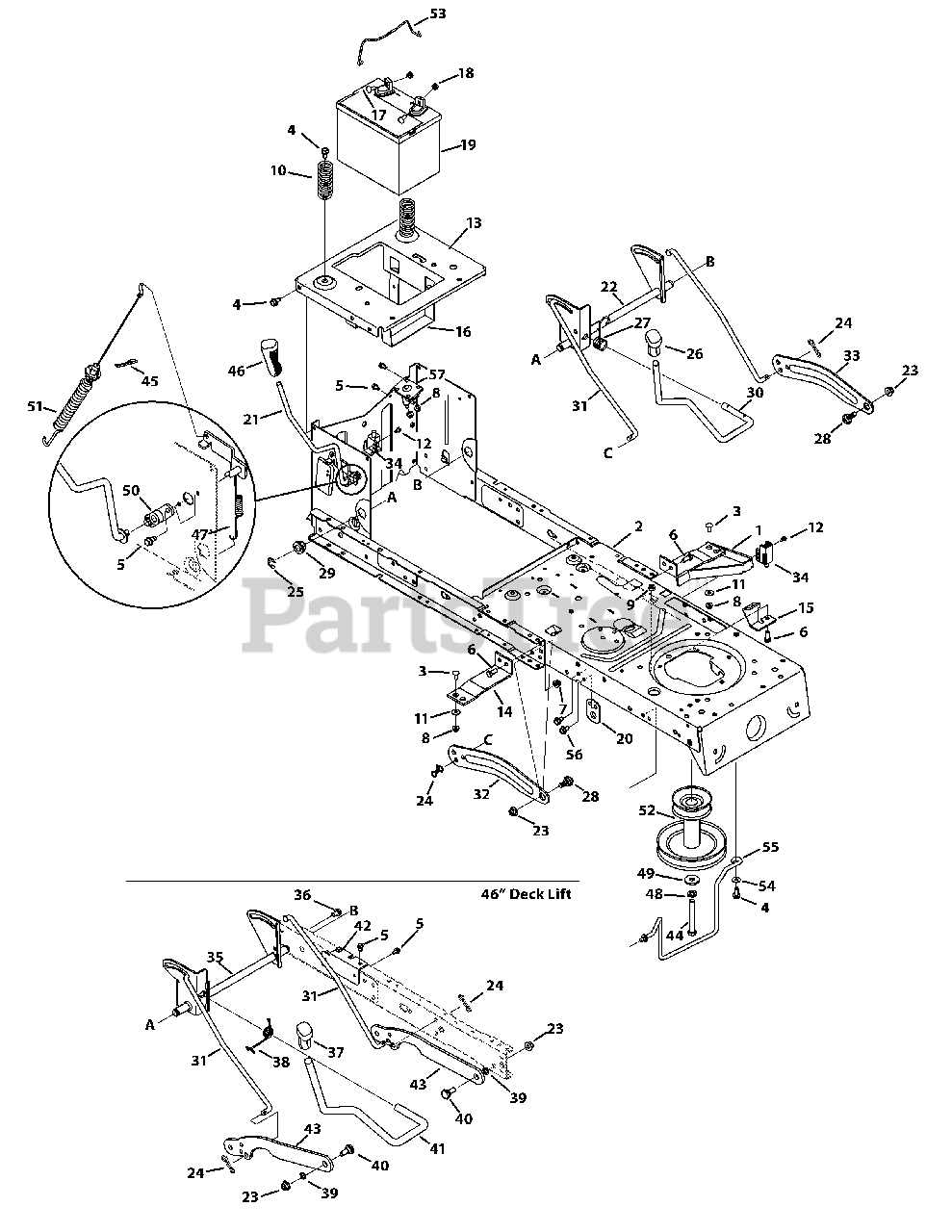

M 2046 (13AO785T058) - Murray 46" Lawn Tractor (2012) Frame & PTO Lift Parts Diagram

46" Lawn Tractor

Frame & PTO Lift Parts Diagram

  • Title

1

MTD 683-04195-0637

Support Bracket

$42.99

$

Usually ships in 3-6 days

0

2

MTD 683-04649-0637

Frame Assembly
(Superseded to 683-04649B)

$159.99

$

Usually ships in 3-6 days

0

3

MTD 710-0134

Screw Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 912-0429

Hexlock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

10

MTD 732-04035

Compression Spacer, 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

11

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

12

MTD 738-04237A

Shoulder Spacer, 10-32 x .500

$6.49

$

In Stock, Qty 7

0

13

MTD 783-04548D-0637

Seat Frame Bracket

$58.99

$

Usually ships in 3-6 days

0

14

MTD 783-04637-0637

Running Board Bracket

$16.99

$

Usually ships in 3-6 days

0

15

MTD 783-04753-0637

Support Frame Bracket

$79.99

$

Usually ships in 3-6 days

0

16

MTD 783-04869A-0637

Battery Bracket

$9.49

$

In Stock, Qty 20+

0

17

MTD 710-04666

Hex Head Flange, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

18

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

MTD 925-1707D

Battery, 230 CCA

$

$

Not available

20

MTD 783-04536B-0637

Support Bracket

$6.49

$

Usually ships in 3-6 days

0

21

MTD 647-04096A-0637

PTO Handle Assembly

$41.99

$

In Stock, only 1 left!

0

22

MTD 683-04155A-0637

Lift Assembly, 42"

$55.99

$

Usually ships in 3-6 days

0

23

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

25

MTD 716-0106A

E Ring

$5.49

$

In Stock, only 2 left!

0

26

MTD 720-0311

Handle Grip, 1/2

$15.99

$

In Stock, only 1 left!

0

27

MTD 732-04225

Torsion Springing

$12.99

$

Usually ships in 3-6 days

0

28

MTD 738-04130

Shoulder Bolt, 3/8-16 x .625 x .175
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

29

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

30

MTD 747-04282

Deck Lift Handle

$35.99

$

Usually ships in 3-6 days

0

31

MTD 747-04393

Lift Rod

$23.99

$

In Stock, Qty 9

0

32

MTD 783-04494C-0637

42" Lift Arm, RH

$21.99

$

In Stock, Qty 12

0

33

MTD 83-04711C-0637

42" Lift Arm, LH

$

$

Currently unavailable

34

MTD 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 13

0

35

MTD 683-04334-0637

Lift Assembly, 46"

$54.99

$

In Stock, only 2 left!

0

36

MTD 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

37

MTD 720-0298

Handle Grip, 5/8

$43.99

$

Usually ships in 3-6 days

0

38

MTD 732-04438

Torsion Spring Handle, 46"

$10.99

$

Usually ships in 3-6 days

0

39

MTD 936-0140

Flat Washerer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

40

MTD 938-0380

Shoulder Bolt, 3/8-16 x .500 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

41

MTD 747-04653

46" Lift Handle
(Superseded to 747-04653A)

$45.99

$

In Stock, only 4 left!

0

42

MTD 783-05389-0637

Frame Brace Bracket
(Superseded to 783-05389A-0637)

$8.49

$

Usually ships in 3-6 days

0

43

MTD 783-0678C-0637

Lift Deck Link

$29.99

$

In Stock, only 1 left!

0

44

MTD 710-04608

Hex Screw, 7/16-20 x 3.25

$6.99

$

In Stock, Qty 7

0

45

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

46

MTD 720-04049A

Handle Grip, 3/8

$16.99

$

Usually ships in 3-6 days

0

47

MTD 732-04276A

PTO Springing Extension

$9.99

$

In Stock, only 1 left!

0

48

MTD 936-0171

Regular Duty Washerer Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

49

MTD 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 7

0

50

MTD 741-04119A

PTO Bearing

$4.99

$

In Stock, Qty 10

0

51

MTD 946-04173C

Deck Engage Cable
(Superseded to 946-04173E)

$59.99

$

In Stock, Qty 15

0

52

MTD 756-04196A

Engine Pulley, 3.39 x 6.12

$90.99

$

In Stock, only 1 left!

0

53

MTD 683-04448-0637

Battery Hold Down Rod

$10.99

$

In Stock, Qty 14

0

54

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

55

MTD 683-04414-0637

46" Belt Keeper

$25.99

$

Usually ships in 3-6 days

0

56

MTD 710-0604A

Screw, 5/16-18.0 x .625

$4.49

$

In Stock, Qty 20+

0

57

MTD 725-04439

12V Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0
