M 200-46 (RZT-46) (17ADCACT058) - Murray Select 46" Zero-Turn Mower (2015) Seat Adjustment Parts Diagram
Select 46" Zero-Turn Mower

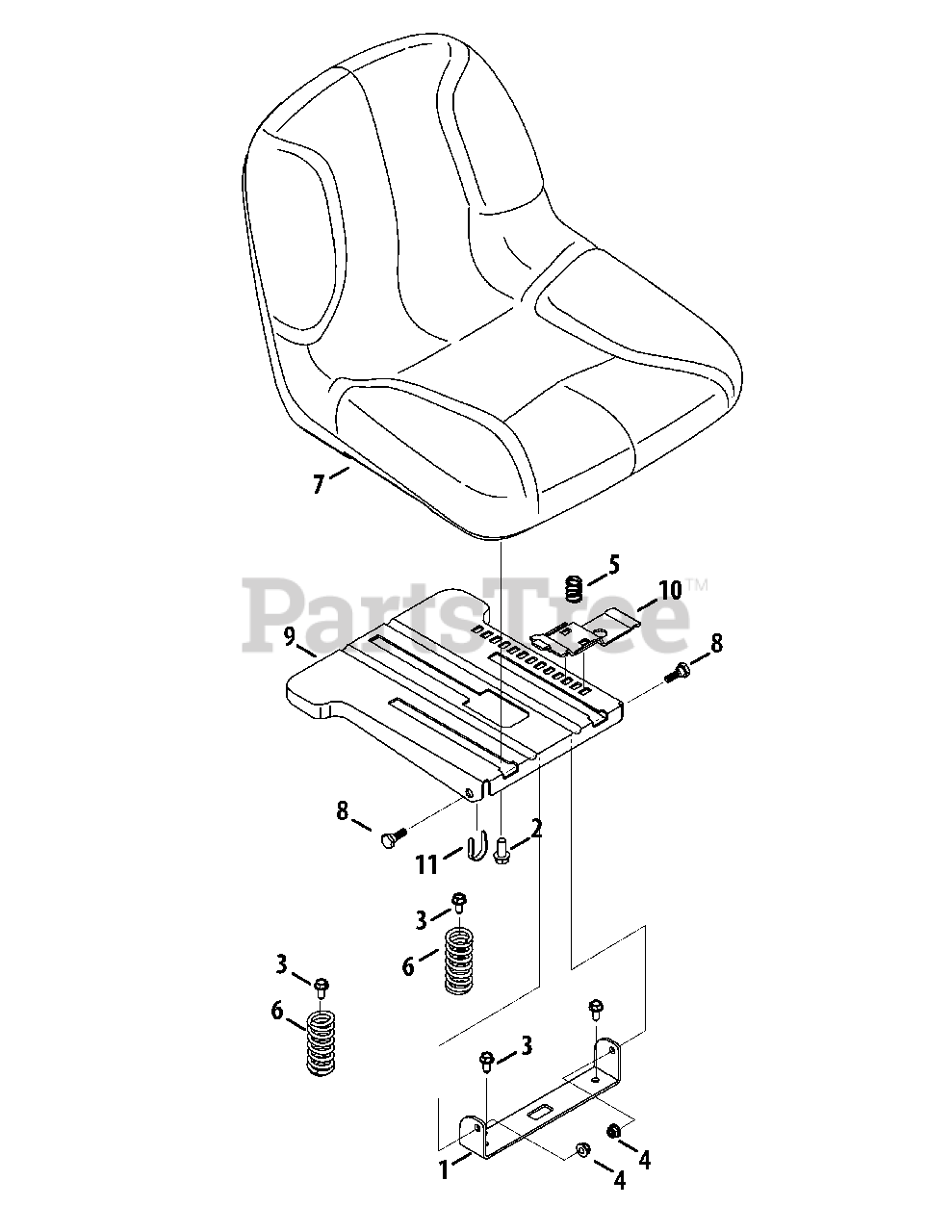

Seat Adjustment Parts Diagram
MTD 703-08734-0691
Seat Bracket
$
$
Not available
MTD 710-04482
Hex Flange Bolt, 3/8-16 x .875
$4.49
$
In Stock, Qty 16
MTD 710-04484
Hex Washer Screw, 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
MTD 712-04063
Flange Lock Nut, 5/16-18
$3.99
$
In Stock, Qty 20+
MTD 732-04563
Compression Spring, .68 x 1.065 x .055
$5.49
$
In Stock, only 2 left!
MTD 732-04849
Compression Spring, 1.50 x 3.90 x .200
$13.99
$
In Stock, only 2 left!
$285.99
$
Usually ships in 3-6 days
$4.49
$
In Stock, Qty 20+
$68.99
$
Usually ships in 3-6 days
MTD 783-06050
Seat Adjustment Lever
$10.99
$
In Stock, only 1 left!
MTD 783-06448
Clip
$5.99
$
In Stock, only 3 left!
