M 200-46 (RZT-46) (17ADCACT058) - Murray Select 46" Zero-Turn Mower (2014) Operators Platform Parts Diagram

Select 46" Zero-Turn Mower

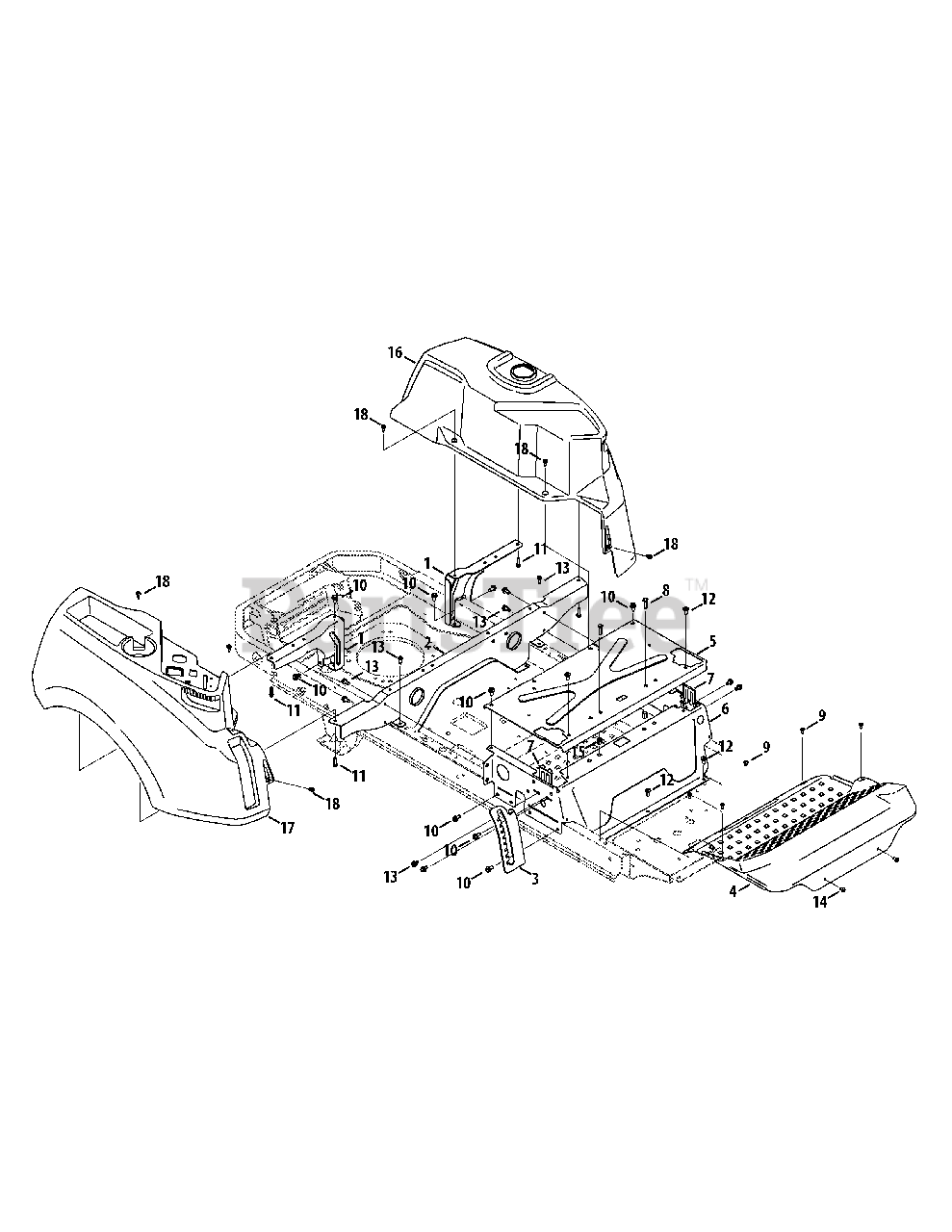

Operators Platform Parts Diagram

  • Title

1

MTD 703-08720A-0691

Rear Tank Bracket
(Superseded to 703-08720C-0691)

$26.99

$

Usually ships in 3-6 days

0

2

MTD 703-09332A-0691

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

3

MTD 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

4

MTD 703-08902A-0691

Floor Board

$167.99

$

Usually ships in 3-6 days

0

5

MTD 703-09045B-0691

Seatbox Plate
(Superseded to 703-09045G-0691)

$45.99

$

Usually ships in 3-6 days

0

6

MTD 703-09320-0691

Seat Frame
(Superseded to 703-09320F-0691)

$76.99

$

Usually ships in 3-6 days

0

7

MTD 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

8

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-05070

Self Tapping Screw, 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

10

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

Usually ships in 3-6 days

0

12

MTD 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

13

MTD 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

14

MTD 710-06096

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

Usually ships in 3-6 days

0

15

MTD 728-05012

Nut, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

16

MTD 931-08687A

LH Console
(Superseded to 931-08687B)

$116.99

$

In Stock, only 1 left!

0

17

MTD 931-08771A

RH Console
(Superseded to 931-13513)

$99.99

$

In Stock, Qty 5

0

18

MTD 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0
