M-19 (990859) - Homelite Walk-Behind Mower Catcher Group (3838I03) Parts Diagram

Walk-Behind Mower

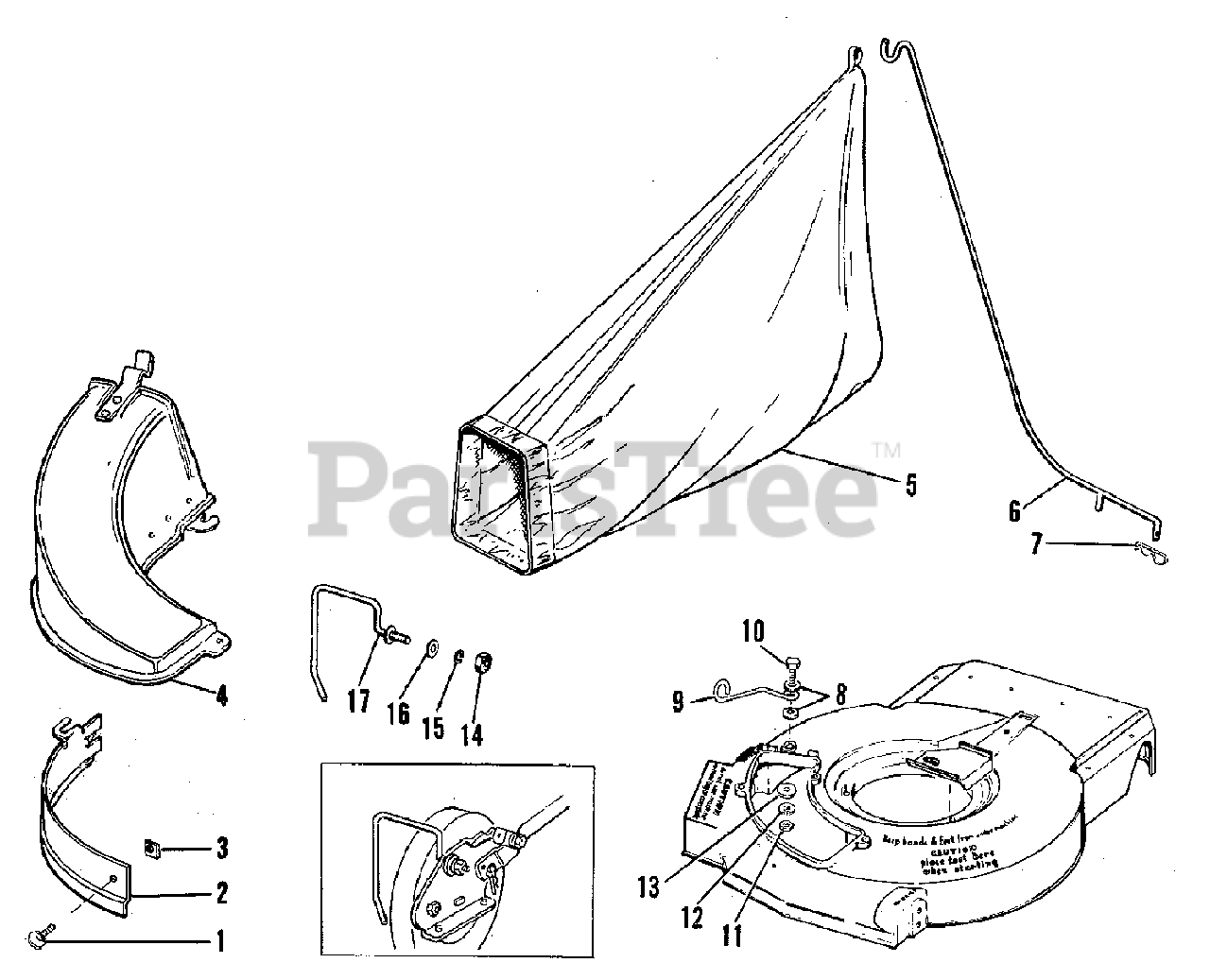

Catcher Group (3838I03) Parts Diagram

  • Title
1

Simplicity LM-09286-94

SCREW, Thumb, 1/4-20 x 5/8

$

$

Not available

$

$

Not available

3

$

$

Not available

$

$

Not available

$

$

Not available

6

Simplicity LM-01087-86

ROD, Bag Support

$

$

Not available

7

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

8

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

9

$

$

Not available

10

Simplicity LM-09173-96

SCREW, Hex Cap

$

$

Not available

11

Simplicity LM-09157-41

NUT, Hex, 1/4-20

$

$

Not available

12

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

$

$

Not available

14

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

15

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

16

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

17

$

$

Not available
