M 1530SE (1697343-01) - Snapper 30" Snow Thrower, 14.5hp (2020) Engine & Frame Group Parts Diagram

30" Snow Thrower, 14.5hp

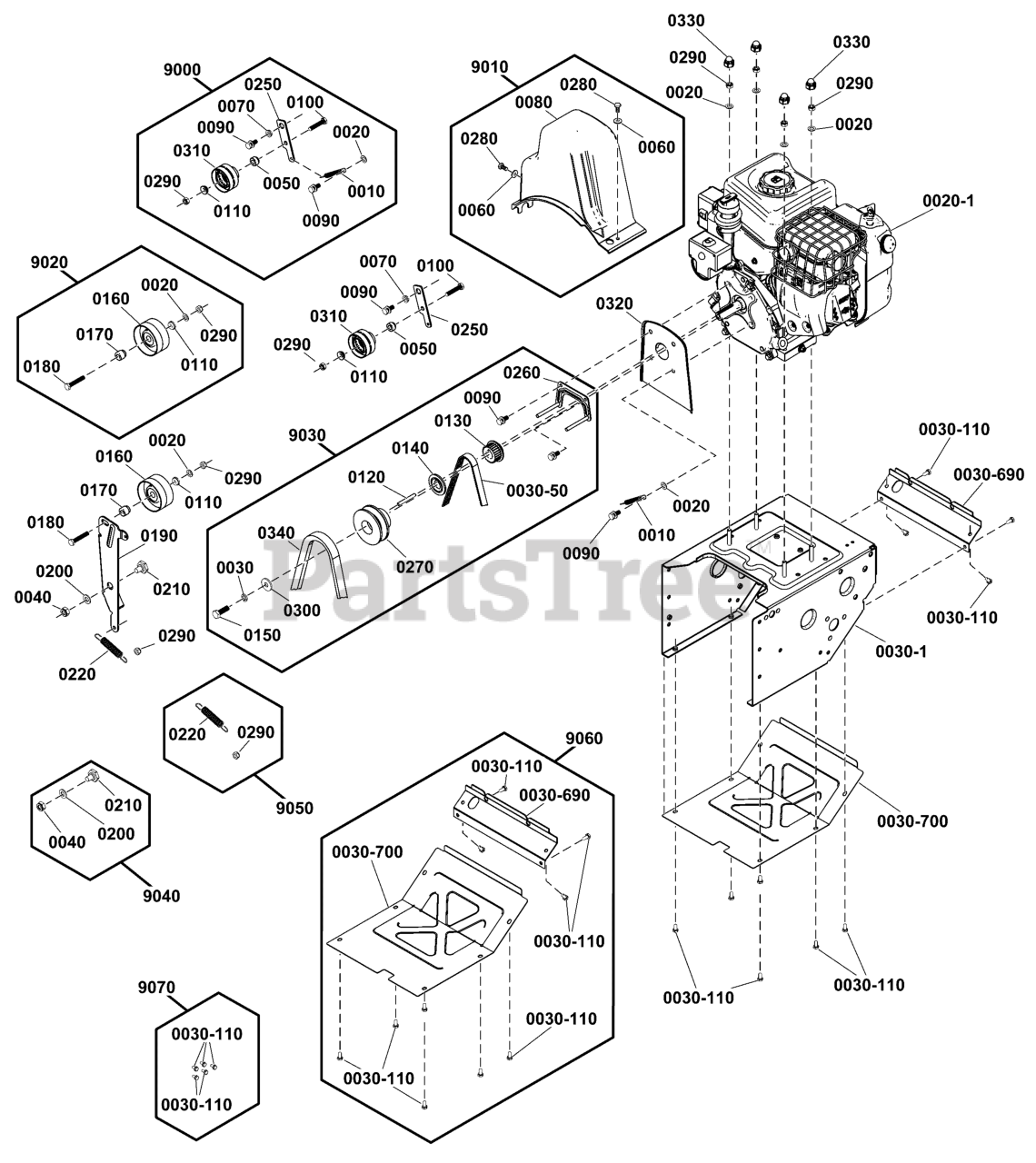

Engine & Frame Group Parts Diagram

  • Title

0020-1

Snapper 15C107-0037-F8

ENGINE, 11.5 Gross TP Briggs & Stratton

Note: (Engine Model: 15C107-0037-F8) (Refer to Note: *)

$

$

Currently unavailable

0020

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0030-1

MOTOR BOX ASSEMBLY, Red

$

$

Not available

0190

IDLER, Auger

$

$

Not available

0290

NUT, Lock, M8

$

$

Not available

0320

Snapper 1688082

KIT, WATER SHIELD, 306/420CC

$32.99

$

Usually ships in 2-12 days

0

0330

Cap, Nut, M8

$

$

Not available

9000

Snapper 84006460

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 0010, 0020, 0050, 0070, 0090, 0100, 0110, 0250, 0290, 0310)

$

$

Currently unavailable

0010

SPRING, Idler

$

$

Not available

0020

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0050

SPACER, Idler Pulley

$

$

Not available

0070

SPACER, Idler Plate, Small

$

$

Not available

0090

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

0100

SCREW, Hex Head, M8 X 40

$

$

Not available

0110

SPACER, Idler Pulley

$

$

Not available

0250

BRACKET, Idler

$

$

Not available

0290

NUT, Lock, M8

$

$

Not available

0310

PULLEY, Idler

$

$

Not available

9010

Snapper 84003838

KIT, Belt Cover

Note: (Incl. Ref. Nos. 0060, 0080, 0280)

$42.99

$

Usually ships in 2-12 days

0

0060

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0080

COVER, Belt

$

$

Not available

0280

SCREW, Hex Head, M6 X 12

$

$

Not available

9020

Snapper 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 0020, 0110, 0160, 0170, 0180, 0290)

$37.99

$

Usually ships in 2-12 days

0

0020

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0110

SPACER, Idler Pulley

$

$

Not available

0160

PULLEY, Idler

$

$

Not available

0170

SPACER, Sleeve, Idler Pulley

$

$

Not available

0180

SCREW, Hex Head, M8 X 45

$

$

Not available

0290

NUT, Lock, M8

$

$

Not available

9030

Snapper 770818

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 0030, 0030-50, 0090, 0120, 0130, 0140, 0150, 0260, 0270, 0300, 0340)

$

$

Not available

0030

WASHER, M10, Split Lock

$

$

Not available

0030-50

Snapper 770799

BELT, Traction Drive

$28.99

$

In Stock, only 4 left!

0

0090

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

0120

Snapper 84004762

KEY, Flat, 5 X 4.7 X 50

$3.49

$

Usually ships in 2-12 days

0

0130

PULLEY, Drive

$

$

Not available

0140

SPACER, Belt Wheel

$

$

Not available

0150

SCREW, Hex Head, M10 X 30

$

$

Not available

0260

GUIDE, Belt

$

$

Not available

0270

PULLEY, Auger

$

$

Not available

0300

WASHER, 10x28x3, Flat

$

$

Not available

0340

Snapper 770797

BELT, Auger Drive

$79.99

$

In Stock, Qty 5

0

9040

Snapper 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 0040, 0200, 0210)

$8.99

$

Usually ships in 2-12 days

0

0040

NUT, Lock, M10

$

$

Not available

0200

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0210

SCREW, Hex Head, M10 X 13

$

$

Not available

9050

Snapper 770806

SPRING, Idler Pulley

Note: (Incl. Ref. Nos. 0220, 0290)

$4.49

$

In Stock, only 1 left!

0

0220

SPRING, Idler

$

$

Not available

0290

NUT, Lock, M8

$

$

Not available

9060

Snapper 770823

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 0030-110, 0030-690, 0030-700)

$60.99

$

Usually ships in 2-12 days

0

0030-110

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0030-690

COVER, Back, Black

$

$

Not available

0030-700

COVER, Bottom, Black

$

$

Not available

9070

Snapper 771904

KIT, Hardware

Note: (Incl. Ref. No. 0030-110)

$6.99

$

Usually ships in 2-12 days

0

0030-110

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

--

Snapper 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 2 left!

0
