M 1530SE (1697343-01) - Snapper 30" Snow Thrower, 14.5hp (2020) Auger Housing Group Parts Diagram

30" Snow Thrower, 14.5hp

Auger Housing Group Parts Diagram

  • Title

0140

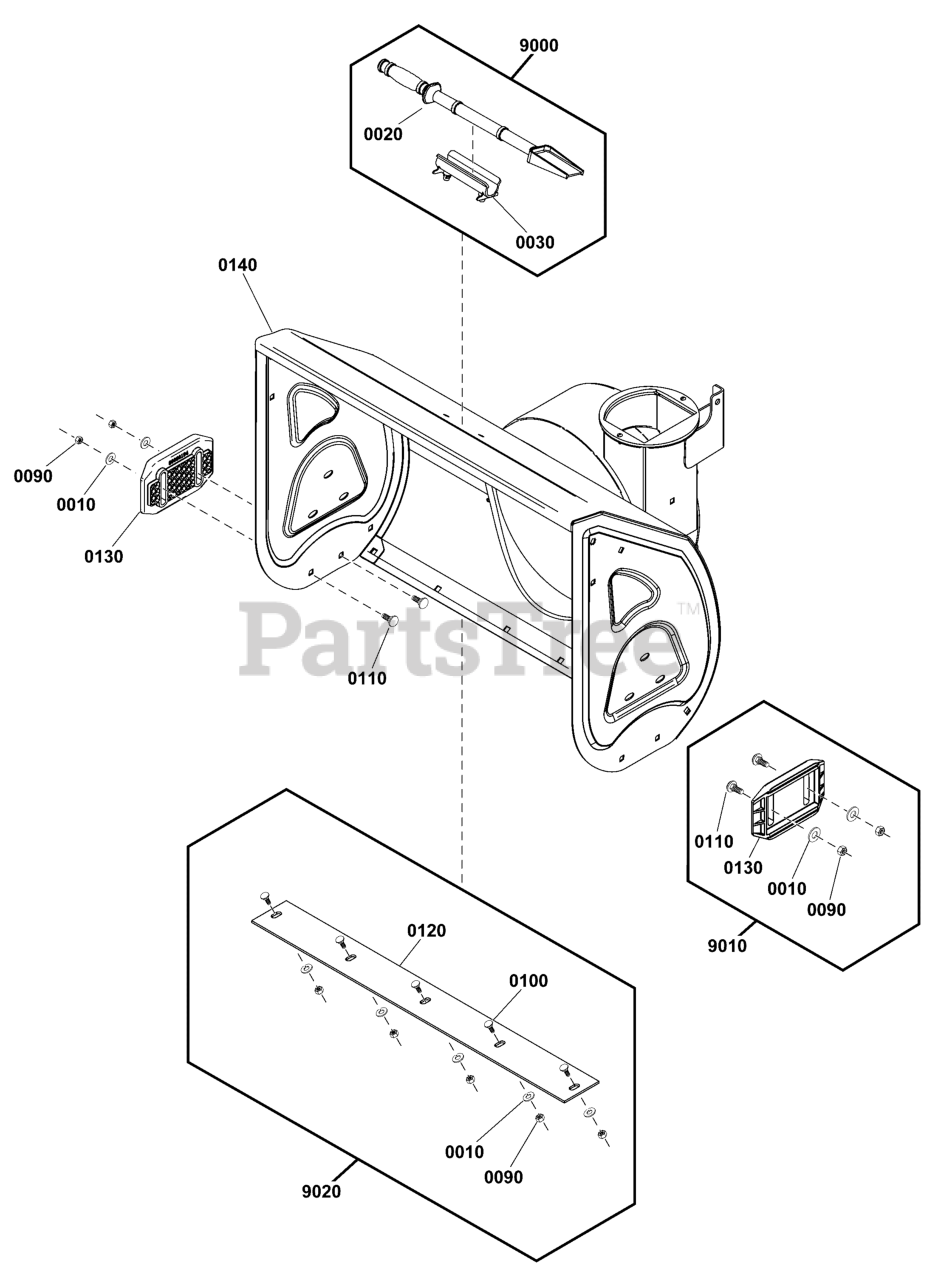

AUGER HOUSING

Note: (Refer to Note:*)

$

$

Not available

9000

Snapper 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 0020, 0030)

$28.99

$

Usually ships in 2-12 days

0

0020

SHOVEL, Cleanout

$

$

Not available

0030

CLAMP, Cleanout

$

$

Not available

9010

Snapper 84003710

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 0010, 0090, 0110, 0130)

$45.99

$

In Stock, Qty 7

0

0010

WASHER, 8x22x2, Flat

$

$

Not available

0090

NUT, Lock, M8

$

$

Not available

0110

BOLT, Carriage, M8 X 25

$

$

Not available

0130

SHOE, Skid, Reversible

$

$

Not available

9020

Snapper 84004787

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 0010, 0090, 0100, 0120)

$54.99

$

Usually ships in 2-12 days

0

0010

WASHER, 8x22x2, Flat

$

$

Not available

0090

NUT, Lock, M8

$

$

Not available

0100

BOLT, Carriage, M8 X 18

$

$

Not available

0120

BLADE, Scraper, 30"

$

$

Not available
