M 1530 E (1696832-00) - Simplicity 30" Snow Thrower, 14.5hp Auger Housing Group Parts Diagram

30" Snow Thrower, 14.5hp

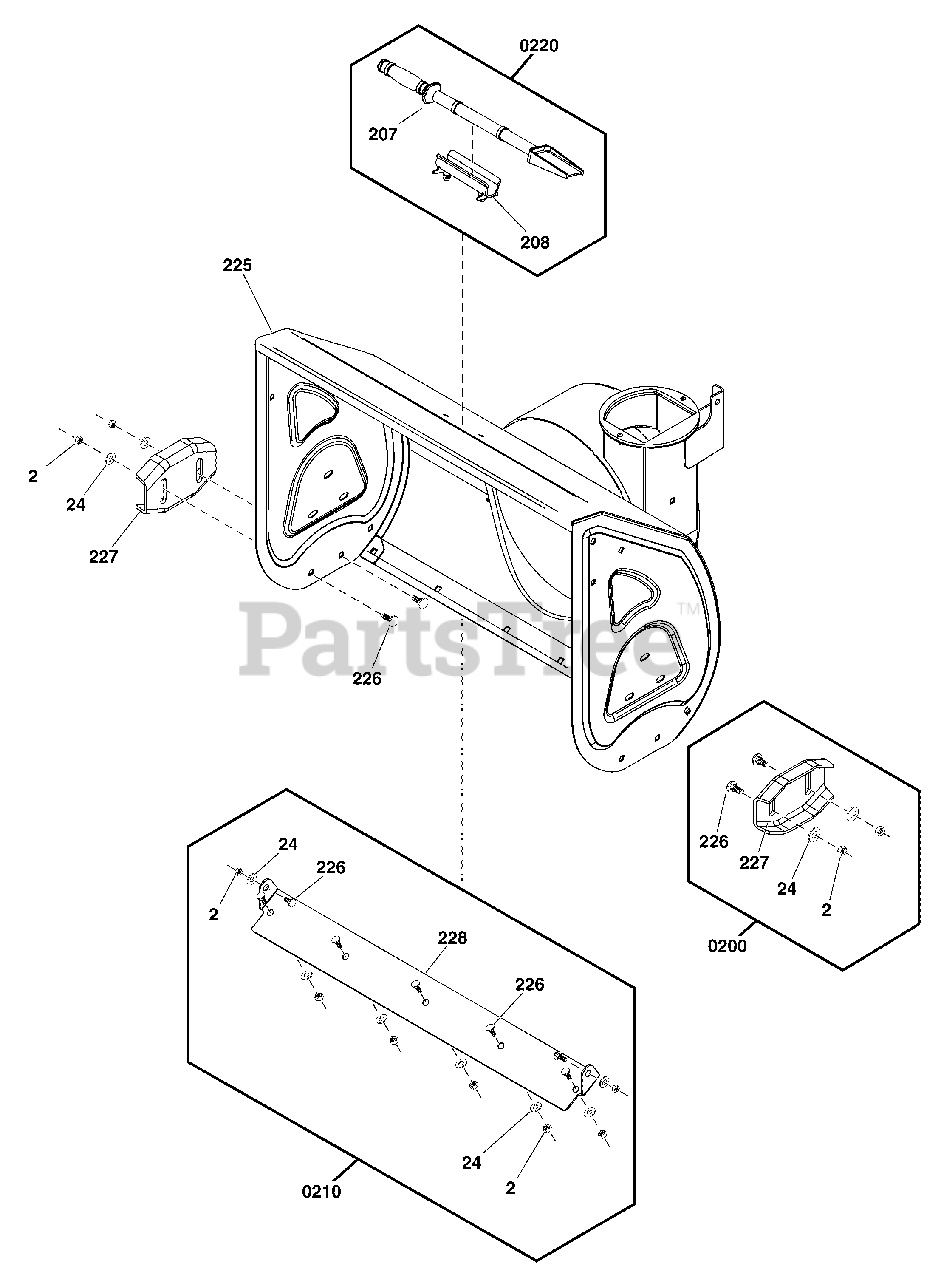

Auger Housing Group Parts Diagram

  • Title
225

AUGER HOUSING, 30", Orange

Note: (Refer to Note:*)

$

$

Not available

0200

Simplicity 707550

KIT, SKID SHOE
(Superseded to 84003710)

Note: (Incl. Ref. Nos. 2, 24, 226, 227)

$45.99

$

In Stock, Qty 7

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

226

BOLT, Carriage, M8 X 18

$

$

Not available

227

SKID, Height Adjust

$

$

Not available

0210

Simplicity 770838

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 2, 24, 226, 228)

$93.99

$

In Stock, only 1 left!

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

226

BOLT, Carriage, M8 X 18

$

$

Not available

228

BLADE, Scraper, 30"

$

$

Not available

0220

Simplicity 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 207, 208)

$28.99

$

Usually ships in 2-12 days

0

207

SHOVEL, Cleanout

$

$

Not available

208

CLAMP, Cleanout

$

$

Not available
