M 1529E (1696175-01) - Snapper 29" Snow Thrower, 14.5hp Gear Case Assembly Parts Diagram

29" Snow Thrower, 14.5hp

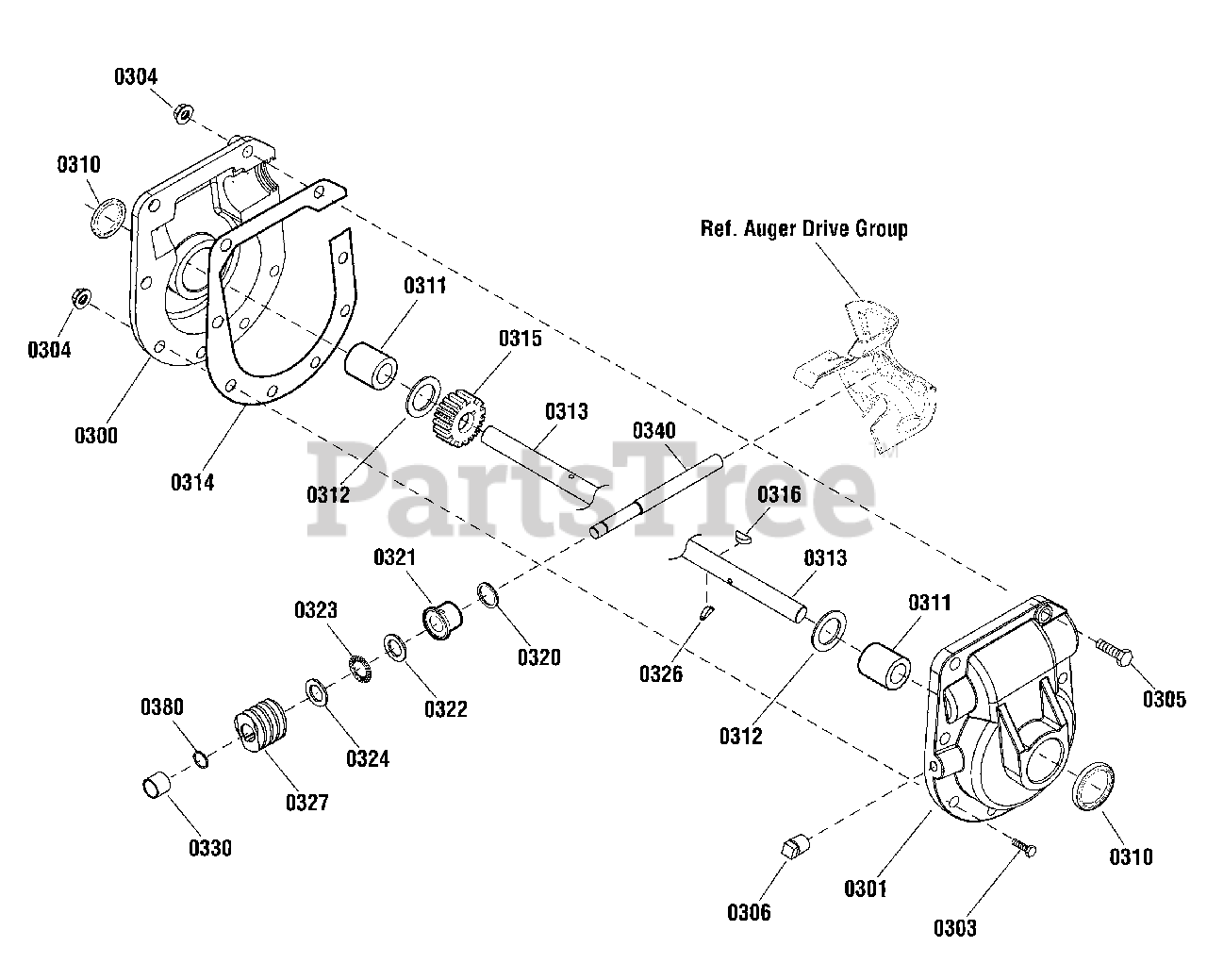

Gear Case Assembly Parts Diagram

  • Title
300

Snapper 896MA

CASE, Gear, RH

$32.99

$

In Stock, only 4 left!

0

301

Snapper 895MA

CASE, Gear, LH

$

$

Not available

303

Snapper 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

304

Snapper 71100MA

NUT, Hex Flange, Serrated Lock, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

305

Snapper 330434MA

CAPSCREW, Hex Head, 5/16-24
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

306

Snapper 53749MA

PLUG, Pipe
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

310

Snapper 780151MA

SEAL, Oil

$10.99

$

In Stock, Qty 6

0

311

Snapper 53743MA

BEARING, Sleeve, 1 x 1-1/4 x 1

$9.99

$

Usually ships in 2-12 days

0

312

Snapper 53748MA

WASHER, Flat, 1-1-1/2

$9.99

$

In Stock, only 2 left!

0

313

Snapper 760529MA

SHAFT, Auger Out, 27"

$76.99

$

Usually ships in 2-12 days

0

314

Snapper 897MA

GASKET

$

$

Not available

315

Snapper 1752500YP

GEAR, Worm, 22T

$79.99

$

In Stock, only 4 left!

0

316

Snapper 73905MA

KEY, Woodruff
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

320

Snapper 53737MA

RING, Quad

$4.99

$

In Stock, Qty 7

0

321

Snapper 583126MA

BEARING, Flange, 3/4 ID x 1-1/8 OD

$13.99

$

In Stock, Qty 5

0

322

Snapper 48275MA

WASHER, Thrust

$6.49

$

In Stock, only 4 left!

0

323

Snapper 50684MA

BEARING, Roll Thrust, 3/4 ID x 1-1/4 OD

$6.49

$

In Stock, only 4 left!

0

324

Snapper 48275MA

WASHER, Thrust

$6.49

$

In Stock, only 4 left!

0

326

Snapper 50795MA

KEY, HI-PRO

$5.99

$

In Stock, only 1 left!

0

327

Snapper 53732MA

WORMGEAR, 1-3/4 OD x 1-1/2"

$49.99

$

Usually ships in 2-12 days

0

330

Snapper 53731MA

BEARING, Sleeve, 3/4 ID x 7/8 OD

$5.49

$

In Stock, Qty 10

0

340

Snapper 1751535YP

SHAFT, Impeller

$

$

Not available

380

Snapper 1752515YP

RING, Retaining, 3/4

$10.99

$

Usually ships in 2-12 days

0
