M 1529E (1696175-01) - Snapper 29" Snow Thrower, 14.5hp Engine & Frame Group - 11.5TP & 14.5TP Parts Diagram

29" Snow Thrower, 14.5hp

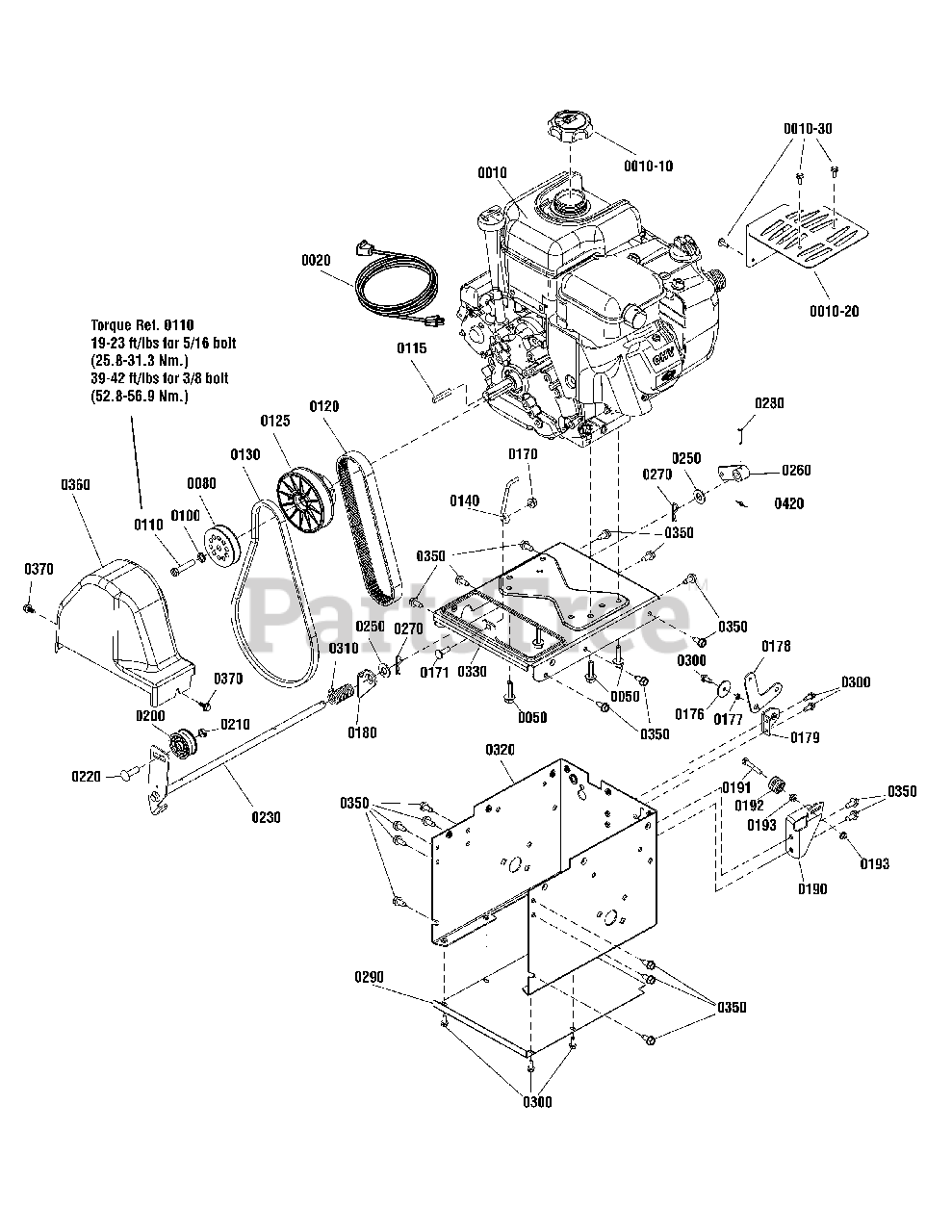

Engine & Frame Group - 11.5TP & 14.5TP Parts Diagram

  • Title

0010

Snapper 15C114-0153-F8

* ENGINE, 11.5 Gross TP Briggs & Stratton, Domestic

$

$

Not available

0010

Snapper 20M314-0136-F1

* ENGINE, 14.5TP, Briggs & Stratton, Model: 20M314-0136-F1

$

$

Currently unavailable

0010-10

Snapper 792647

CAP, Fuel Tank
(Superseded to 795027)

$10.99

$

In Stock, Qty 20+

0

0010-20

Snapper 797003

MUFFLER

Note: (Use on 11.5TP Model)

$45.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 794948

MUFFLER

Note: (Use on 14.5TP Model)

$122.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 699854

SCREW

Note: (Use on 11.5TP Model)

$3.99

$

In Stock, Qty 7

0

0010-30

Snapper 699234

SCREW

Note: (Use on 14.5TP Model)

$3.99

$

In Stock, only 2 left!

0

0020

Snapper 724865

CORD, 10FT, 110V
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

0050

Snapper 75246

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1737509

PULLEY ASSY.
(Superseded to 1737509YP)

$

$

Not available

0100

LOCKWASHER, Spring, 5/16

Note: (Use on 11.5TP Model)

$

$

Not available

0100

Snapper 1916965

Lockwasher, 3/8
(Superseded to 703454)

Note: (Use on 14.5TP Model)

$3.49

$

In Stock, Qty 15

0

0110

Snapper 1750393

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, GR8
(Superseded to 1750393YP)

Note: (Use on 11.5TP Model)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 80003609

CAPSCREW, Hex Head, 3/8-24 x 1-3/4, GR8
(Superseded to 703132)

Note: (Use on 14.5TP Model)

$3.99

$

Usually ships in 2-12 days

0

0115

Snapper 2157427

KEY, Parallel .187 x .187 x 1.25
(Superseded to 2157427SM)

$5.49

$

In Stock, only 1 left!

0

0120

Snapper 1737220

V-BELT, Multi-Speed
(Superseded to 1737220YP)

$49.99

$

In Stock, only 3 left!

0

0125

Snapper 1733968

PULLEY ASSY.
(Superseded to 1733968YP)

$76.99

$

Usually ships in 2-12 days

0

0130

Snapper 724801

BELT, AUG V4L 38.10 MF 05-10B
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 20+

0

0140

Snapper 1737377

STOP, Belt
(Superseded to 1737377YP)

$11.99

$

In Stock, only 1 left!

0

0170

NUT, Hex Keps, 5/16-18

$

$

Not available

0171

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0176

Snapper 80003613

WASHER, Flat, 1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

0177

Snapper 80003581

SPACER, 1/4 x .118, GR5
(Superseded to 703124)

$3.99

$

Usually ships in 2-12 days

0

0178

Snapper 1737329

BELLCRANK
(Superseded to 1737329YP)

$29.99

$

Usually ships in 2-12 days

0

0179

Snapper 1737328BM

BRACKET, Lower
(Superseded to 1737328AYP)

$11.99

$

Usually ships in 2-12 days

0

0180

Snapper 1737297

BRACKET, Support, Auger Idler
(Superseded to 1737297YP)

$9.49

$

Usually ships in 2-12 days

0

0190

Snapper 1737347BM

BRACKET, Guide Wheel
(Superseded to 1737347BMYP)

$13.99

$

Usually ships in 2-12 days

0

0191

Snapper 80002713

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0192

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 7

0

0193

Snapper 80002727

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0200

Snapper 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

0210

Snapper 80003521

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Snapper 80003589

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1737296

AUGER IDLER
(Superseded to 1737296YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER,.516IDX.875ODX.06,FLAT,ZC/CL
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, only 3 left!

0

0270

PIN, 3/32 X 1.600, HAIR, ZINC/CLEAR

$

$

Not available

0280

Snapper 80003528

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Snapper 1737221BM

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0310

Snapper 1737350

SPRING, Torsion
(Superseded to 1737350YP)

$7.99

$

In Stock, only 1 left!

0

0320

Snapper 1737106D

FRAME, Engine
(Superseded to 1737106DYP)

$125.99

$

Usually ships in 2-12 days

0

0330

Snapper 1754136D

PLATE, Engine, Red
(Superseded to 1754136DYP)

Note: (Use on 14.5TP Model)

$68.99

$

Usually ships in 2-12 days

0

0330

Snapper 1754138D

PLATE, Engine
(Superseded to 1754138DYP)

Note: (Use on 11.5TP Model)

$67.99

$

Usually ships in 2-12 days

0

0350

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black

$

$

Not available

0360

Snapper 1750551

COVER, Belt
(Superseded to 1750551YP)

$26.99

$

Usually ships in 2-12 days

0

0370

Snapper 1751355

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

0420

Snapper 7023590

PIN, Cotter, Self Locking, 1/4"
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0
