M 145 (961310022-01) - Husqvarna Walk-Behind Mower (2008-02) HANDLE & CONTROLS Parts Diagram

Walk-Behind Mower

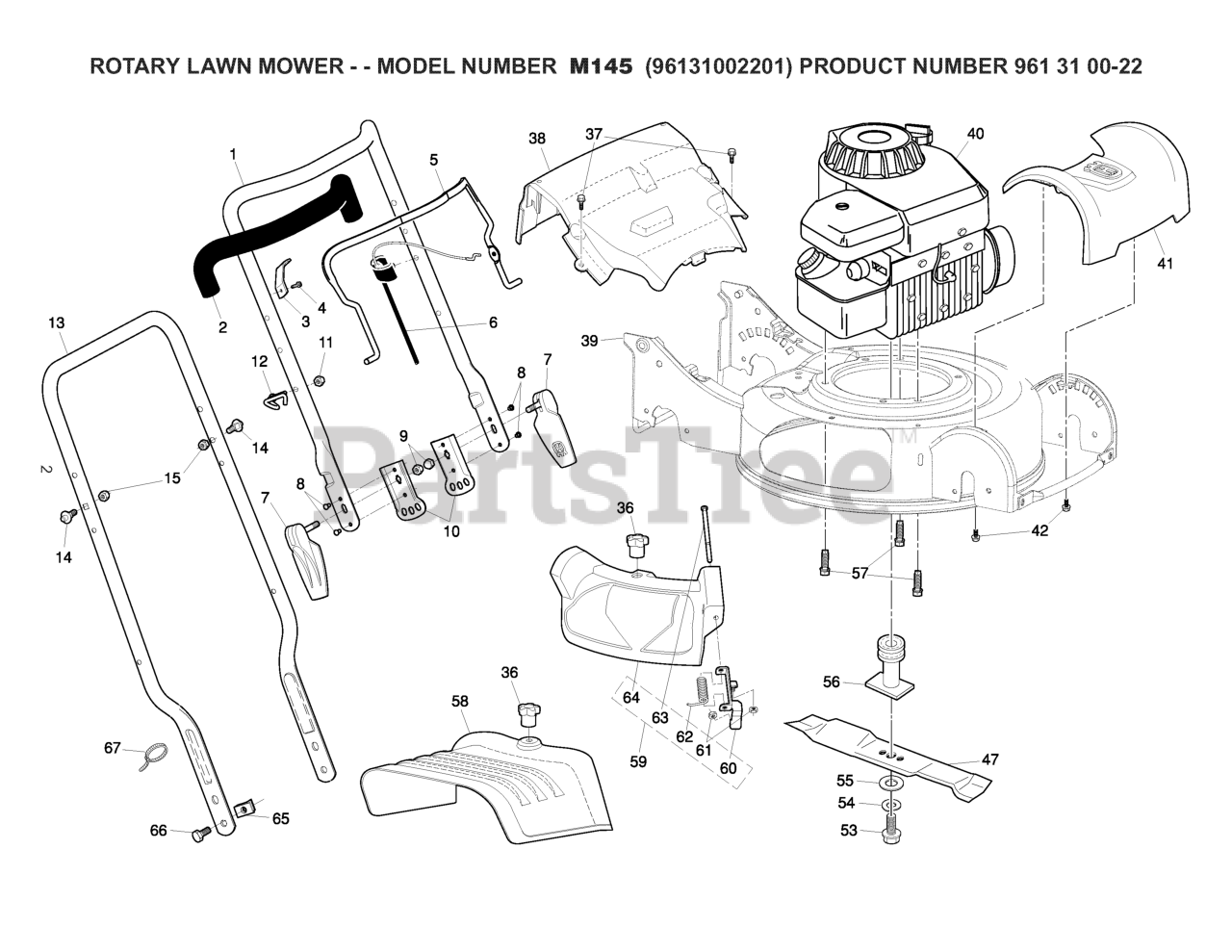

HANDLE & CONTROLS Parts Diagram

  • Title
38

Husqvarna 532413513

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532410948

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

11

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 532199222

NEEDS DESCRIPTION

$

$

Currently unavailable

65

Husqvarna 532404008

NEEDS DESCRIPTION

$

$

Currently unavailable

-

Husqvarna 532408576

NEEDS DESCRIPTION

$

$

Currently unavailable

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532408047

CONTROL.ZONE.ASM

$17.99

$

In Stock, only 2 left!

0

60

Husqvarna 532199268

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 532413581

NEEDS DESCRIPTION

$

$

Currently unavailable

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532400413

Locknut, Hex 1/4-20

$

$

Not available

7

Husqvarna 532413507

ASM.QUICK.RELEASE
(Superseded to 584380101)

$

$

Not available

15

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

59

Husqvarna 532409314

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

$6.49

$

In Stock, Qty 5

0

64

Husqvarna 532413518

DOOR.MULCH.GREY

$21.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532199422

SCREW, HEX WASHER HEAD

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532186362

GRIP, FOAM

$12.99

$

In Stock, only 3 left!

0

-

Husqvarna 532408575

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 532400604

NEEDS DESCRIPTION

$

$

Currently unavailable

62

Husqvarna 532183446

SPRING.MULCH.DOOR

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 532413534

BRACKET.ADJ.3POS.GREY

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532012503

NEEDS DESCRIPTION

$

$

Currently unavailable

53

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.49

$

In Stock, only 1 left!

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

$

$

Not available

-

Husqvarna 532413415

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 532413517

NEEDS DESCRIPTION

$

$

Currently unavailable

56

Husqvarna 532407138

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

63

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532413535

NEEDS DESCRIPTION

$

$

Currently unavailable

61

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
