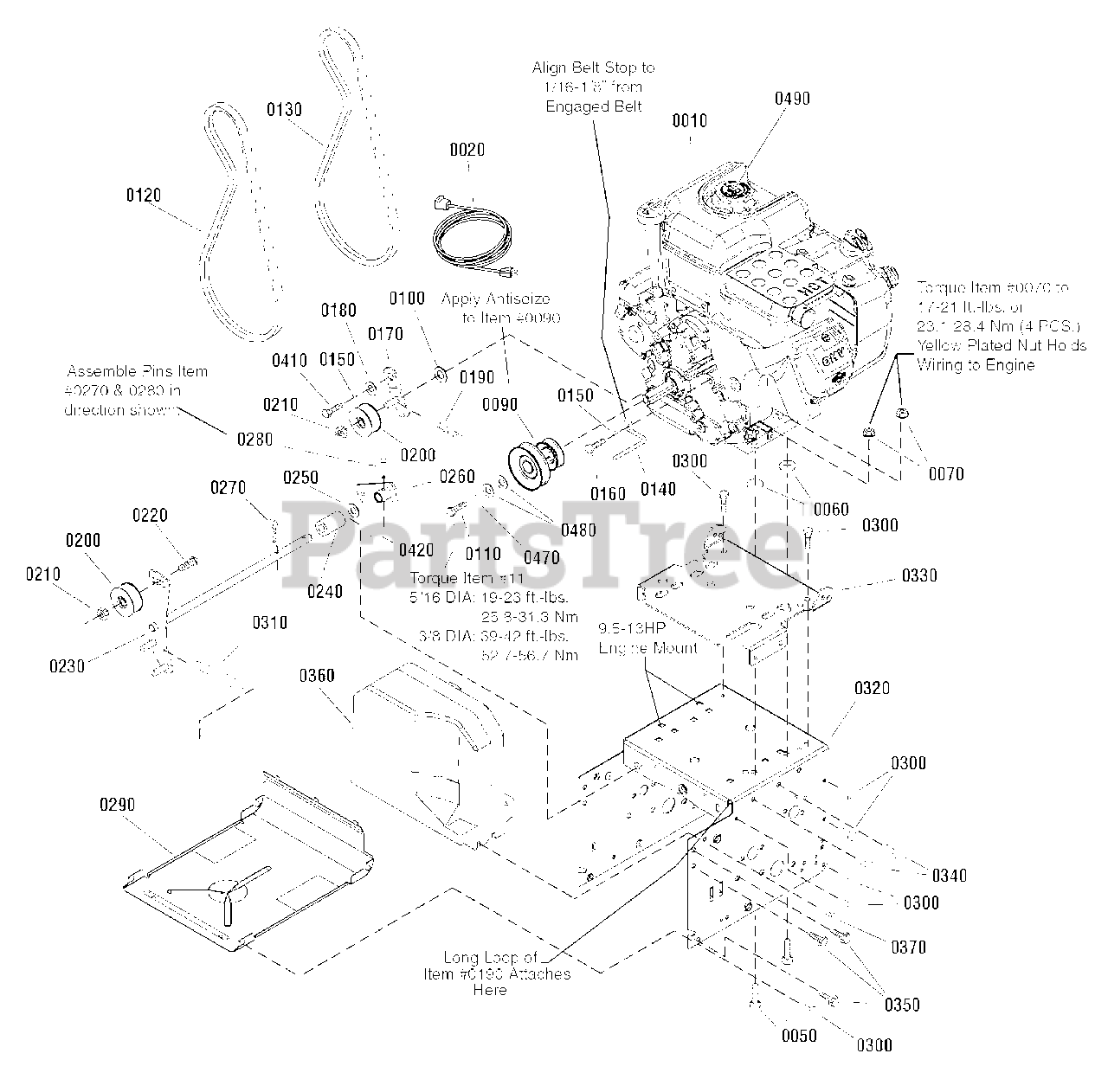

M 1429E (1695735) - Snapper 29" Snow Thrower, 13.5hp Engine & Frame Group Parts Diagram

29" Snow Thrower, 13.5hp

Engine & Frame Group Parts Diagram

  • Title

0010

Snapper 20M114-0140-E1

* ENGINE, 13.5TP, B&S

Note: (Engine Model 20M114-0140-E1)

$

$

Currently unavailable

0020

Snapper 724865

CORD, Starter
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

0050

Snapper 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Snapper 720376

NUT, Push
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 2831277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0090

Snapper 722085

PULLEY, Engine
(Superseded to 1501109MA)

$41.99

$

In Stock, only 2 left!

0

0100

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 1960428

CAPSCREW, Hex Head, 3/8-24 x 1-1/4 G8
(Superseded to 1960428SM)

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 1733324

V-BELT, Drive, 3L 33.13
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

0130

Snapper 724801

BELT, Auger Drive, V4L 38.10
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 20+

0

0140

Snapper 1739070

BELT GUIDE
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

0150

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4 G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 722090

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Snapper 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.49

$

In Stock, only 2 left!

0

0190

Snapper 724418

SPRING, Extension, Idler
(Superseded to 53704MA)

$8.49

$

In Stock, only 2 left!

0

0200

Snapper 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

0210

Snapper 1960251

NUT, Hex Centerlock Jaam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Snapper 724823

BOLT, Carriage, 3/8-16 x 1-1/4 G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 722132

AUGER IDLER
(Superseded to 1501226YZMA)

$52.99

$

Usually ships in 2-12 days

0

0240

Snapper 722118

SPACER, 1/2ID x 1OD x 1-3/4
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, only 3 left!

0

0270

Snapper 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1736381

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Snapper 1740906A

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Snapper 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 9

0

0320

Snapper 1740571D

FRAME BOX
(Superseded to 1740571DYP)

$112.99

$

Usually ships in 2-12 days

0

0330

Snapper 1733583D

PLATE, Engine Mount
(Superseded to 1733583DSM)

$51.99

$

Usually ships in 2-12 days

0

0340

Snapper 1924856

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0350

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1741069

COVER
(Superseded to 1741069MA)

$

$

Not available

0370

Snapper 722887

SCREW, Self Tap, 1/4 x 3/4
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

0410

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Snapper 7023590

COTTER PIN
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0470

Snapper 1916965

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0480

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0490

Snapper 792596

CAP, Fuel Tank, With Gasket

$

$

Currently unavailable
