M 1228S (1697342-01) - Snapper 28" Snow Thrower, 12.5hp (2020) Handles Group Parts Diagram

28" Snow Thrower, 12.5hp

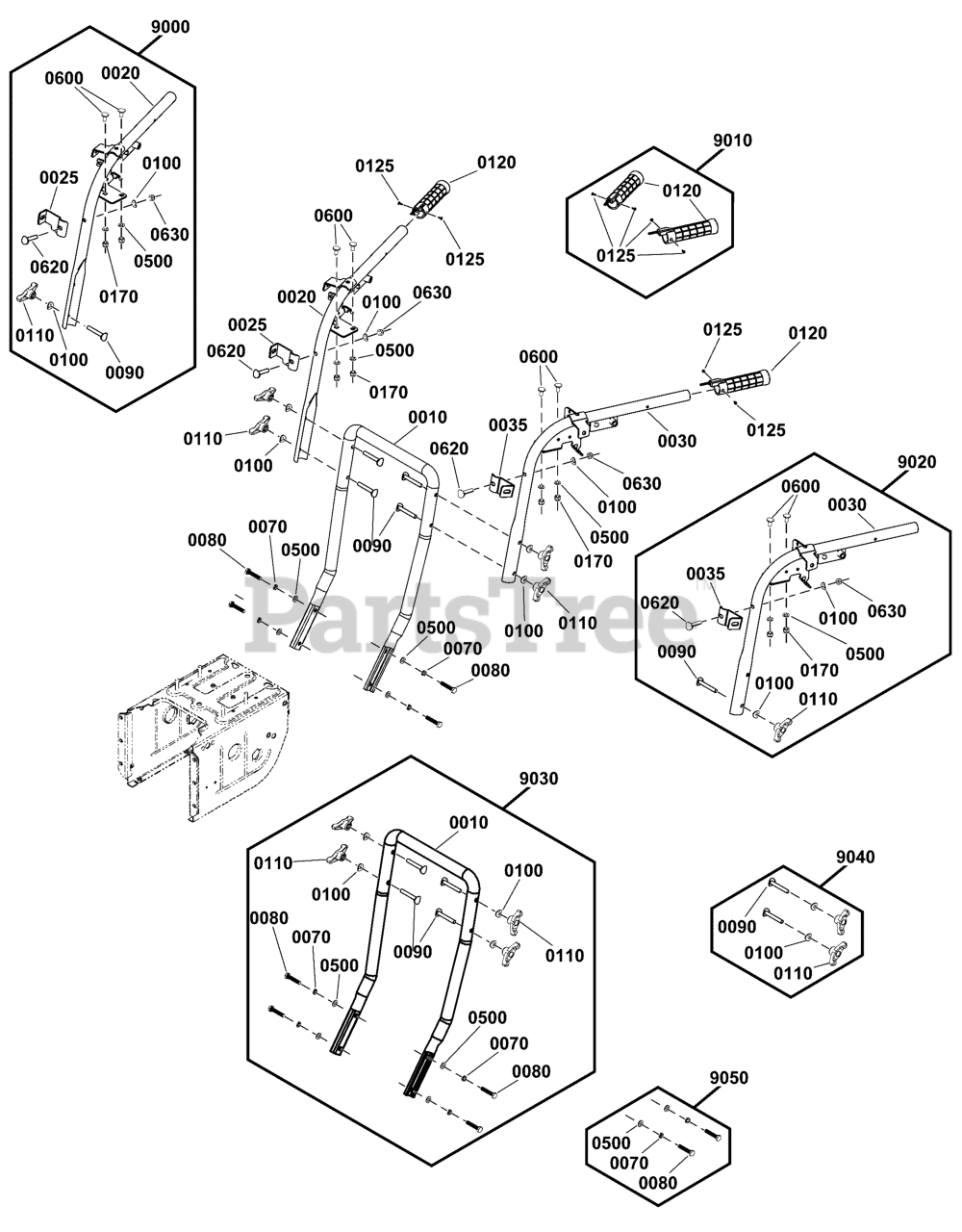

Handles Group Parts Diagram

  • Title

9000

Snapper 84006445

KIT, Upper Handle, Right

Note: (Incl. Ref. Nos. 0020, 0025, 0090, 0100, 0110, 0170, 0500, 0600, 0620, 0630)

$110.99

$

Usually ships in 2-12 days

0

0020

HANDLE, Upper Right

$

$

Not available

0025

BRACKET, Mounting, Dash, Right

$

$

Not available

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0600

BOLT, Carriage, M8 X 16

$

$

Not available

0620

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

0630

NUT, Hex Flange Head, M8

$

$

Not available

9010

Snapper 84006442

KIT, Grip, Handle

Note: (Incl. Ref. Nos. 0120, 0125)

$

$

Currently unavailable

0120

HAND GRIP, Heated, 60W

$

$

Not available

0125

SCREW #6-20X0.380 SELFDRILL PAN HD ZC/CL

$

$

Not available

9020

Snapper 84006444

KIT, Upper Handle, Left

Note: (Incl. Ref. Nos. 0030, 0035, 0090, 0100, 0110, 0170, 0500, 0600, 0620, 0630)

$

$

Currently unavailable

0030

HANDLE, Upper Left

$

$

Not available

0035

BRACKET, Mounting, Dash, Left

$

$

Not available

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0600

BOLT, Carriage, M8 X 16

$

$

Not available

0620

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

0630

NUT, Hex Flange Head, M8

$

$

Not available

9030

Snapper 84003833

KIT, Lower Handle

Note: (Incl. Ref. Nos. 0010, 0070, 0080, 0090, 0100, 0110, 0500)

$74.99

$

Usually ships in 2-12 days

0

0010

HANDLE, Lower

$

$

Not available

0070

WASHER, Lock, M8

$

$

Not available

0080

SCREW, Hex Head, M8X20

$

$

Not available

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

9040

Snapper 707513

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 0090, 0100, 0110)

$36.99

$

In Stock, only 4 left!

0

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

9050

Snapper 84003835

KIT, Lower Handle Hardware

Note: (Incl. Ref. Nos. 0070, 0080, 0500)

$14.99

$

Usually ships in 2-12 days

0

0070

WASHER, Lock, M8

$

$

Not available

0080

SCREW, Hex Head, M8X20

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available
