M 1228S (1697342-01) - Snapper 28" Snow Thrower, 12.5hp (2020) Discharge Chute Group Parts Diagram

28" Snow Thrower, 12.5hp

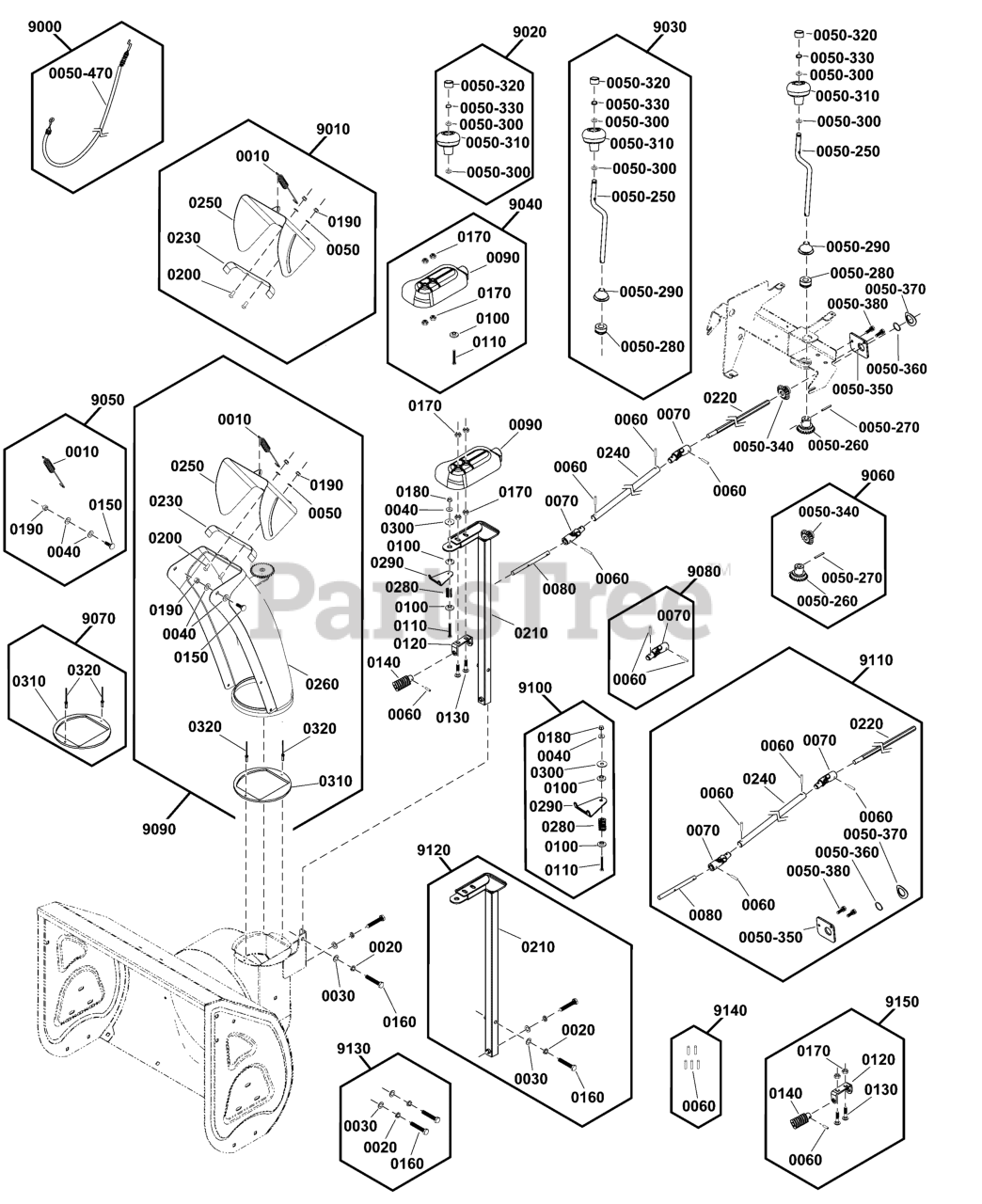

Discharge Chute Group Parts Diagram

  • Title

9000

Snapper 771734

KIT, Cable-Chute Deflector

Note: (Incl. Ref. No. 0050-470)

$37.99

$

Usually ships in 2-12 days

0

0050-470

CABLE, Deflector Control

$

$

Not available

9010

Snapper 1688078

KIT, Chute Deflector

Note: (Incl. Ref. Nos. 0010, 0050, 0190, 0200, 0230, 0250)

$73.99

$

Usually ships in 2-12 days

0

0010

SPRING, Extension

$

$

Not available

0050

WASHER, 6x12x.7, Flat

$

$

Not available

0190

NUT, Lock, M6

$

$

Not available

0200

BOLT, Button Head Socket, M6 X 13

$

$

Not available

0230

GASKET, Chute Deflector

$

$

Not available

0250

DEFLECTOR, Chute

$

$

Not available

9020

Snapper 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 0050-300, 0050-310, 0050-320, 0050-330)

$11.99

$

Usually ships in 2-12 days

0

0050-300

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0050-310

KNOB, Chute Rotator

$

$

Not available

0050-320

KNOB, Cover

$

$

Not available

0050-330

RING, External Retaining, 10

$

$

Not available

9030

Snapper 707503

KIT, Chute Rotation

Note: (Incl. Ref. Nos. 0050-250, 0050-280, 0050-290, 0050-300, 0050-310, 0050-320, 0050-330)

$28.99

$

Usually ships in 2-12 days

0

0050-250

ROD, Chute Rotation

$

$

Not available

0050-280

BUSHING, Rotation Rod

$

$

Not available

0050-290

BUSHING, Chute Rotation

$

$

Not available

0050-300

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0050-310

KNOB, Chute Rotator

$

$

Not available

0050-320

KNOB, Cover

$

$

Not available

0050-330

RING, External Retaining, 10

$

$

Not available

9040

Snapper 84003878

KIT, Cover, Chute Rotation

Note: (Incl. Ref. Nos. 0090, 0100, 0110, 0170)

$49.99

$

Usually ships in 2-12 days

0

0090

COVER, Chute Rotation

$

$

Not available

0100

SPACER, Chute Rotation Bracket

$

$

Not available

0110

SCREW, Hex Head, M6 X 70

$

$

Not available

0170

NUT, Hex Flange Head, M8

$

$

Not available

9050

Snapper 707563

KIT, Spring, Chute

Note: (Incl. Ref. Nos. 0010, 0040, 0150, 0190)

$10.99

$

Usually ships in 2-12 days

0

0010

SPRING, Extension

$

$

Not available

0040

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0150

SCREW, Shoulder, M6 X 10

$

$

Not available

0190

NUT, Lock, M6

$

$

Not available

9060

Snapper 770774

KIT, Bevel Gear, Chute Rotation

Note: (Incl. Ref. Nos. 0050-260, 0050-270, 0050-340)

$20.99

$

Usually ships in 2-12 days

0

0050-260

GEAR, Bevel

$

$

Not available

0050-270

PIN, Spring, 4 X 28

$

$

Not available

0050-340

GEAR, Bevel

$

$

Not available

9070

Snapper 84002905

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. Nos. 0310, 0320)

$9.49

$

Usually ships in 2-12 days

0

0310

ADAPTER, Chute Ring

$

$

Not available

0320

RIVET, 4 X 13

$

$

Not available

9080

Snapper 707524

KIT, Cardan Joint

Note: (Incl. Ref. Nos. 0060, 0070)

$67.99

$

Usually ships in 2-12 days

0

0060

PIN, 4 X 20, Spring

$

$

Not available

0070

UNIVERSAL JOINT

$

$

Not available

9090

Snapper 84003877

KIT, Chute Assembly

Note: (Incl. Ref. Nos. 0010, 0040, 0050, 0150, 0190, 0200, 0230, 0250, 0260, 0310, 0320)

$131.99

$

Usually ships in 2-12 days

0

0010

SPRING, Extension

$

$

Not available

0040

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0050

WASHER, 6x12x.7, Flat

$

$

Not available

0150

SCREW, Shoulder, M6 X 10

$

$

Not available

0190

NUT, Lock, M6

$

$

Not available

0200

BOLT, Button Head Socket, M6 X 13

$

$

Not available

0230

GASKET, Chute Deflector

$

$

Not available

0250

DEFLECTOR, Chute

$

$

Not available

0260

CHUTE

$

$

Not available

0310

ADAPTER, Chute Ring

$

$

Not available

0320

RIVET, 4 X 13

$

$

Not available

9100

Snapper 1688079

KIT, Chute Rotation

Note: (Incl. Ref. Nos. 0040, 0100, 0110, 0180, 0280, 0290, 0300)

$21.99

$

In Stock, only 1 left!

0

0040

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0100

SPACER, Chute Rotation Bracket

$

$

Not available

0110

SCREW, Hex Head, M6 X 70

$

$

Not available

0180

NUT, Lock, Hex Flange Head, M6

$

$

Not available

0280

SPRING, Lever Assembly

$

$

Not available

0290

BRACKET, Chute Rotation

$

$

Not available

0300

WASHER, Rubber

$

$

Not available

9110

Snapper 84006443

KIT, Chute Rotation Rod

Note: (Incl. Ref. Nos. 0050-350, 0050-360, 0050-370, 0050-380, 0060, 0070, 0080, 0220, 0240)

$

$

Currently unavailable

0050-350

PLATE, Rotation Rod, Bevel Gear

$

$

Not available

0050-360

RING, External Retaining, 20

$

$

Not available

0050-370

WASHER, Wave, 20

$

$

Not available

0050-380

SCREW, Hex Washer Head, M6 X 12

$

$

Not available

0060

PIN, 4 X 20, Spring

$

$

Not available

0070

UNIVERSAL JOINT

$

$

Not available

0080

ROD, Chute Rotation, Worm

$

$

Not available

0220

ROD, Chute Rotation, Driven

$

$

Not available

0240

ROD, Chute Rotation, Connecting

$

$

Not available

9120

Snapper 771864

KIT, Chute Rotation Bracket

Note: (Incl. Ref. Nos. 0020, 0030, 0160, 0210)

$56.99

$

Usually ships in 2-12 days

0

0020

WASHER, Lock, M8

$

$

Not available

0030

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0160

SCREW, Hex Head, M8 X 45

$

$

Not available

0210

BRACKET, Chute Rotation Upper

$

$

Not available

9130

Snapper 771996

KIT, Bracket, Chute Rotation Hardware

Note: (Incl. Ref. Nos. 0020, 0030, 0160)

$12.99

$

Usually ships in 2-12 days

0

0020

WASHER, Lock, M8

$

$

Not available

0030

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0160

SCREW, Hex Head, M8 X 45

$

$

Not available

9140

Snapper 771921

KIT, Spring Pin, 4 X 20

Note: (Incl. Ref. No. 0060)

$6.99

$

Usually ships in 2-12 days

0

0060

PIN, 4 X 20, Spring

$

$

Not available

9150

Snapper 707543

KIT, Worm Gear Hardware, Chute

Note: (Incl. Ref. Nos. 0060, 0120, 0130, 0140, 0170)

$34.99

$

In Stock, only 1 left!

0

0060

PIN, 4 X 20, Spring

$

$

Not available

0120

BRACKET, Chute Rotation, Worm

$

$

Not available

0130

BOLT, Carriage, M8 X 30

$

$

Not available

0140

GEAR, Chute Rotation, Worm

$

$

Not available

0170

NUT, Hex Flange Head, M8

$

$

Not available
