M 1227EX (1696002) - Snapper 27" Snow Thrower, 11.5hp Wheels & Tires Group Parts Diagram

27" Snow Thrower, 11.5hp

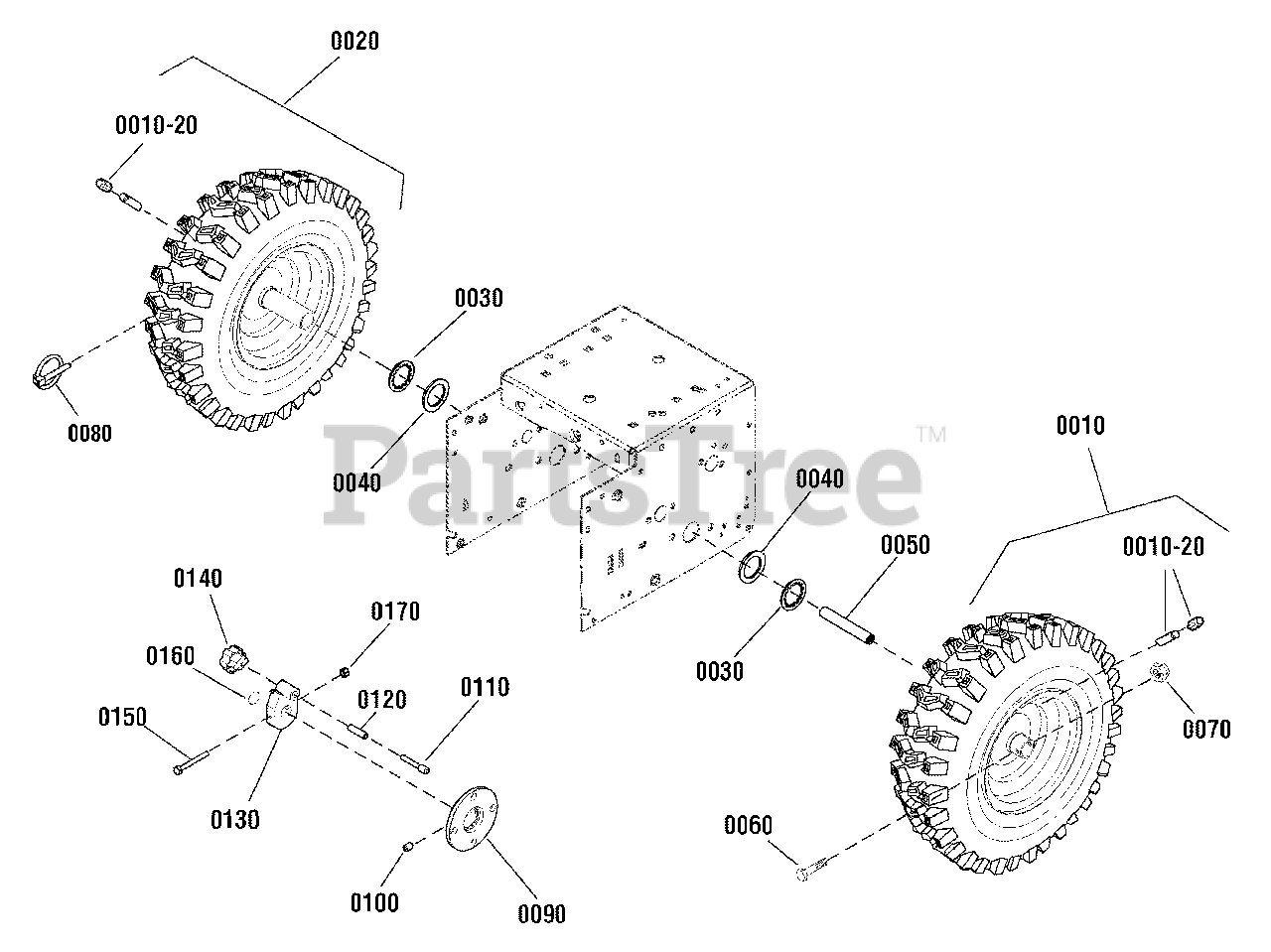

Wheels & Tires Group Parts Diagram

  • Title

0010

Snapper 1739926

WHEEL & TIRE ASSEMBLY, 16 x 4.8, P2-539, LH
(Superseded to 1739926YP)

Note: (Used on 27" Models)

$167.99

$

Usually ships in 2-12 days

0

0010

Snapper 1750348

WHEEL & TIRE ASSEMBLY, 16 x 6.5, P2-539, LH
(Superseded to 1750348YP)

Note: (Used on 29" Models)

$173.99

$

Usually ships in 2-12 days

0

0020

Snapper 1739927

WHEEL & TIRE ASSEMBLY, 16 x 4.8, P2-539, RH
(Superseded to 1753545YP)

Note: (Used on 27" Models)

$143.99

$

Usually ships in 2-12 days

0

0020

Snapper 1750347

WHEEL & TIRE ASSEMBLY, 16 x 6.5, P2-539, RH
(Superseded to 1750347YP)

Note: (Used on 29" Models)

$190.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0030

Snapper 1657528

RING, Retaining, Self Lock, 3/4
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 725394

WASHER, Flat, 3/4
(Superseded to 712120MA)

Note: (Used on 29" Models)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 722102

BUSHING, Wheel, 5-1/2"
(Superseded to 1501138MA)

Note: (Used on 29" Models)

$

$

Not available

0060

Snapper 724545

BOLT, Hex, 1/4-20 x 1-3/4, G5
(Superseded to 577015MA)

$4.99

$

In Stock, Qty 5

0

0070

Snapper 722400

NUT, Hex, Nylock, 1/4-20
(Superseded to 703232)

Note: (Used on 27" Models)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 725431

PIN, Klik, 1/4 x 1-3/8
(Superseded to 500016MA)

$15.99

$

In Stock, only 2 left!

0

0090

Snapper 722053

DISC, Wheel Lock
(Superseded to 1501032EMA)

$32.99

$

Usually ships in 2-12 days

0

0100

Snapper 722727

CAPSCREW, Hex Head, 3/8-16 x 1/2
(Superseded to 2001066MA)

Note: (Used on 29" Models)

$5.49

$

In Stock, Qty 20+

0

--

Snapper 1687601

KIT, Service, Wheel Lock Assembly
(Superseded to 1687601YP)

Note: (Includes item #'s 0110, 0120, 0130, 0140 & 0160) (Used on 29" Models)

$40.99

$

Usually ships in 2-12 days

0

0110

Snapper 722309

PIN, Wheel Lock, 1/4-20
(Superseded to 1501856YZMA)

Note: (Used on 29" Models)

$15.99

$

In Stock, Qty 14

0

0120

Snapper 722412

SPRING, Compression
(Superseded to 164X34MA)

Note: (Used on 29" Models)

$5.99

$

In Stock, Qty 19

0

0130

Snapper 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

Note: (Used on 29" Models)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 722308

KNOB, Wheel Lock
(Superseded to 1501855MA)

Note: (Used on 29" Models)

$13.99

$

In Stock, Qty 16

0

0150

Snapper 725430

CAPSCREW, Hex Head, 1/4-20 x 2-1/4, G8
(Superseded to 73839MA)

Note: (Used on 29" Models)

$5.49

$

In Stock, only 2 left!

0

0160

Snapper 724256

DECAL, Wheel Lock
(Superseded to 48X5600MA)

Note: (Used on 29" Models)

$14.99

$

Usually ships in 2-12 days

0

0170

Snapper 722310

HUB, Wheel Lock (Used on 29" Models)
(Superseded to 1501857MA)

Note: (Used on 29" Models)

$34.99

$

In Stock, Qty 14

0
