M 1227EX (1696002) - Snapper 27" Snow Thrower, 11.5hp Engine & Frame Group Parts Diagram

27" Snow Thrower, 11.5hp

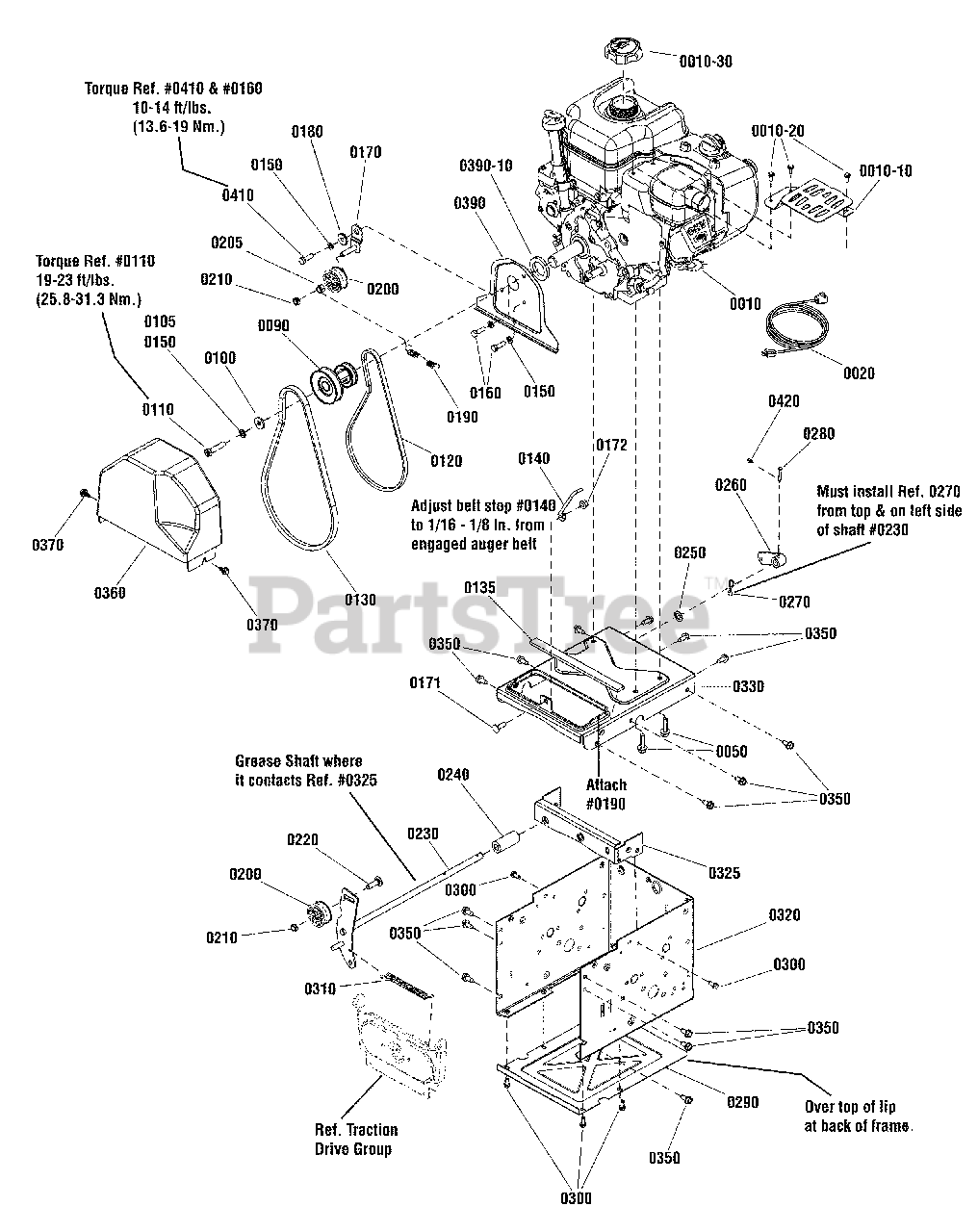

Engine & Frame Group Parts Diagram

  • Title

0010

Snapper 15C114-0153-F8

* ENGINE, 11TP Briggs & Stratton

Note: (Engine Model: 15C114-0153-F8)

$

$

Not available

0010

Snapper 20M314-0136-F1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Engine Model: 20M314-0136-F1)

$

$

Currently unavailable

0010-10

Snapper 797003

* GUARD, Muffler

Note: (Used on 11.5TP Models)

$45.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 797095

* GUARD, Muffler

Note: (Used on 14.5TP Models)

$45.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 699854

* SCREW, Muffler Guard

Note: (Used on 11.5TP Models)

$3.99

$

In Stock, Qty 9

0

0010-20

Snapper 699234

* SCREW, Muffler Guard

Note: (Used on 14.5TP Models)

$3.99

$

In Stock, only 2 left!

0

0010-30

Snapper 795027

* CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0020

Snapper 724865

CORD, Electric
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

0050

Snapper 75246

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1739514

PULLEY
(Superseded to 1739514YP)

$42.99

$

In Stock, only 2 left!

0

0100

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

Note: (Used on 11.5TP Models)

$4.49

$

In Stock, only 2 left!

0

0100

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

Note: (Used on 14.5TP Models)

$4.99

$

In Stock, Qty 11

0

0105

Snapper 1916965

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

Note: (Used on 14.5TP Models)

$3.49

$

In Stock, Qty 17

0

0110

Snapper 722041

CAPSCREW, Hex Head, 5/16-24, 1-3/4, G5
(Superseded to 7091513YP)

Note: (Used on 11.5TP Models)

$4.49

$

In Stock, Qty 14

0

0110

Snapper 2860768

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 703132)

Note: (Used on 14.5TP Models)

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 1733324

V-BELT, Traction Drive, 3L, 33.13
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

0130

Snapper 724801

BELT, Auger Drive, V4L 38.10
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 20+

0

0135

Snapper 1750314

SEAL, Strip
(Superseded to 1750314YP)

$8.99

$

Usually ships in 2-12 days

0

0140

Snapper 1737377

STOP, Belt
(Superseded to 1737377YP)

$11.99

$

In Stock, only 1 left!

0

0160

Snapper 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0150

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

Note: (Qty 3 used on 14.5TP models)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1739846

BRACKET, Idler
(Superseded to 1739846YP)

$8.99

$

Usually ships in 2-12 days

0

0171

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0172

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0180

BUSHING, Idler Bracket

$

$

Not available

0190

Snapper 722457

SPRING, Extension, Idler
(Superseded to 165X164MA)

$7.49

$

In Stock, Qty 5

0

0200

Snapper 722378

IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 13

0

0205

Snapper 7091299

NUT, Hex Nylock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0210

Snapper 1960251

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 11

0

0220

Snapper 724823

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1739574

IDLER, Auger
(Superseded to 1739574YP)

$38.99

$

Usually ships in 2-12 days

0

0240

Snapper 1739964

SPACER, Auger Bracket
(Superseded to 1739964YP)

$9.49

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, Qty 5

0

0270

Snapper 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1736381

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

0290

Snapper 1737221A

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Snapper 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 9

0

0320

Snapper 1739107D

FRAME
(Superseded to 1739107DYP)

$90.99

$

Usually ships in 2-12 days

0

0325

Snapper 1739093A

ANGLE, Auger & Traction Rod Mounting
(Superseded to 1739093BMYP)

$19.99

$

Usually ships in 2-12 days

0

0330

Snapper 1739450D

PLATE, Engine

Note: (Used on 11.5TP Models)

$

$

Not available

0330

Snapper 1739449D

PLATE, Engine
(Superseded to 1739449DYP)

Note: (Used on 14.5TP Models)

$58.99

$

Usually ships in 2-12 days

0

0350

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1750551

COVER, Belt
(Superseded to 1750551YP)

$26.99

$

Usually ships in 2-12 days

0

0370

Snapper 1751355

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

0390

Snapper 1733868A

PLATE, Seal
(Superseded to 1733868BMYP)

Note: (Used on 11.5TP Models)

$13.99

$

In Stock, only 1 left!

0

0390-10

Snapper 1733898

SEAL, Foam
(Superseded to 1733898SM)

Note: (Used on 11.5TP Models)

$6.49

$

Usually ships in 2-12 days

0

0410

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

0420

Snapper 7023590

PIN, Cotter, Self Locking, 1/4"
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0
