M 1227EX (1695964) - Snapper 27" Snow Thrower, 11.5hp Discharge Chute Group Parts Diagram

27" Snow Thrower, 11.5hp

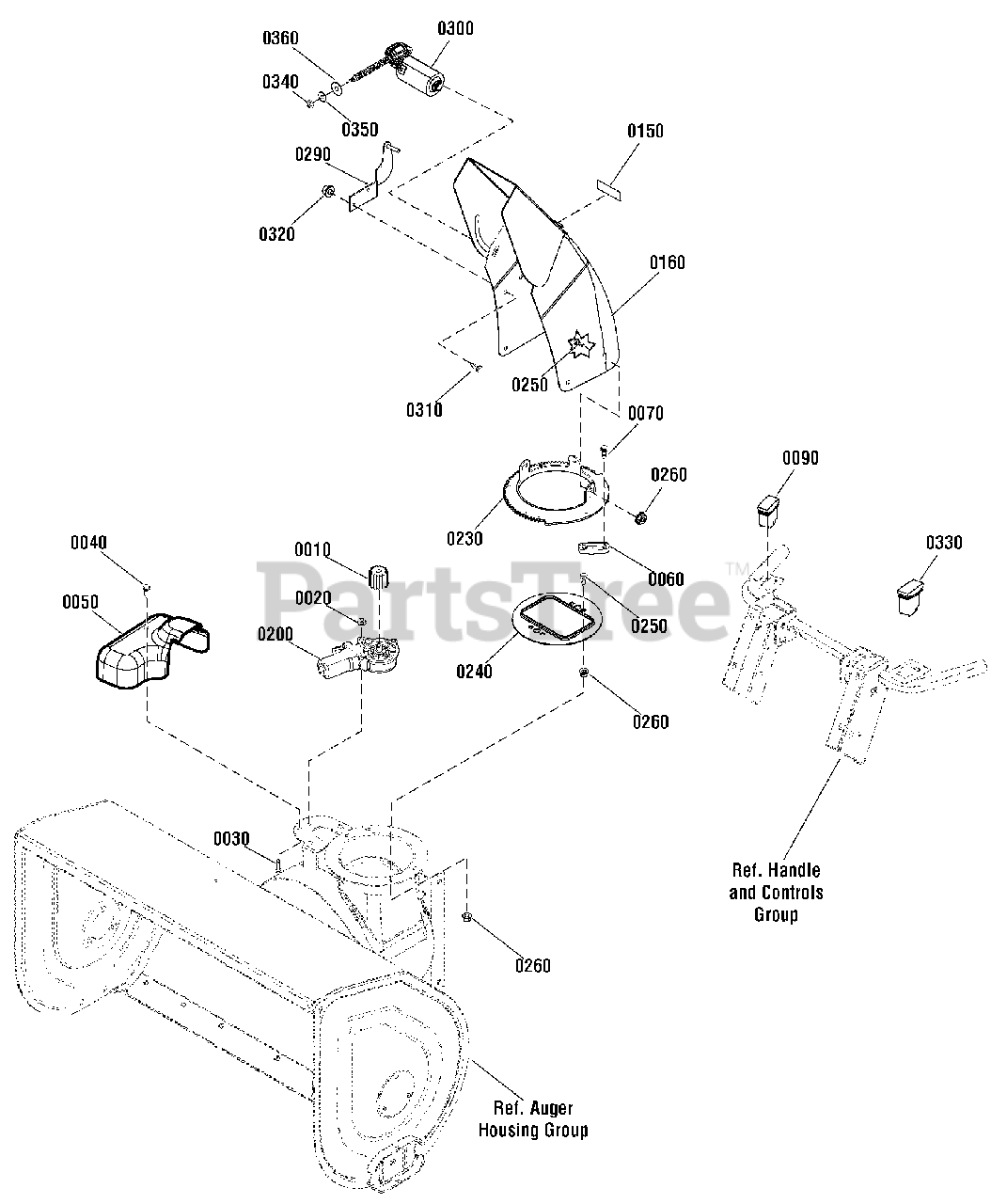

Discharge Chute Group Parts Diagram

  • Title

0010

Snapper 1728967

PINION
(Superseded to 1728967SM)

$17.99

$

In Stock, only 3 left!

0

0020

Snapper 1960745

NUT, Hex Flange #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 1925592

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Snapper 1737455

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0090

Snapper 1738243

SWITCH, Chute Rotation
(Superseded to 1738243YP)

$54.99

$

Usually ships in 2-12 days

0

0150

Snapper 1738340

DECAL, Hinge
(Superseded to 1738340YP)

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 1738045D

CHUTE
(Superseded to 1738045ZYP)

$133.99

$

Usually ships in 2-12 days

0

0200

Snapper 1728965

MOTOR, Spout Rotator
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 8

0

0230

Snapper 1737465A

GEAR
(Superseded to 1737465AYP)

$39.99

$

Usually ships in 2-12 days

0

0240

Snapper 1737411

ADAPTER, Chute Ring
(Superseded to 1737411YP)

$19.99

$

Usually ships in 2-12 days

0

0250

Snapper 7091530

BOLT, Carriage, 1/4-20 x 3/4 G5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 1 left!

0

0260

Snapper 2860694

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0290

Snapper 1738267BM

BRACKET, Weld Stud
(Superseded to 1738267BMYP)

$30.99

$

Usually ships in 2-12 days

0

0300

Snapper 1737941

MOTOR, Chute Deflector
(Superseded to 1737941YP)

$143.99

$

In Stock, Qty 5

0

0310

Snapper 1960715

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Snapper 1960694

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1738242

SWITCH, Deflector Control
(Superseded to 1738242YP)

$54.99

$

Usually ships in 2-12 days

0

0340

Snapper 1738245

NUT, Left Handed
(Superseded to 703143)

$3.49

$

In Stock, Qty 5

0

0350

Snapper 725330

WASHER, Flat, 1/4
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

0360

Snapper 1738244

WASHER, Rubber
(Superseded to 1738244YP)

$4.49

$

In Stock, Qty 10

0
