M 1227E (1696173-02) - Snapper 27" Snow Thrower, 11.5hp Wheels & Tires Group Parts Diagram
27" Snow Thrower, 11.5hp

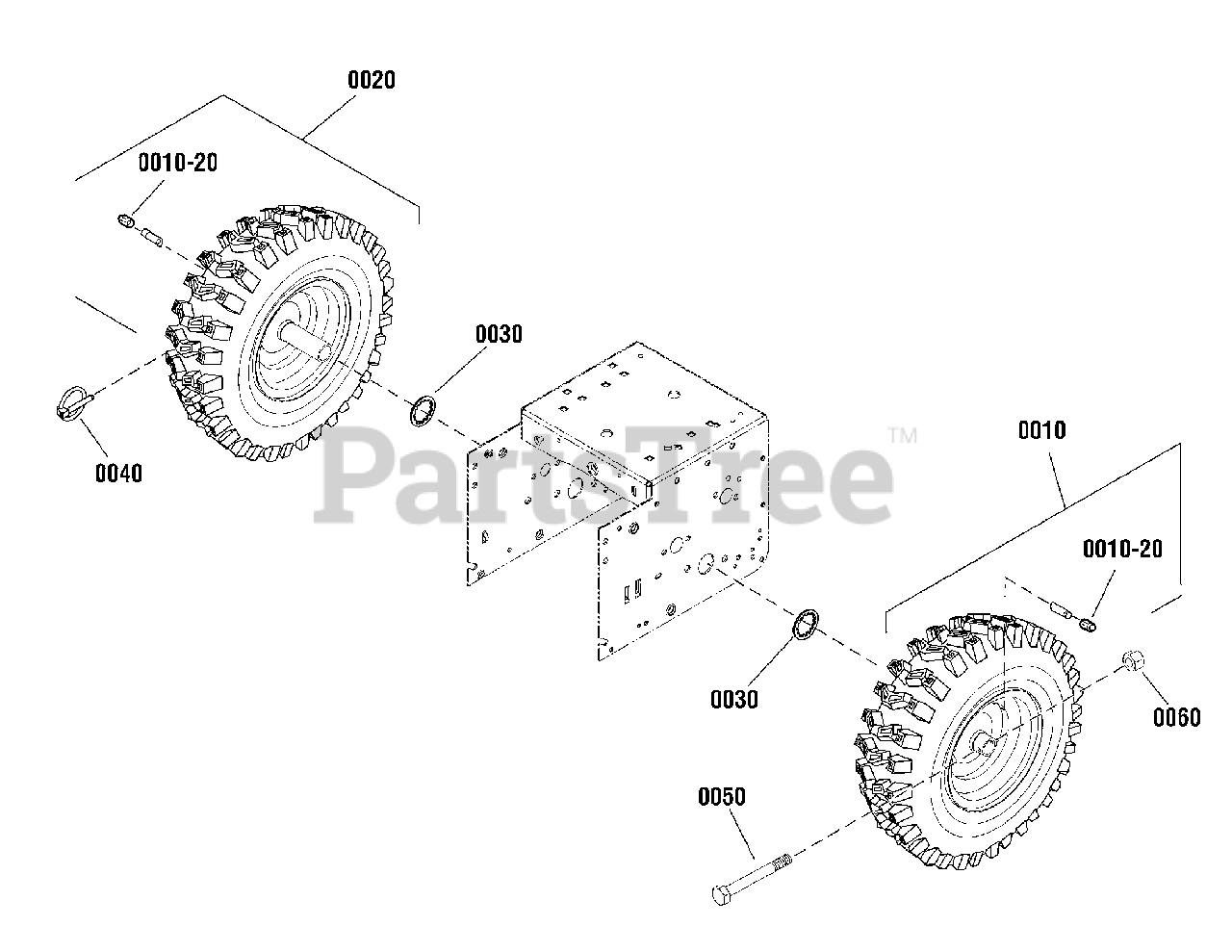

Wheels & Tires Group Parts Diagram
Snapper 1754243YP
WHEEL ASSEMBLY, 4.80-8, P2-578, LH
(Superseded to 770611)
Note: (Includes Ref. No, 0010-20)
$167.99
$
Usually ships in 2-12 days
$162.99
$
Usually ships in 2-12 days
$8.49
$
In Stock, only 2 left!
Snapper 1657528SM
RETAINING RING, Self Lock, 3/4
$4.49
$
In Stock, Qty 16
Snapper 703226
PIN, Klik
$9.99
$
In Stock, only 2 left!
Snapper 577015MA
BOLT, Hex Head, 1/4-20 x 1-3/4, G5
$4.99
$
In Stock, only 2 left!
Snapper 703232
NUT, Nylock, 1/4-20
$4.49
$
In Stock, Qty 20+
