M 1227E (1696001) - Snapper 27" Snow Thrower, 11.5hp Chute & Rotation Group Parts Diagram

27" Snow Thrower, 11.5hp

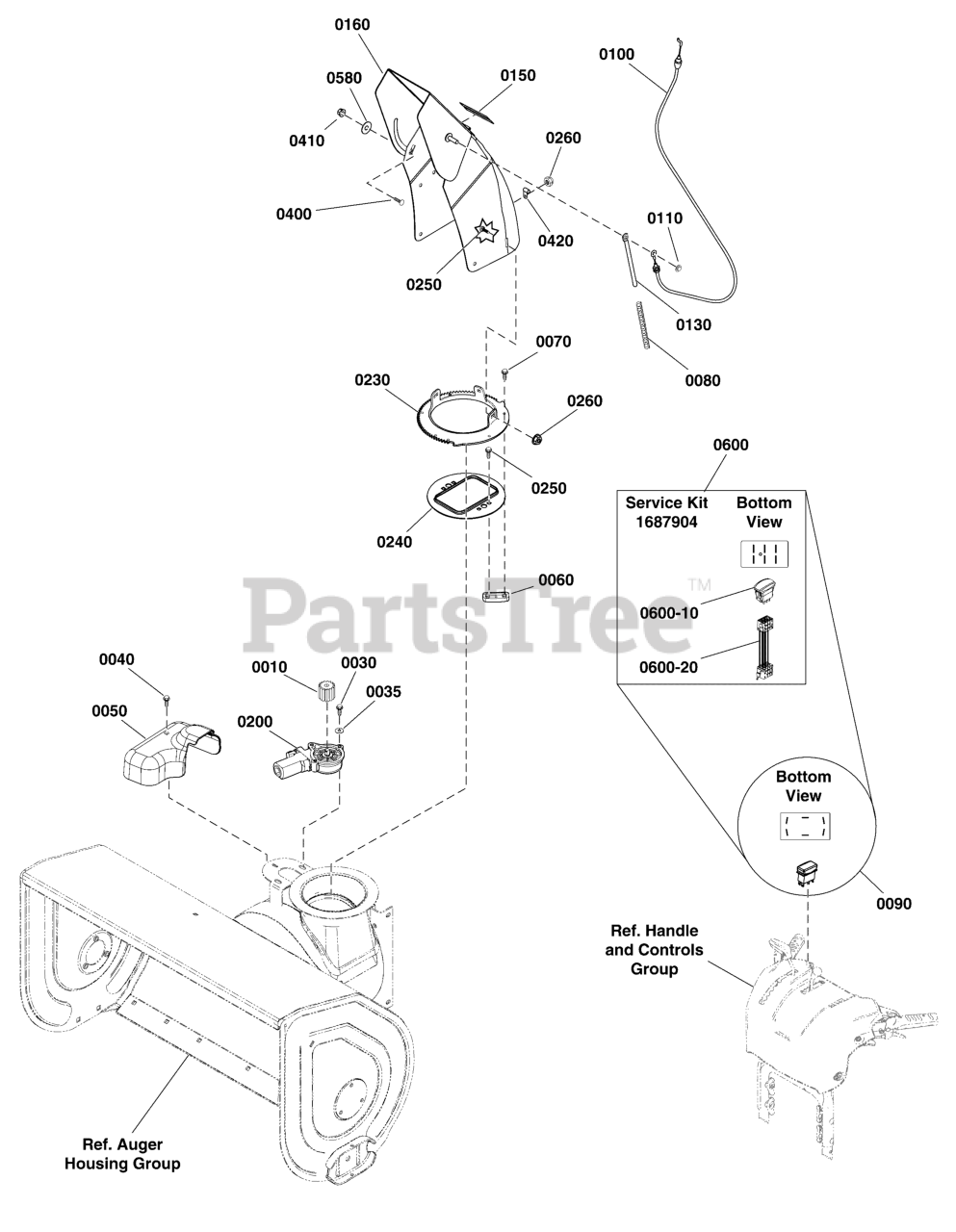

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967

PINION
(Superseded to 1728967SM)

$17.99

$

In Stock, only 4 left!

0

0030

Snapper 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Snapper 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 14

0

0040

Snapper 1925592

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Snapper 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 1734647

SPRING, Compression, 6 Inch
(Superseded to 1734647SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1752240

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0090.)

$82.99

$

In Stock, Qty 13

0

0100

Snapper 1750623

CABLE, Delfector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 5

0

0110

Snapper 1932718

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0130

Snapper 1734708A

ROD, Spring Guide, 5-7/8
(Superseded to 1734708ASM)

$13.99

$

Usually ships in 2-12 days

0

0150

Snapper 1738340

DECAL, Chute Hinge
(Superseded to 1738340YP)

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 1737443D

CHUTE
(Superseded to 1737443DYP)

$173.99

$

In Stock, only 1 left!

0

0200

Snapper 1739309

MOTOR, Spout Rotator
(Superseded to 708703)

$86.99

$

In Stock, Qty 7

0

0230

Snapper 1737465A

GEAR, Short, Steel Chute
(Superseded to 1737465AYP)

$39.99

$

Usually ships in 2-12 days

0

0240

Snapper 1737411

ADAPTER, Chute Ring
(Superseded to 1737411YP)

$19.99

$

Usually ships in 2-12 days

0

0250

Snapper 720386

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

0260

Snapper 1960685

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0400

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0410

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0420

Snapper 1739331

CLIP, Cable
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days

0

0580

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 2 left!

0

0600

Snapper 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

Note: (Used Before Serial No. 2017430819) (Order 0600-10 When Bottom View of Switch Terminal Pattern Matches 0600.)

$82.99

$

In Stock, Qty 13

0

0600-10

Snapper 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$46.99

$

In Stock, Qty 6

0

0600-20

Snapper 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$45.99

$

In Stock, only 1 left!

0
