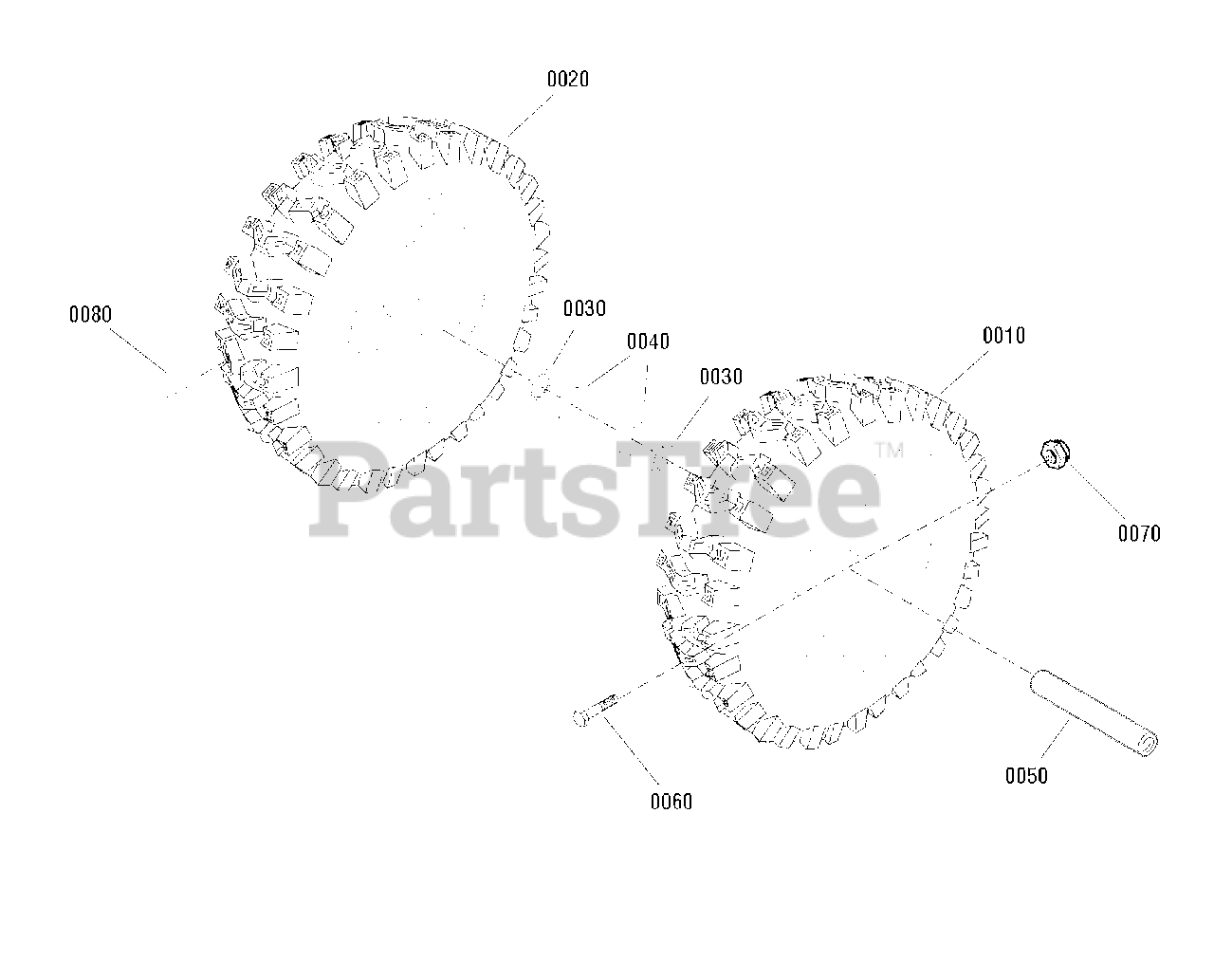

M 1227E (1695908) - Snapper 27" Snow Thrower, 11.5hp Wheel Group Parts Diagram

27" Snow Thrower, 11.5hp

Wheel Group Parts Diagram

  • Title
0010

Snapper 1736779

WHEEL ASSEMBLY, 8X4.8 P2-539, Left
(Superseded to 1736779YP)

$256.99

$

In Stock, only 1 left!

0

--

Snapper 7012234

VALVE, Stem & Cap (Not shown)
(Superseded to 7012234SM)

Note: or 2172353

$6.49

$

Usually ships in 2-12 days

0

--

Snapper 2164247

TUBE, Tire 16 x 6 1/2-8 (Not shown)
(Superseded to 2164247SM)

$40.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736778

WHEEL ASSEMBLY, 8X4.8 P2-539, Right
(Superseded to 1736778YP)

$213.99

$

Usually ships in 2-12 days

0

0030

Snapper 1657528

RETAINING RING
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 725394

WASHER, Flat, 3/4
(Superseded to 712120MA)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 722102

BUSHING, Wheel
(Superseded to 1501138MA)

$

$

Not available

0060

Snapper 724545

BOLT, HEX, 1/4-20 x 3/4, G5
(Superseded to 577015MA)

$4.99

$

In Stock, only 3 left!

0

0070

Snapper 722400

NUT, Hex, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 725431

PIN, Klik
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!
